High-Temperature Aramid Filtration Media

High Temperature Aramid Scrimless Filter Bag

Scrimless aramid filter bags built around a uniform 3D micro-pore matrix — engineered for continuous 210°C operation with 230°C peak resistance, low running resistance, and ultra-low emission performance in high-heat, abrasive, and chemically demanding baghouses.

View Compatible Valve SizesRequest a Quote

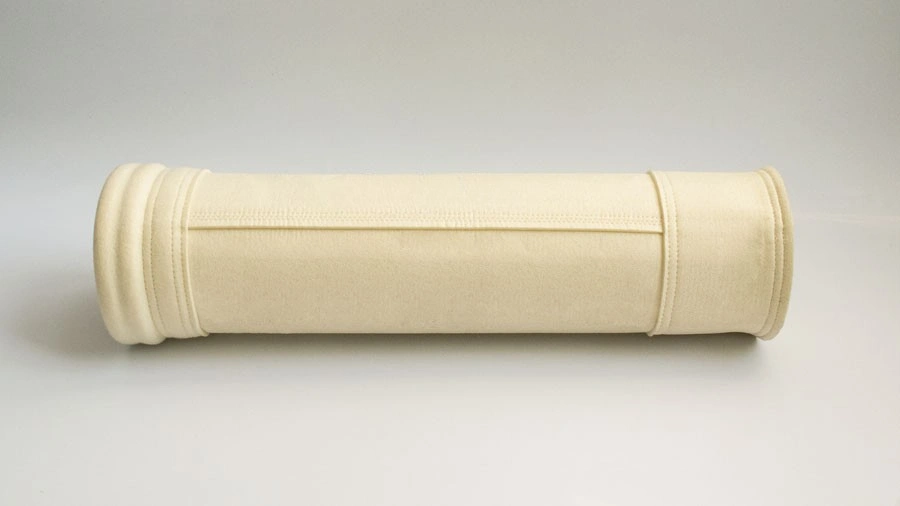

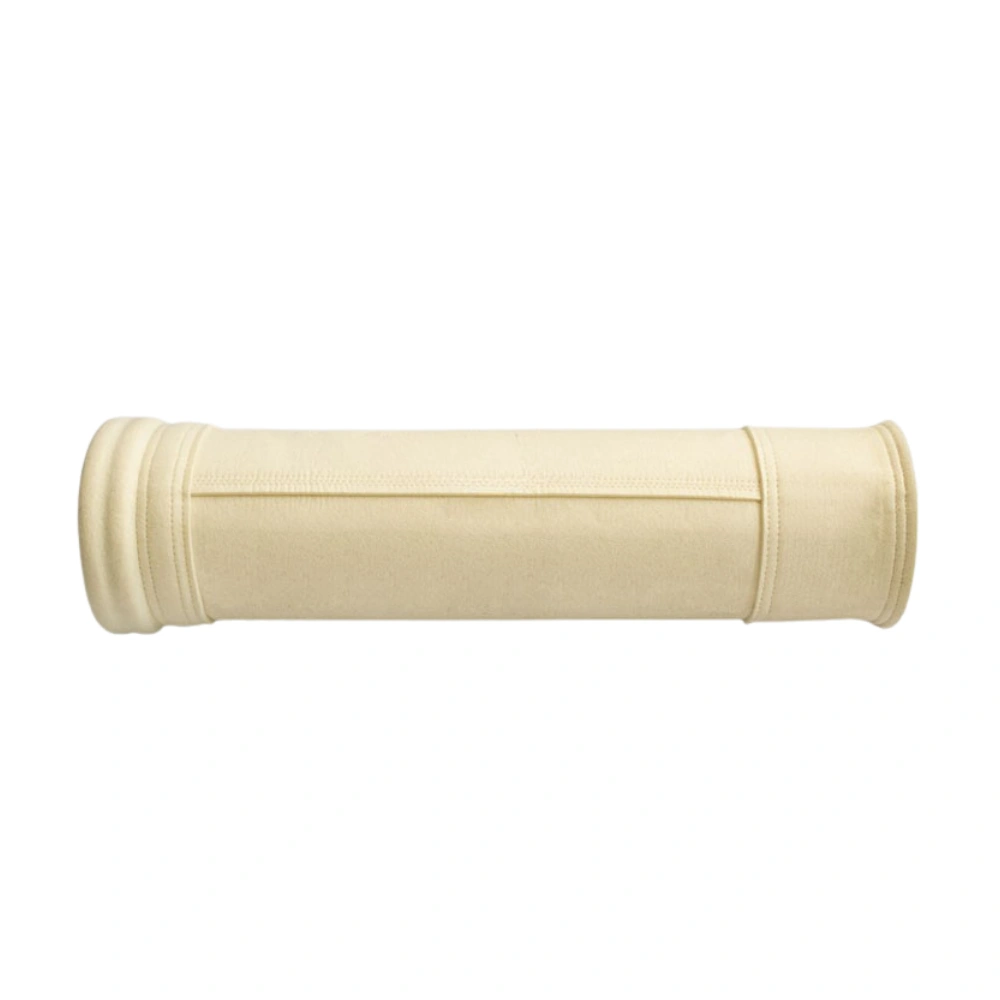

Xiechang® high temperature aramid scrimless filter bag

Technical Parameters

Core operating specification.

Continuous Operating Temp210°C
Peak Surge Temp230°C
Emission PerformanceUltra-low, via uniform micro-pore matrix
Running ResistanceLow, from evenly distributed 3D pore structure
Chemical StabilityStrong oxidation and hydrolysis resistance
Mechanical DurabilityHigh abrasion resistance for high-impact dust loading

Full Model Range

Standard model and size range.

Typical standard configurations shown below. Engineered to be fully compatible with system designs using ASCO™ and Goyen™ pulse jet valves.

ModelMaterialWeight (g/m²)Diameter × Length (mm)Max Continuous Temp
XC-AR-130x2450Aramid Scrimless Needle Felt500–550Ø130 × 2450210 °C (surge 230 °C)
XC-AR-130x3050Aramid Scrimless Needle Felt500–550Ø130 × 3050210 °C (surge 230 °C)
XC-AR-152x3000Aramid Scrimless Needle Felt500–550Ø152 × 3000210 °C (surge 230 °C)
XC-AR-160x4000Aramid Scrimless Needle Felt500–550Ø160 × 4000210 °C (surge 230 °C)
XC-AR-160x6000Aramid Scrimless Needle Felt500–550Ø160 × 6000210 °C (surge 230 °C)
Any size, any spec — 100% customized to your system.Request custom sizes →

Product Standards

Engineered for sustained high-temperature baghouses.

Filtration DutyHigh-temperature industrial dust and fume control
Application IndustriesAsphalt mixing plants, cement, steel, metallurgy, and chemical processing
Pulse Valve CompatibilityASCO SCG353A0xx and Goyen CA series
Fiber CompositionAramid fiber, scrimless construction

Knowledge Base

Practical answers for this product.

View All
Product Q&A

What makes the scrimless aramid construction different for Xiechang® High Temperature Aramid Scrimless Filter Bag?

The fiber composite is built as a single 3D matrix rather than layered around a separate scrim backing, combining heat resistance, chemical stability, and mechanical strength directly into the media structure.

xiechang-high-temperature-aramid-scrimless-filter-bag-manufacturerXiechang® High Temperature Aramid Scrimless Filter Bag ManufacturerHigh-Temperature Aramid Filtration Media
Product Q&A

How does Xiechang® High Temperature Aramid Scrimless Filter Bag keep emissions low?

An evenly distributed micro-pore structure gives the media a uniform, fine pore size, which supports high-precision particle capture and helps hold emission performance to ultra-low levels.

xiechang-high-temperature-aramid-scrimless-filter-bag-manufacturerXiechang® High Temperature Aramid Scrimless Filter Bag ManufacturerHigh-Temperature Aramid Filtration Media
Product Q&A

Does Xiechang® High Temperature Aramid Scrimless Filter Bag work with standard pulse valves?

Yes. The bag top is sized to match common ASCO SCG353A0xx and Goyen CA series pulse valves across 1″ to 3.5″ port sizes, so it drops into existing pulse-jet cleaning systems.

xiechang-high-temperature-aramid-scrimless-filter-bag-manufacturerXiechang® High Temperature Aramid Scrimless Filter Bag ManufacturerHigh-Temperature Aramid Filtration Media
Applications

What is Xiechang® High Temperature Aramid Scrimless Filter Bag Manufacturer used for?

Scrimless aramid filter bags built around a uniform 3D micro-pore matrix — engineered for continuous 210°C operation with 230°C peak resistance, low running resistance, and ultra-low emission performance in high-heat...

xiechang-high-temperature-aramid-scrimless-filter-bag-manufacturerXiechang® High Temperature Aramid Scrimless Filter Bag ManufacturerHigh-Temperature Aramid Filtration Media
Applications

Where is Xiechang® High Temperature Aramid Scrimless Filter Bag typically used?

Asphalt mixing plants, cement production, steel and metallurgy, and chemical processing — environments combining high temperature, dry conditions, and abrasive dust loading.

xiechang-high-temperature-aramid-scrimless-filter-bag-manufacturerXiechang® High Temperature Aramid Scrimless Filter Bag ManufacturerHigh-Temperature Aramid Filtration Media
Advantages

What are the key advantages of Xiechang® High Temperature Aramid Scrimless Filter Bag Manufacturer?

Engineered for sustained high-temperature baghouses.
