High-Performance Pleated Filter Element

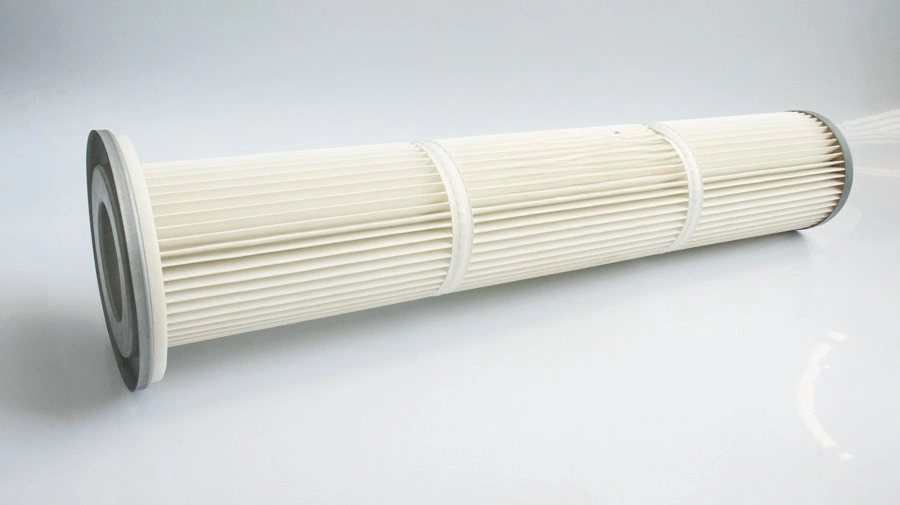

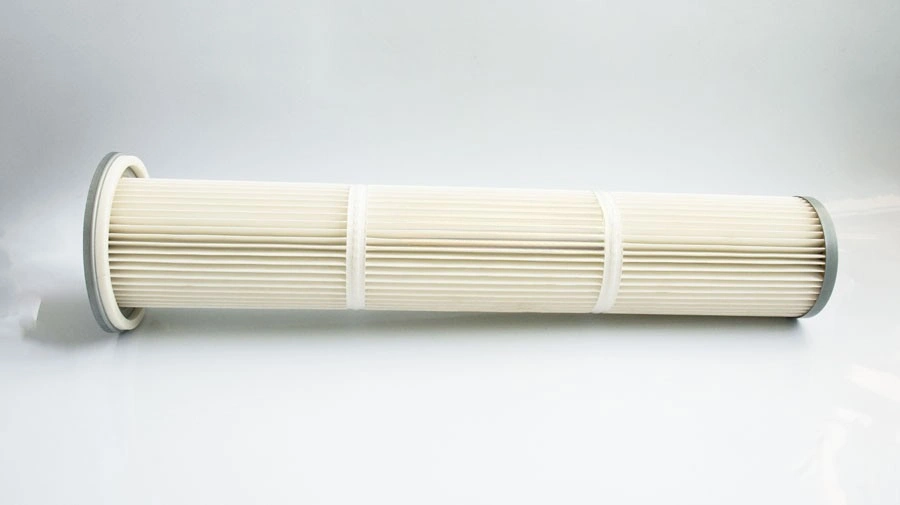

Pleated Baghouse Cartridge
Pleated baghouse cartridges increase system filtration area by 50-100% without modifying the dust collector tank. The optimized pleat geometry improves PM2.5 and PM10 capture, lowers differential pressure, extends pulse-cleaning intervals, and enables smaller collector footprints for new systems.
Technical Parameters
Core operating specification.
Area Expansion+50% to 100% without baghouse tank modification
Emission TargetAdvanced PM2.5 and PM10 ultra-fine dust capture
ResistanceLower operating differential pressure and reduced fan energy consumption
FootprintSupports compact baghouse enclosure volume for new dust collector systems
Pulse CleaningExtended pulse-cleaning intervals with stabilized pleat structure
Full Model Range
Standard model and size range.
Typical standard configurations shown below. Engineered to be fully compatible with system designs using ASCO™ and Goyen™ pulse jet valves.
| Model | Material | Weight (g/m²) | Diameter × Length (mm) | Max Continuous Temp |
|---|---|---|---|---|
| XC-PLC-150x1000 | Pleated Polyester with PTFE Membrane | 250–300 | Ø150 × 1000 | Per media selection |
| XC-PLC-150x1200 | Pleated Polyester with PTFE Membrane | 250–300 | Ø150 × 1200 | Per media selection |
| XC-PLC-152x1500 | Pleated Polyester with PTFE Membrane | 250–300 | Ø152 × 1500 | Per media selection |
| XC-PLC-160x2000 | Pleated Polyester with PTFE Membrane | 250–300 | Ø160 × 2000 | Per media selection |
| XC-PLC-325x660 | Pleated Polyester with PTFE Membrane | 250–300 | Ø325 × 660 | Per media selection |
Any size, any spec — 100% customized to your system.Request custom sizes → | ||||
Product Standards
Designed for higher airflow and compact dust collection.
Filtration DutyHeavy-duty industrial dust control, emissions mitigation, and process material recovery
Application IndustriesIron and steel smelting, cement and clinker kilns, building materials, chemical processing, and high-dust particulate industries
Retrofit CompatibilityIntegrates into existing tubesheet layouts without modification while increasing filtration area by 50-100%
Pleat StabilizationHeavy-duty outer bands and precision-molded end caps reduce pleat bunching under reverse-pulse cleaning
System OptimizationReduced flow resistance lowers fan energy demand and can reduce new collector enclosure footprint
