High-Efficiency Pleated Filtration Media

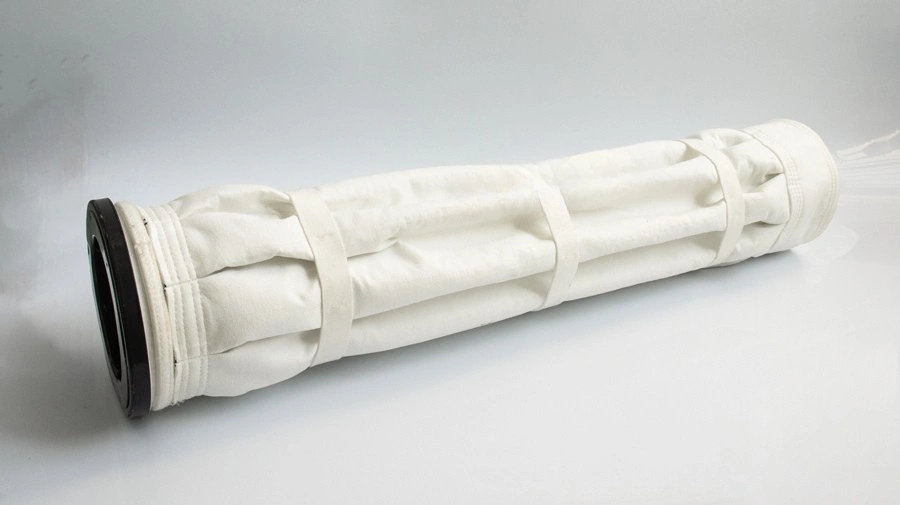

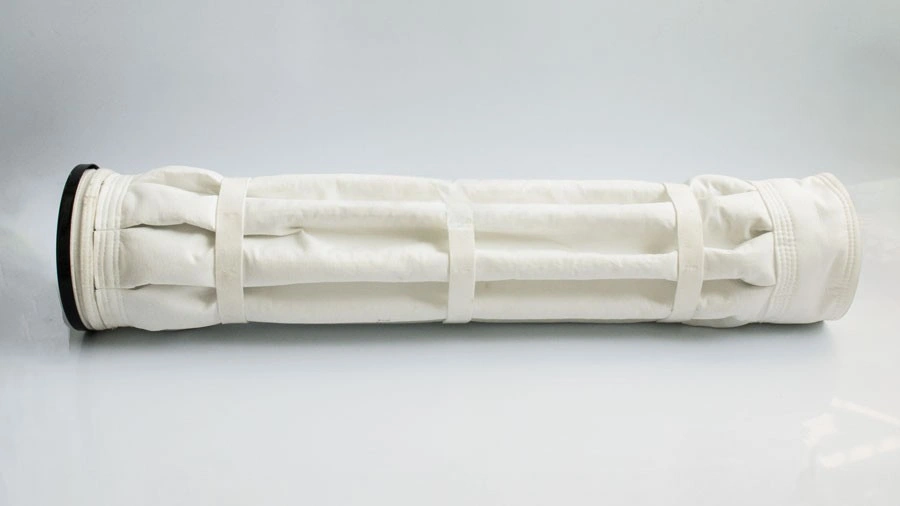

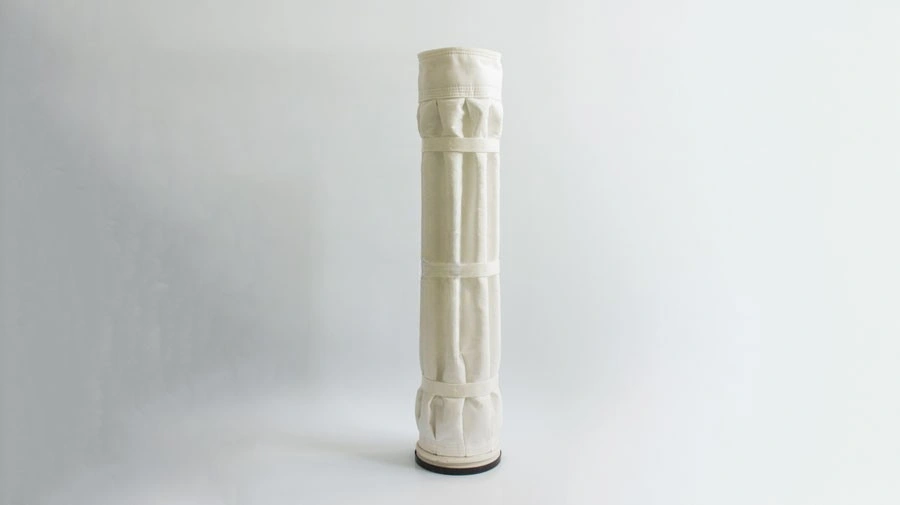

Baghouse Pleated Filter Bag
Pleated filter bags expand the effective filtration area of existing baghouses by 50-80% without modifying the collector casing. The pleated structure improves airflow capacity, targets PM2.5 and PM10 emissions, lowers differential pressure, and reduces mechanical wear between the bag and cage.
Technical Parameters
Core operating specification.
Filter Area+50% to 80% without baghouse casing modification
Emission TargetHigh-efficiency PM2.5 and PM10 particulate capture
ResistanceLow differential pressure and reduced energy consumption
DurabilityAnti-fatigue structure reduces bag-cage collision damage
Cleaning IntervalExtended pulse-cleaning intervals under comparable operating conditions
Full Model Range
Standard model and size range.
Typical standard configurations shown below. Engineered to be fully compatible with system designs using ASCO™ and Goyen™ pulse jet valves.
| Model | Material | Weight (g/m²) | Diameter × Length (mm) | Max Continuous Temp |
|---|---|---|---|---|
| XC-PLB-130x2450 | Pleated Polyester / Spunbond Media | 250–300 | Ø130 × 2450 | Per media selection |
| XC-PLB-130x3050 | Pleated Polyester / Spunbond Media | 250–300 | Ø130 × 3050 | Per media selection |
| XC-PLB-152x3000 | Pleated Polyester / Spunbond Media | 250–300 | Ø152 × 3000 | Per media selection |
| XC-PLB-160x4000 | Pleated Polyester / Spunbond Media | 250–300 | Ø160 × 4000 | Per media selection |
| XC-PLB-160x6000 | Pleated Polyester / Spunbond Media | 250–300 | Ø160 × 6000 | Per media selection |
Any size, any spec — 100% customized to your system.Request custom sizes → | ||||
Product Standards
Designed to upgrade existing baghouse capacity.
Filtration DutyHigh-efficiency industrial dedusting and atmospheric emissions control
Application IndustriesIron and steel mills, cement plants, construction materials, and chemical processing plants
Filter Area ExpansionIncreases effective filtration area by 50-80% without collector casing changes
Media CompatibilityMost standard raw filter media configurations can be processed into pleated filter bag designs
Pulse CleaningOptimized pleat spacing extends cleaning intervals and improves pulse-jet purging efficiency
