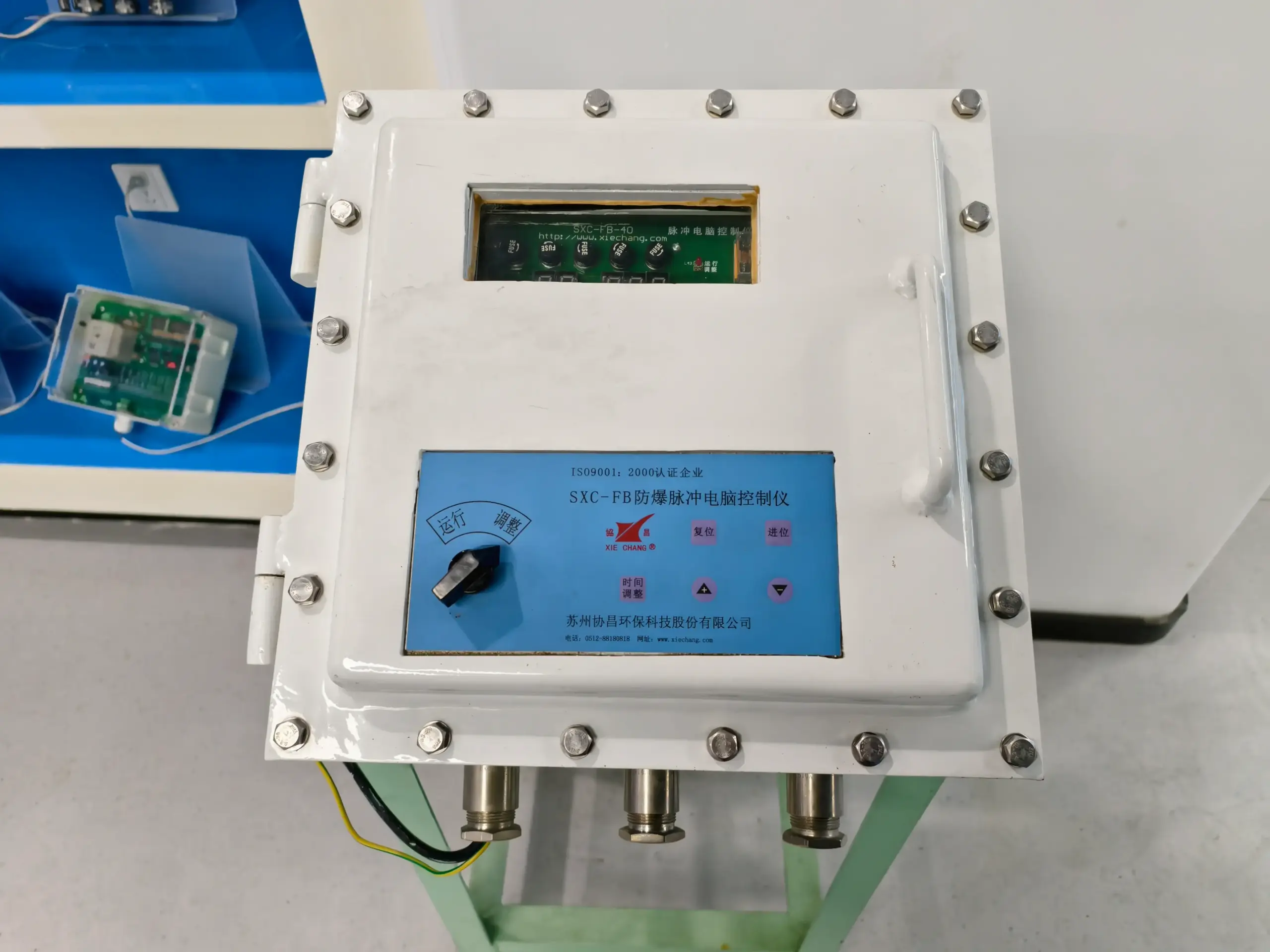

SXC-FB Series Explosion-Proof Pulse Jet Controller
An IP65 explosion-proof sequential controller for pulse jet cleaning in combustible-dust and explosive-gas environments, with up to 28 outputs, integrated differential-pressure sensing, and MODBUS connectivity.
Technical Parameters
Core operating specification.
BrandXiechang®
ModelSXC-FB
Housing MaterialDie-cast aluminum
DimensionsW230 × H310 × D120 mm
Protection LevelIP65
Power SupplyAC130–230V, 50Hz
Output VoltageAC185–220V / DC24V
Maximum Pulse Output28DO (NO), DC24V / 1.5A
Pulse Width10–1000 ms
Pulse Interval1–300 s
Pressure Range0–4 kPa
Operating Temperature−10°C to +50°C
Power Consumption230VA
Product Standards
Built for safe, connected baghouse cleaning control.

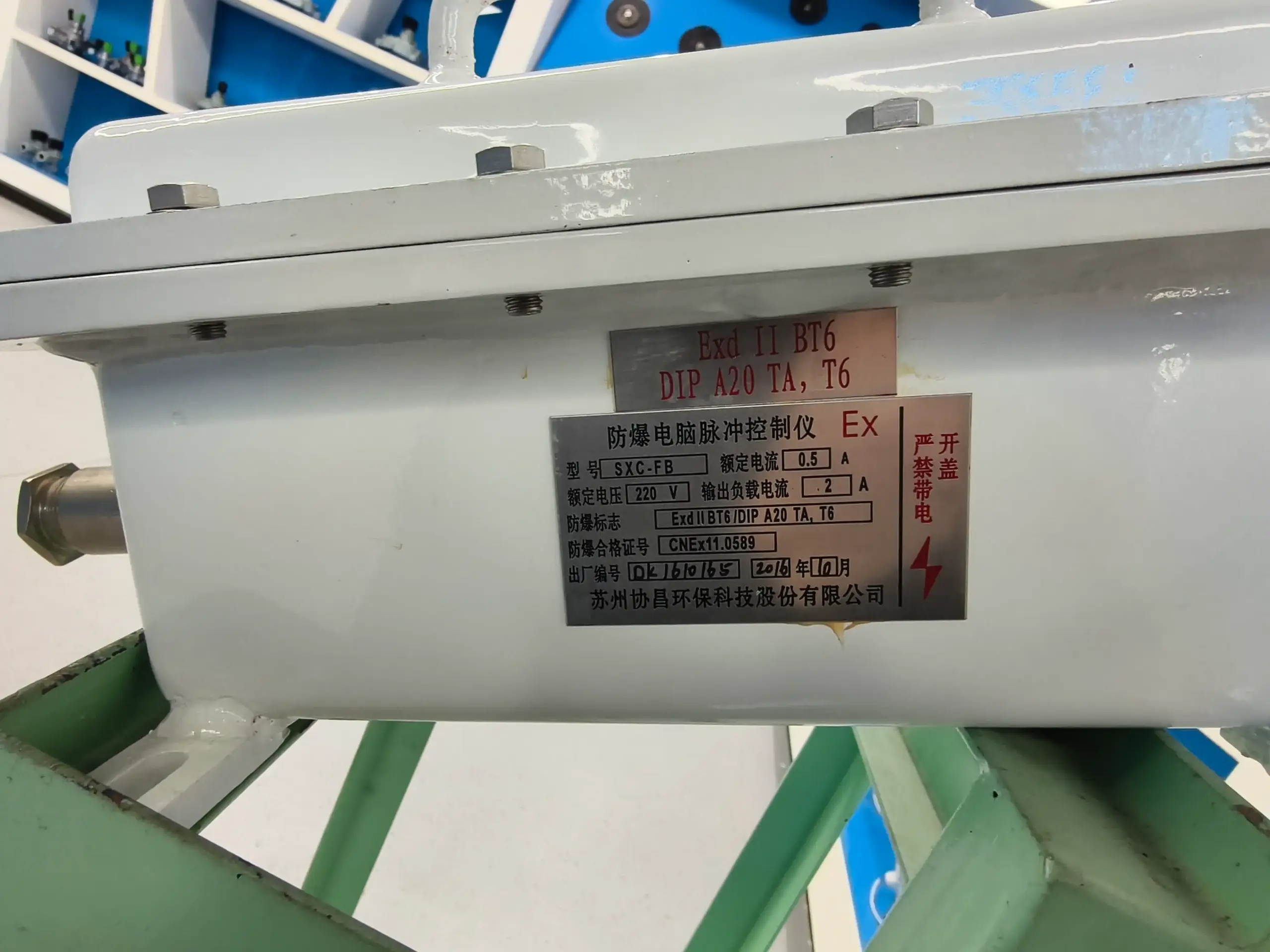

Explosion ProtectionDesigned for combustible-dust and explosive-gas environments
Pressure ControlIntegrated 1-channel differential-pressure sensor with dual pressure ports
RedundancyDynamic redundancy configurations support continued system reliability
CommunicationsDual communication ports supporting MODBUS RTU and MODBUS TCP
Cleaning LogicAdjustable pulse width and interval for sequential pulse-valve control
Product Videos
Related demonstrations and selection videos.
Knowledge Base
Practical answers for this product.
Product Q&A
How many pulse valves can it control for Xiechang® SXC-FB Series Explosion-Proof Pulse Jet Controller?
The controller provides up to 28 normally open pulse outputs, with DC24V output rated at 1.5A.
xiechang-sxc-fb-explosion-proof-pulse-controllerXiechang® SXC-FB Series Explosion-Proof Pulse Jet ControllerSXC-FB Series — Explosion-Proof Sequential Timer
Product Q&A
Which communication protocols does it support for Xiechang® SXC-FB Series Explosion-Proof Pulse Jet Controller?
Dual communication ports support both MODBUS RTU and MODBUS TCP for connection to plant monitoring and control systems.
xiechang-sxc-fb-explosion-proof-pulse-controllerXiechang® SXC-FB Series Explosion-Proof Pulse Jet ControllerSXC-FB Series — Explosion-Proof Sequential Timer
Product Q&A
Can pulse timing be adjusted (Xiechang® SXC-FB Series Explosion-Proof Pulse Jet Controller)?
Yes. Pulse width is adjustable from 10 to 1000 milliseconds, and pulse interval is adjustable from 1 to 300 seconds.
xiechang-sxc-fb-explosion-proof-pulse-controllerXiechang® SXC-FB Series Explosion-Proof Pulse Jet ControllerSXC-FB Series — Explosion-Proof Sequential Timer
Applications
What is Xiechang® SXC-FB Series Explosion-Proof Pulse Jet Controller used for?
An IP65 explosion-proof sequential controller for pulse jet cleaning in combustible-dust and explosive-gas environments, with up to 28 outputs, integrated differential-pressure sensing, and MODBUS connectivity.
xiechang-sxc-fb-explosion-proof-pulse-controllerXiechang® SXC-FB Series Explosion-Proof Pulse Jet ControllerSXC-FB Series — Explosion-Proof Sequential Timer
Applications
Where is the SXC-FB controller designed to operate?
It is designed for dust collection systems in hazardous environments containing combustible dust or explosive gases, including power generation, steel, and chemical processing plants.
xiechang-sxc-fb-explosion-proof-pulse-controllerXiechang® SXC-FB Series Explosion-Proof Pulse Jet ControllerSXC-FB Series — Explosion-Proof Sequential Timer
Advantages
What are the key advantages of Xiechang® SXC-FB Series Explosion-Proof Pulse Jet Controller?
Built for safe, connected baghouse cleaning control.
