SXC-SK01-C8A8-205L — Online/Offline Controller with Lift Valves

SXC-SK01-C8A8-205L Offline Pulse Controller

An online/offline pulse controller for compartmented baghouses: 20 pulse-valve channels plus 5 lift-valve channels, configurable wait–settle–idle offline sequencing, digital status display, and Modbus-RTU communication to your PLC or DCS.

View Technical Specs Request a Quote

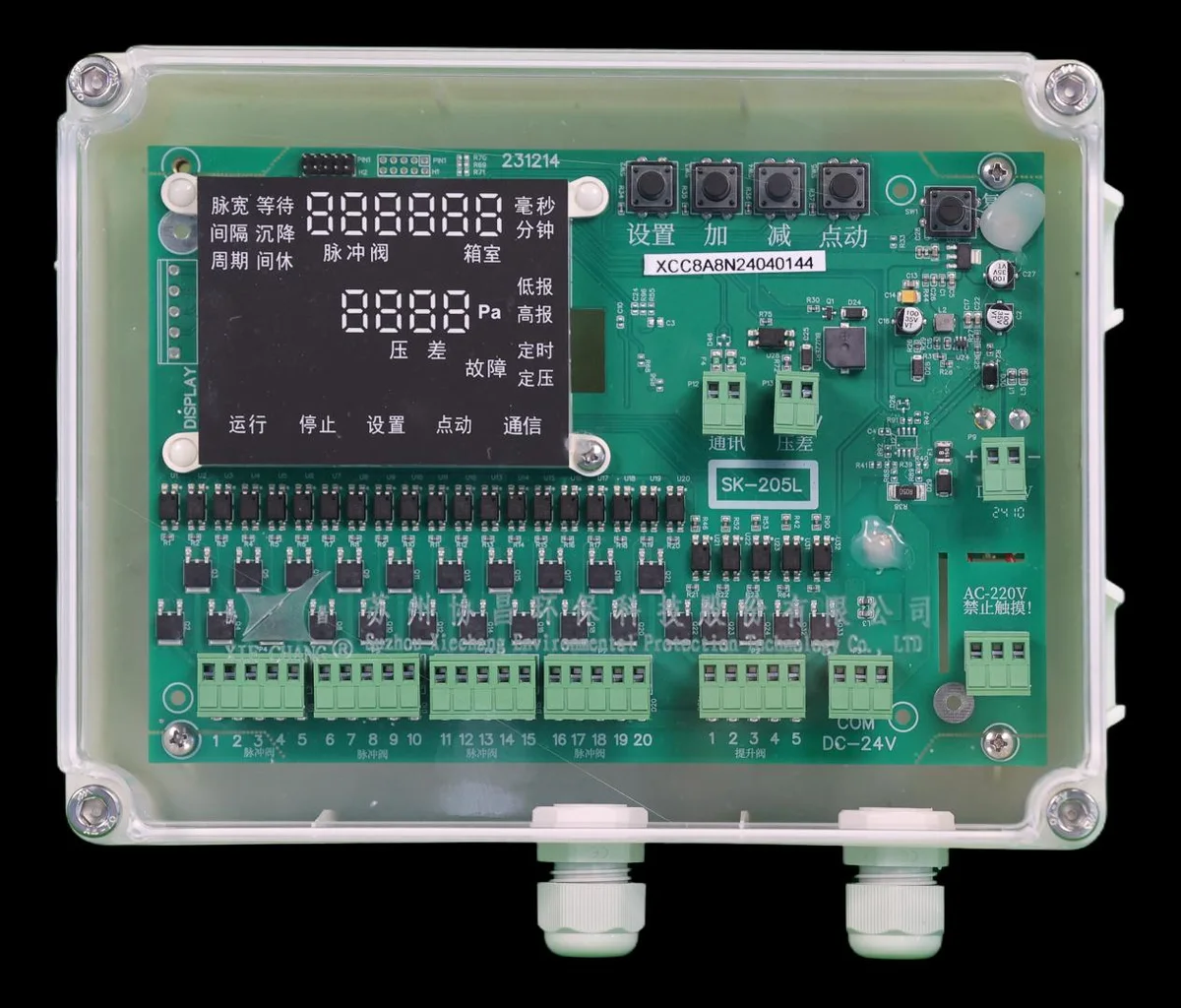

Xiechang® SXC-SK01-C8A8-205L offline pulse controller with 20 pulse-valve and 5 lift-valve channels

Technical Parameters

Core operating specification.

Pulse-Valve Channels20

Lift-Valve Channels5 (offline compartment valves)

Cleaning ModesOnline or offline, selectable

Input VoltageAC220V @50Hz or DC24V — either may be connected

Output VoltageDC24V

Output Current1.2A

Rated Power30W

CommunicationRS485 Modbus-RTU — remote control from host computer / PLC / DCS

Modbus Address / Baud RateAddress 0–127; baud 4800–115200 (default 9600)

Start Delay0–300 s

Pulse Width Range10–9999 ms in 1 ms steps (default 80 ms)

Pulse Interval Range1–600 s in 1 s steps (default 1 s)

Cycle Time Range0–9999 min (default 0 min)

Lift-Valve Wait Time0–60 s (default 8 s)

Lift-Valve Settle Time0–60 s (default 8 s)

Lift-Valve Idle Time0–999 s (default 10 s)

Trigger ModesTimed sequential / differential-pressure dry contact; remote dry-contact trigger

EnclosureTransparent hanging PC shell, 190 × 255 × 105 mm

Operating Environment−20°C to +60°C; relative humidity ≤85% (non-condensing)

Product Standards

Offline cleaning with lift valves, in one compact controller.

Online/Offline in OneSwitch between online cleaning and offline compartment cleaning without extra hardware

Lift-Valve SequencingDedicated wait, settle and idle timers coordinate the 5 lift-valve channels with pulsing

PLC/DCS ReadyModbus-RTU reports status and accepts parameter changes and remote start/stop

On-site Jog DebuggingFire valves one at a time from the panel during commissioning

Digital DisplaySegment display shows live pulse-valve channel, compartment and countdowns

Dual Power InputAC220V or DC24V supply on the same unit
