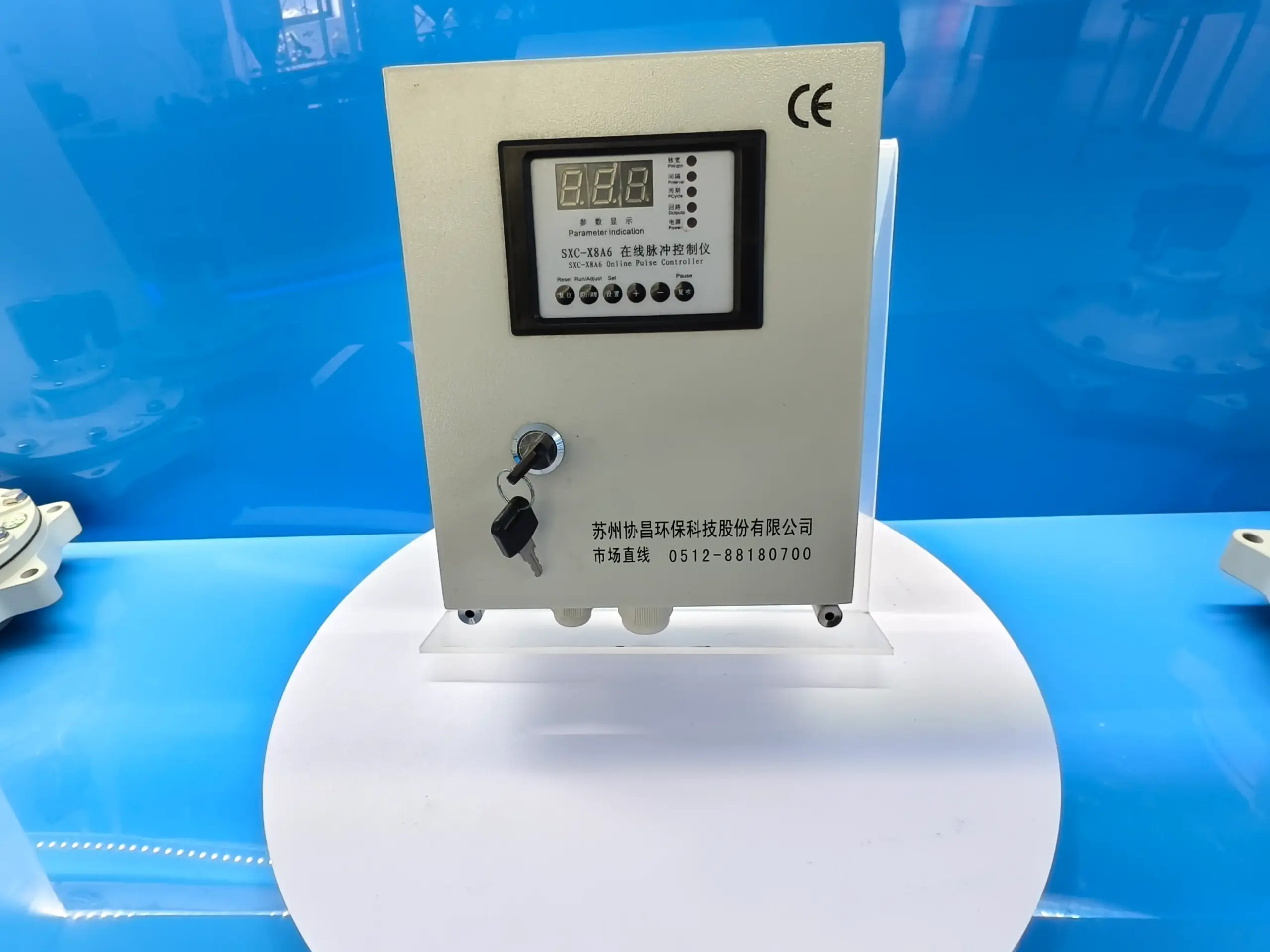

SXC-X8A6 — Carbon Steel Online Controller

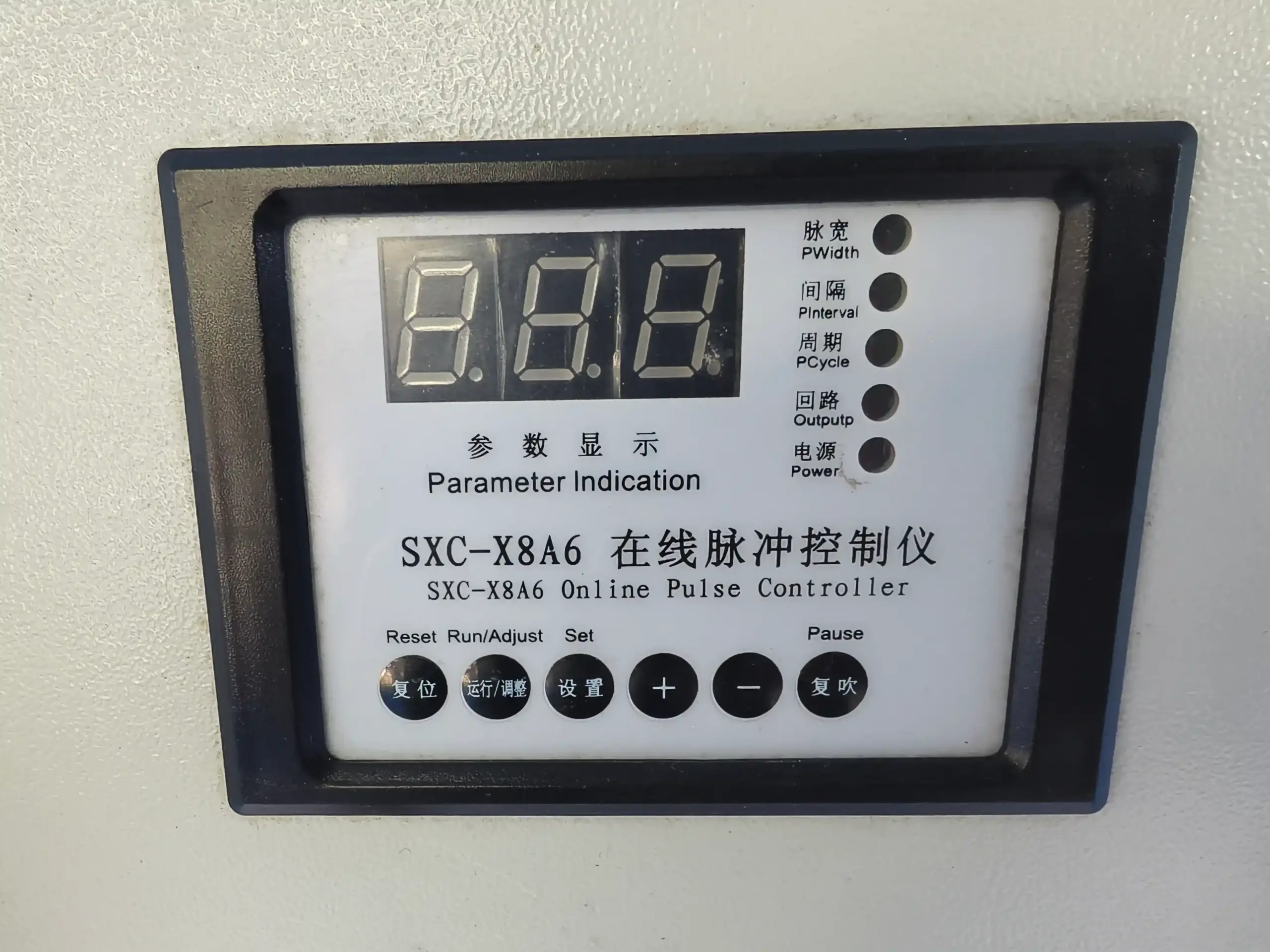

SXC-X8A6 Online Pulse Controller
A heavy-duty pulse-jet sequencer in a sealed carbon-steel hanging enclosure, engineered for stable 24/7 valve control and precise baghouse cleaning in dusty, damp, and electrically noisy industrial environments.
Technical Parameters
Core operating specification.
Output Configurations5 / 10 / 20 / 30 / 32 channels
Maximum Control CapacityUp to 32 pulse valves
Input VoltageAC220V, 50/60Hz
Output VoltageDC24V
Output Current1.2A
Rated Power30W

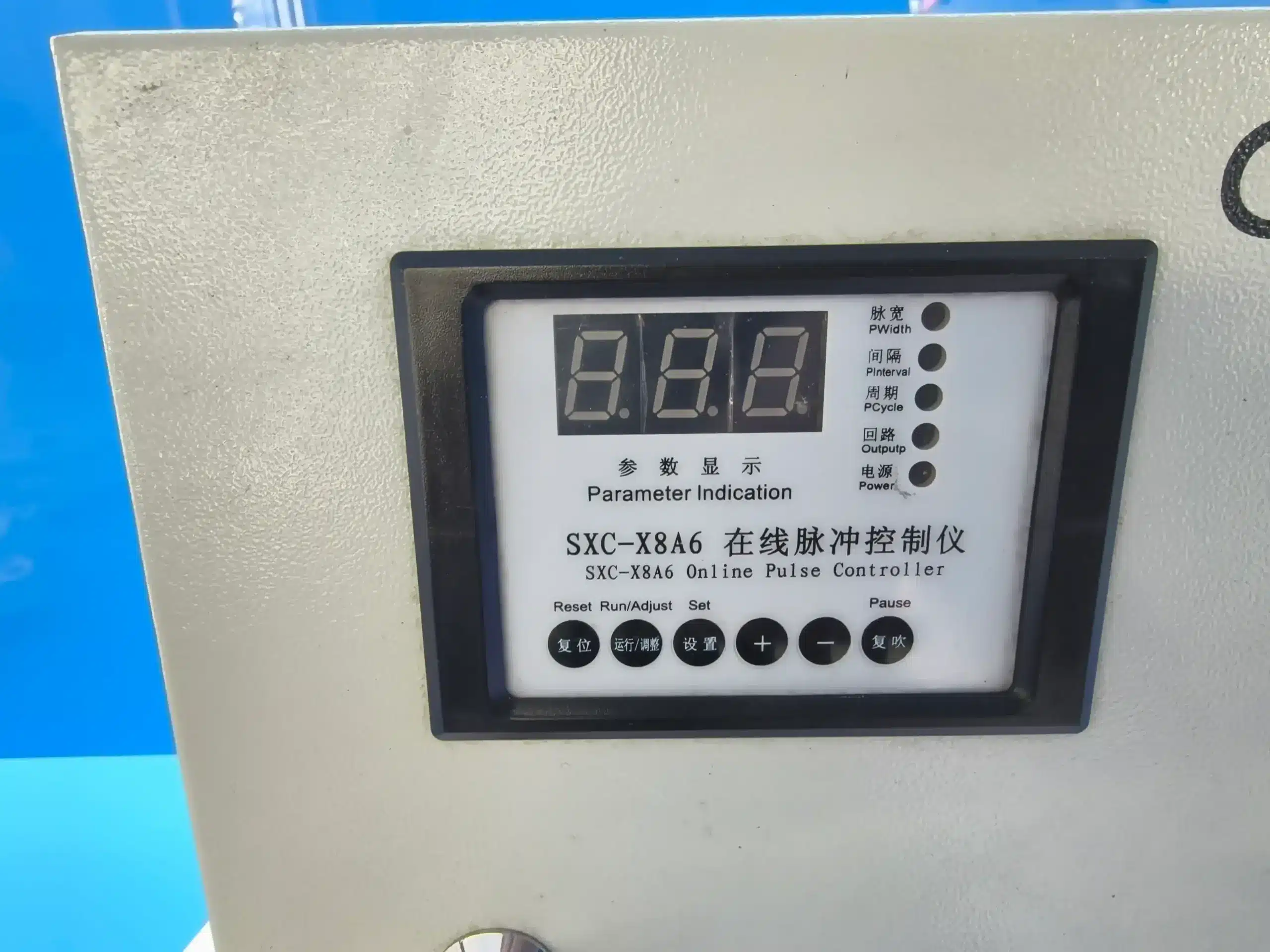

Pulse Width (On-time)20–2550 ms, adjustable
Pulse Interval (Off-time)1–255 s
Cycle Delay0–255 min
Operation ModeOnline sequential pulse-valve control

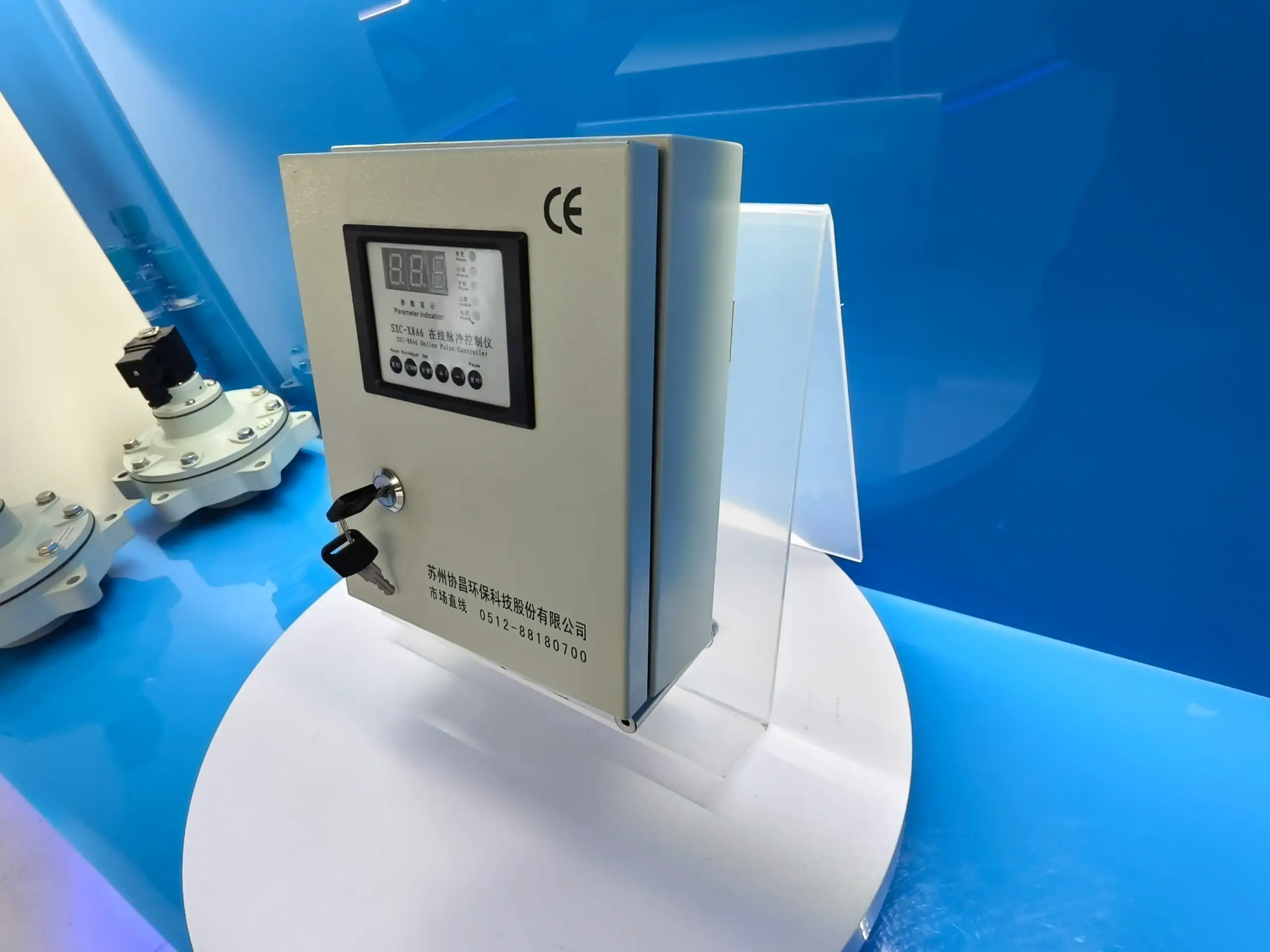

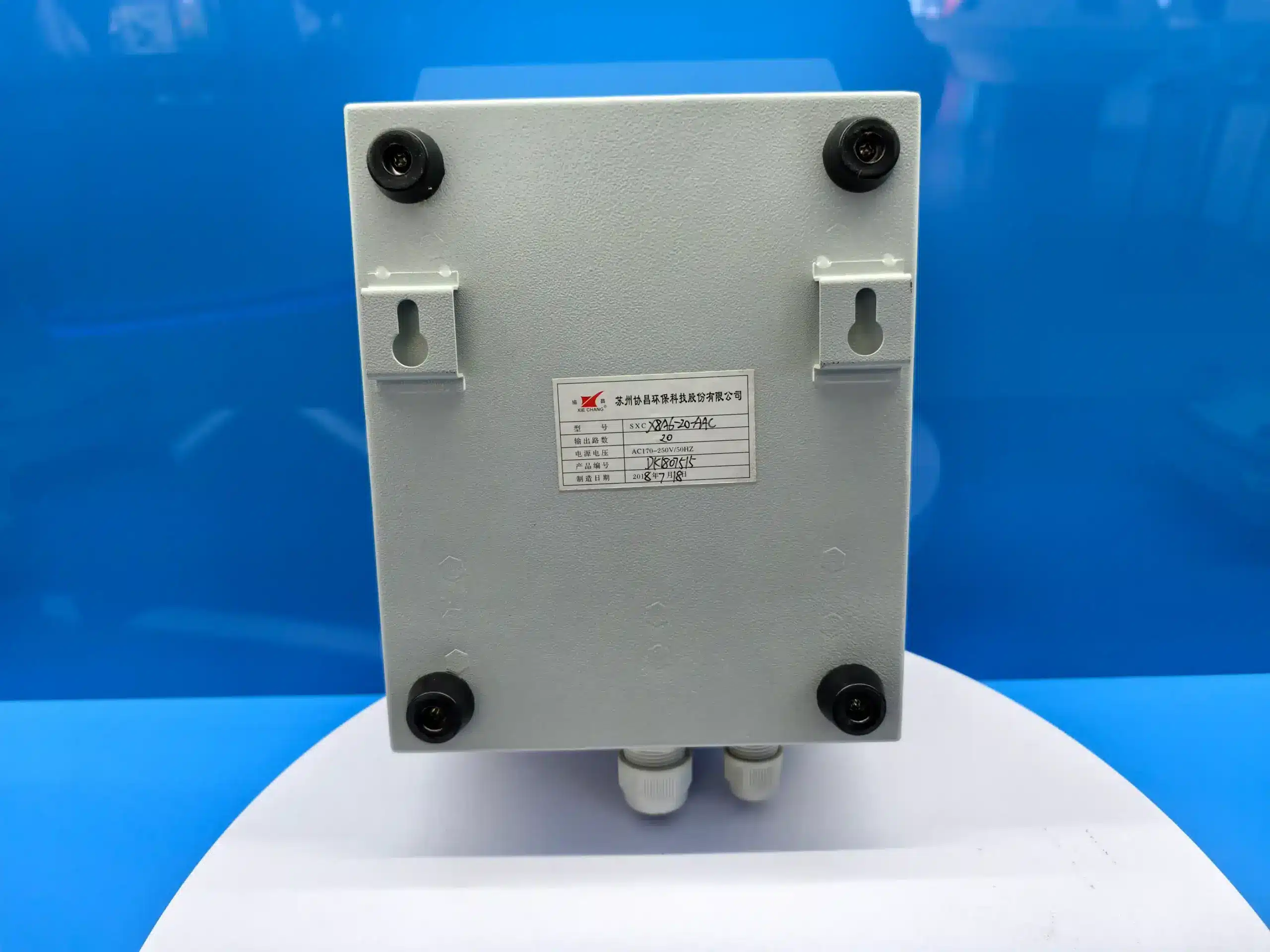

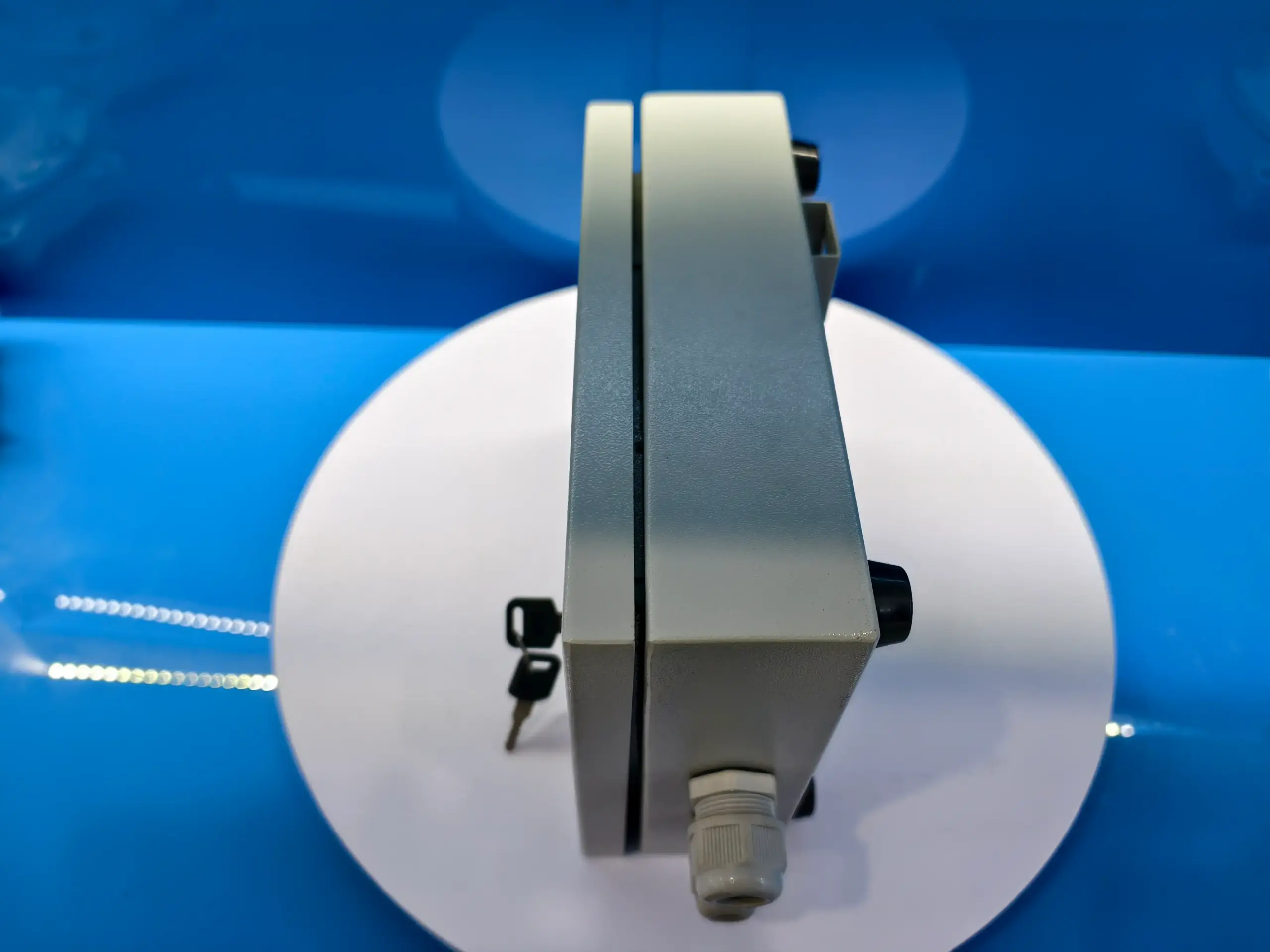

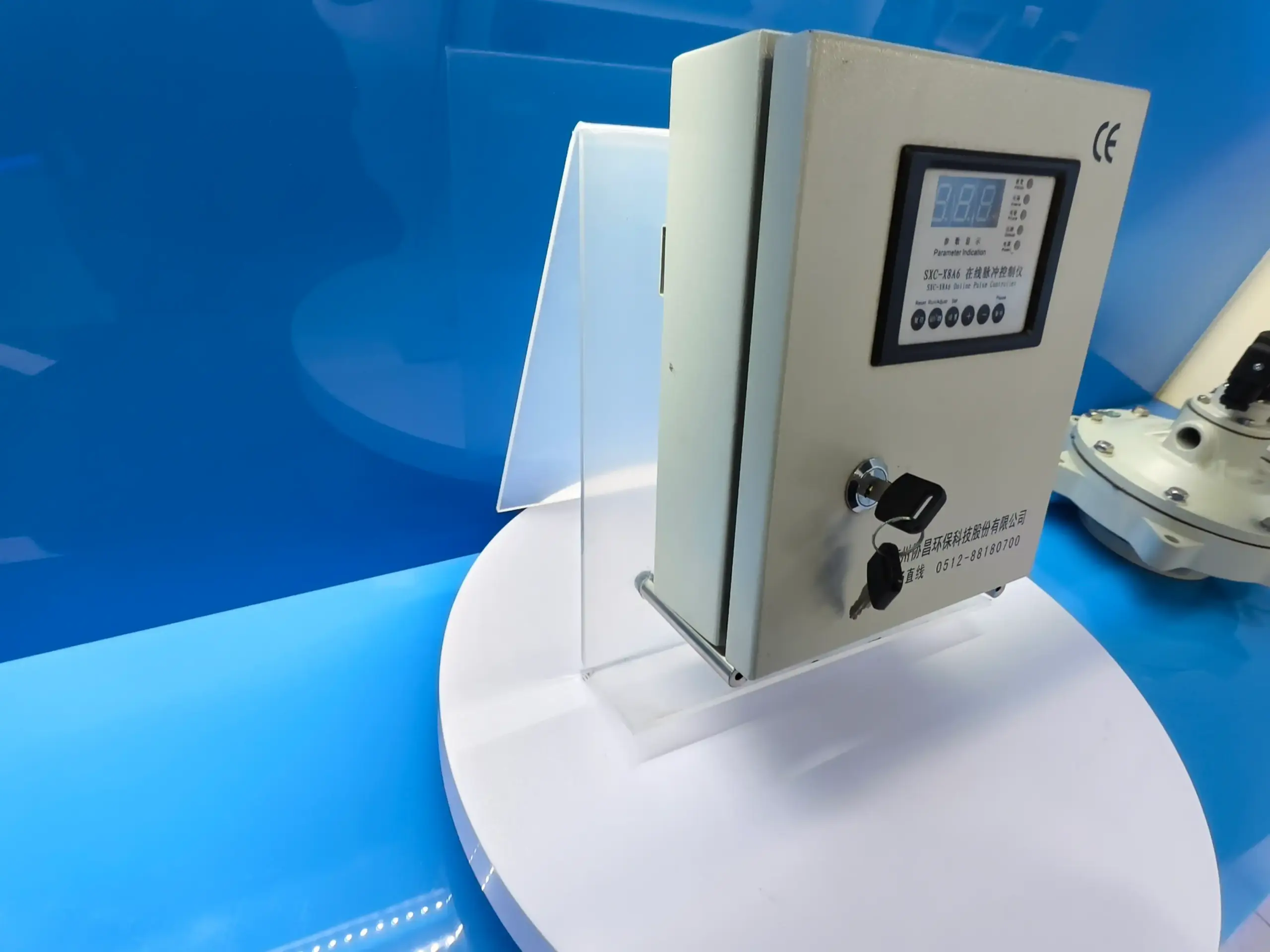

EnclosureSealed carbon-steel hanging shell
Product Standards
Metal-sealed control for harsh industrial environments.

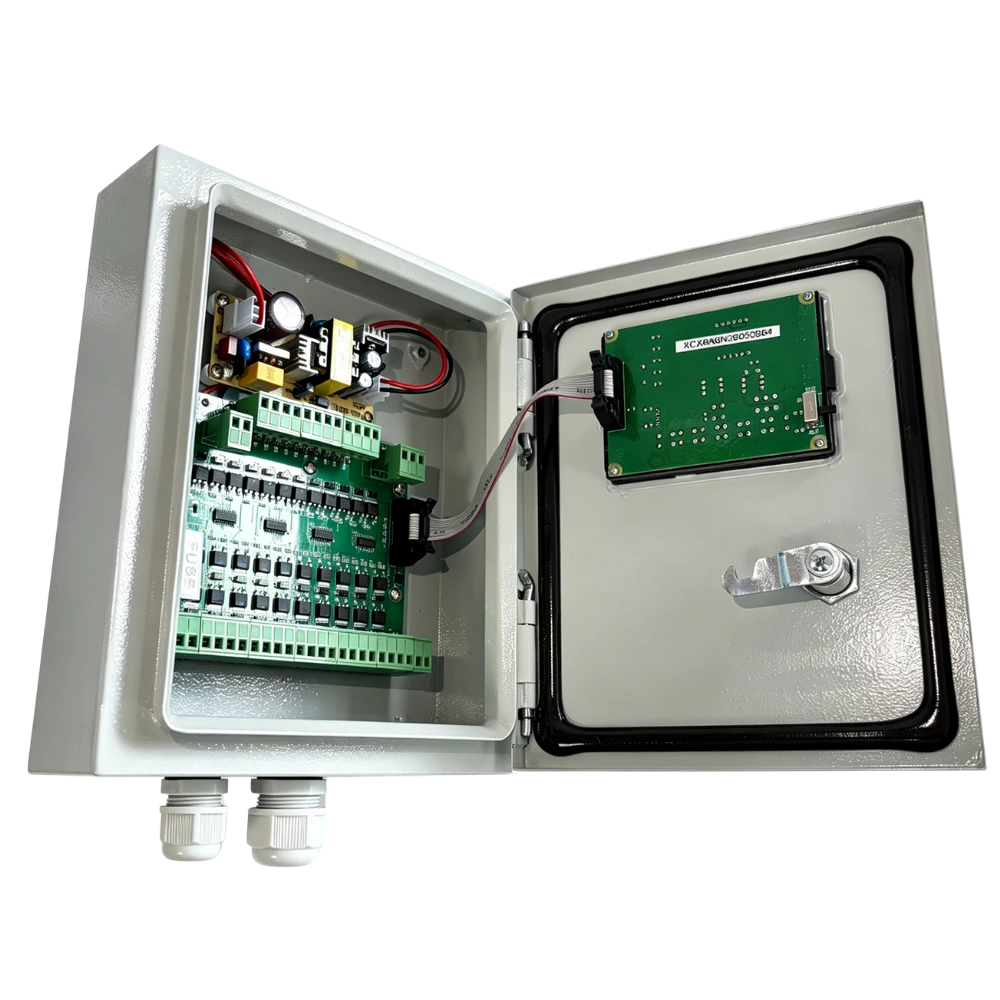

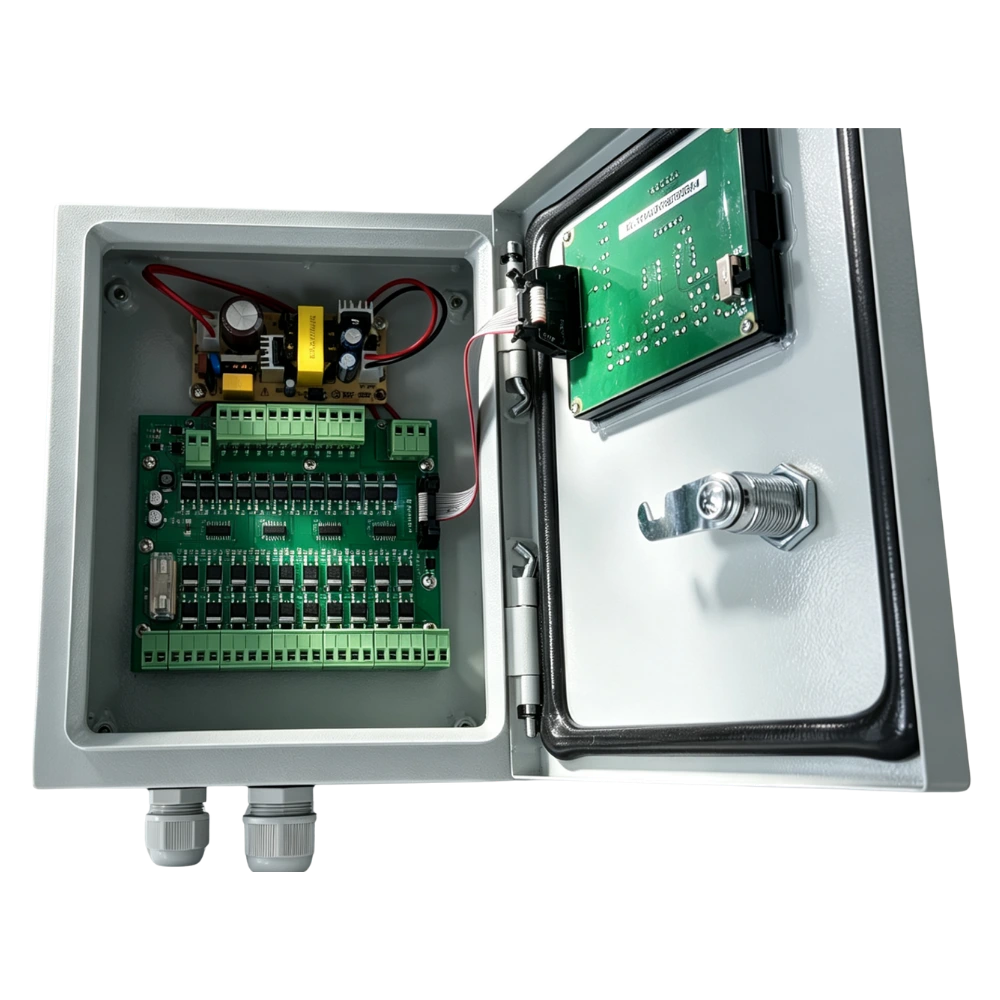

Industrial HousingThe carbon-steel enclosure protects internal components from dust ingress, moisture, and physical impact
Cleaning EfficiencyAdjustable pulse width and interval help reduce compressed-air waste and unnecessary filter-bag wear
EMI ResistanceAnti-interference control logic supports stable operation around high-frequency industrial electrical noise
Continuous DutyDesigned for automated 24/7 dust-management service in heavy industrial plants
Typical IndustriesCement, chemical processing, and power generation

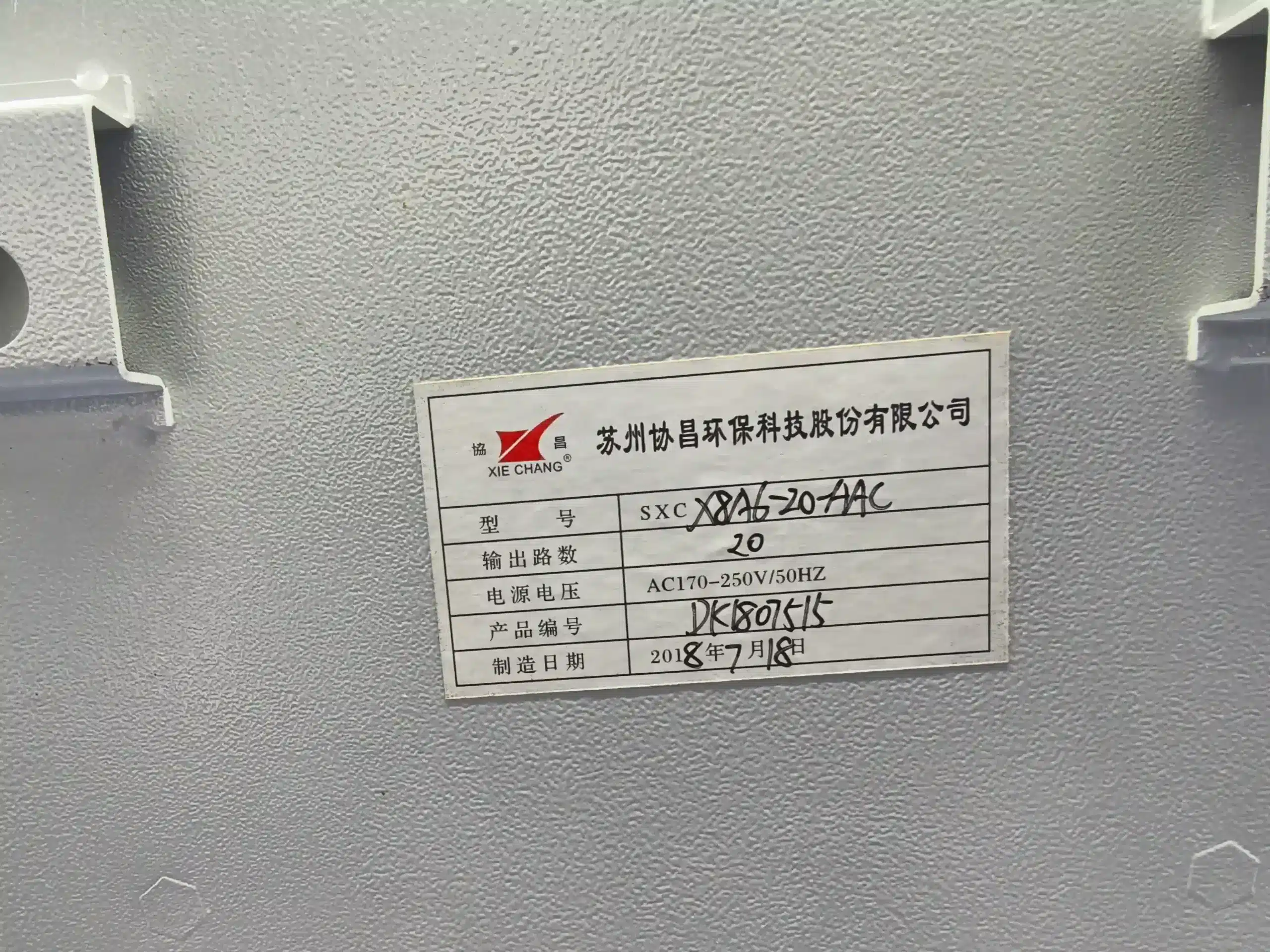

Model CodeSXC series · upgraded X generation · 8A online mode · 6 carbon-steel hanging shell
Product Videos
Related demonstrations and selection videos.
SXC-X8A6 online pulse controller
Knowledge Base
Practical answers for this product.
Product Q&A
How many pulse valves can the SXC-X8A6 control?
It is available with 5, 10, 20, 30, or 32 output stations and can control up to 32 pulse valves.
sxc-x8a6-online-pulse-controllerSXC-X8A6 Online Pulse ControllerSXC-X8A6 — Carbon Steel Online Controller
Product Q&A
What input and output does it use for SXC-X8A6 Online Pulse Controller?
The controller accepts AC220V at 50/60Hz and provides DC24V output rated at 1.2A, with 30W rated power.
sxc-x8a6-online-pulse-controllerSXC-X8A6 Online Pulse ControllerSXC-X8A6 — Carbon Steel Online Controller
Product Q&A
Which timing settings are adjustable for SXC-X8A6 Online Pulse Controller?
Pulse width is adjustable from 20 to 2550 milliseconds, pulse interval from 1 to 255 seconds, and cycle delay from 0 to 255 minutes.
sxc-x8a6-online-pulse-controllerSXC-X8A6 Online Pulse ControllerSXC-X8A6 — Carbon Steel Online Controller
Applications
What is SXC-X8A6 Online Pulse Controller used for?
A heavy-duty pulse-jet sequencer in a sealed carbon-steel hanging enclosure, engineered for stable 24/7 valve control and precise baghouse cleaning in dusty, damp, and electrically noisy industrial environments.
sxc-x8a6-online-pulse-controllerSXC-X8A6 Online Pulse ControllerSXC-X8A6 — Carbon Steel Online Controller
Applications
What makes the X8A6 suitable for harsh plants for SXC-X8A6 Online Pulse Controller?
Its sealed carbon-steel enclosure protects the electronics from dust, moisture, and impact, while anti-interference logic improves stability around industrial electrical noise.
sxc-x8a6-online-pulse-controllerSXC-X8A6 Online Pulse ControllerSXC-X8A6 — Carbon Steel Online Controller
Applications
Where is the SXC-X8A6 commonly used?
It is intended for continuous-duty baghouse cleaning in industries such as cement, chemical processing, and power generation.
