⚡ Xiechang® SXC-X8B2: Professional Die-Cast Pulse Jet Controller
Product Overview

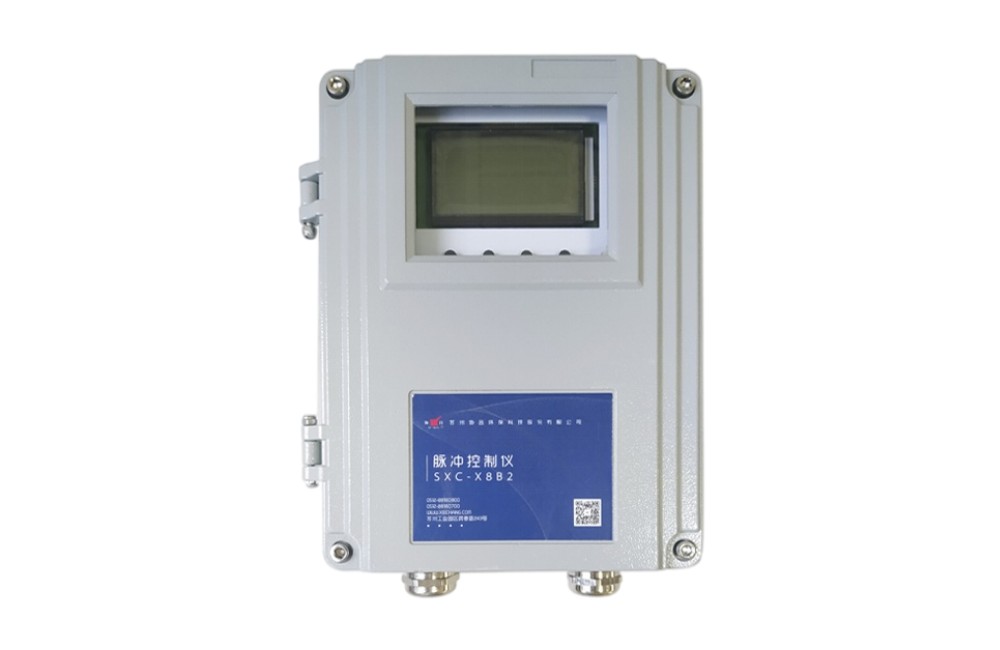

The Xiechang® SXC-X8B2 is a heavy-duty sequencer designed for high-capacity industrial baghouse systems. Distinguished by its die-cast aluminum alloy enclosure, this controller offers superior electromagnetic shielding and heat dissipation compared to standard plastic models.
With a robust 3.5A output current and 84W rated power, the SXC-X8B2 provides the necessary “punch” to actuate up to 40 solenoid valves reliably, ensuring crisp pulse cleaning even in large-scale filtration plants.
⚙️ Technical Specifications (Precision Data)
-
Control Capacity: Supports 1 to 40 pulse valve channels.
-
Electrical Performance:
-
Output Voltage: DC 24V.
-
Output Current: 3.5A (High-current drive for reliable valve opening).
-
Rated Power: 84W.
-
Input Voltage: AC 220V ($\pm 10\%$), 50Hz/60Hz.
-
-
Millisecond Timing Precision:
-
Pulse Width (On-time): 0.001s – 99999.999s (Accuracy: 1ms).
-
Pulse Interval (Off-time): 0.001s – 99999.999s.
-
Cycle Interval: 0.001s – 99999.999s.
-
-
Operational Control: Supports both Timing Control and Differential Pressure (DP) triggered cleaning modes.
-
Physical Build:
-
Housing Material: Rugged Die-cast Aluminum Alloy.
-
Dimensions: $250 \times 185 \times 88 \text{ mm}$.
-
Operating Environment: $-20^\circ\text{C}$ to $+60^\circ\text{C}$; Humidity $\le 85\%$ (Non-condensing).
-
Protection: Dust-tight and vibration-resistant construction.
-
🏗️ Industrial Application Scenarios
The SXC-X8B2 is the hardware of choice for mission-critical dust management:
-
🏭 Metal Smelting & Foundries: High-heat, high-interference environments requiring aluminum-shielded electronics.
-
🏗️ Cement & Mining: Large-scale baghouses for kilns, crushers, and material transport.
-
🔥 Thermal Power Plants: Heavy-duty ash handling and boiler flue gas cleaning.
-
🪵 Automated Woodworking: Large-scale centralized dust extraction systems for 24/7 production.
-
⚗️ Chemical & Mineral Processing: Precise material recovery where timing accuracy is critical for filter efficiency.
🌟 Why Engineers Specify the SXC-X8B2
-
Die-Cast Resilience: The aluminum alloy shell protects internal circuits from impact and electrical noise, far outlasting plastic alternatives in heavy industry.
-
High-Load Capability: A 3.5A output ensures that the controller won’t “bog down” when driving multiple large-diameter solenoid valves.
-
Extreme Accuracy: 1ms timing resolution allows for ultra-short pulse widths, significantly reducing compressed air waste.
-
Intelligent Cleaning: Use the Differential Pressure mode to trigger cleaning cycles only when needed, drastically extending the lifespan of your filter bags.
