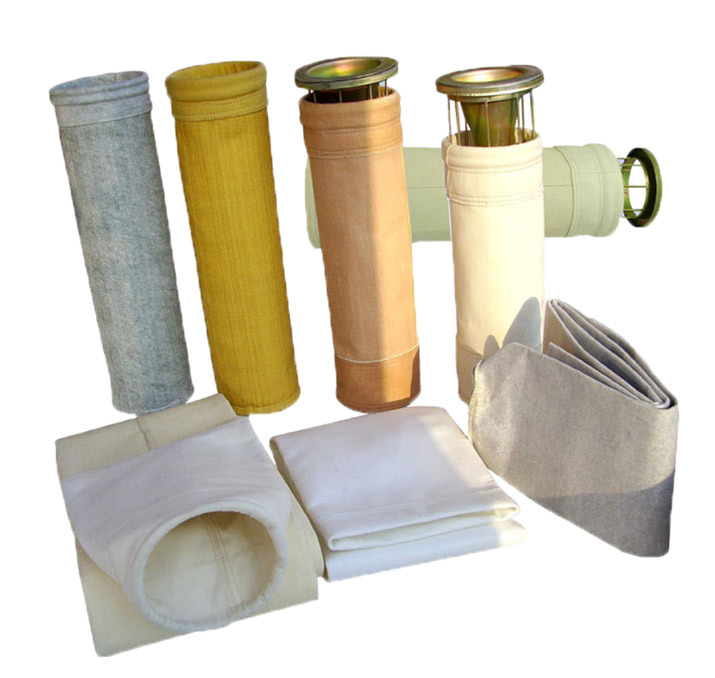

High-Efficiency Industrial Dust Collector Filter Bags | Xiechang®
Xiechang utilizes a specialized Japanese-imported three-needle and six-thread sewing unit to ensure maximum structural integrity for every filter bag. Our advanced manufacturing process allows us to produce a wide array of configurations, including round, trapezoidal, flat, and custom-profiled designs tailored to your specific baghouse requirements.
Technical Performance & Material Matrix
We offer a full spectrum of high-performance technical fibers engineered to meet diverse temperature and chemical requirements.
| Fiber Composition | Weight (g/m²) | Running Temp (°C) | Peak Temp (°C) | Acid Resistance |
| Polyester | 550 | 130 | 150 | Medial |
| Fiberglass | 750 | 250 | 280 | Fair |
| PTFE | 750-800 | 240 | 260 | Excellent |
| FMS | 800 | 200 | 280 | Excellent |
| P84 | 550 | 180 | 260 | Excellent |
| PPS | 550 | 160 | 190 | Excellent |
| Nomex | 450-600 | 200 | 240 | Fair |
-
PPS Filter Media: Optimized for a continuous running temperature of 160°C, withstanding peak surges up to 190°C. It features excellent resistance to acids, alkalis, and oxidation.
-
Nomex (Aramid): Sustains consistent performance at a running temperature of 200°C with a peak capacity of 240°C.
-
Polyester (PE): A cost-effective solution for normal temperature environments up to 130°C.
Versatile Construction & Sizing Options
Our filter bags provide precision-fit solutions for various industrial dust collection systems.
-
Standard Diameters: Available in Φ4”, 5”, 5.25”, 6”, and 6.62”.
-
Custom Lengths: Manufactured to your specifications, ranging from 18” up to 192”.
-
Inlet/Top Interface Designs:
-
Top Load: Features snap band, ring, or double-beaded configurations for a secure, leak-proof seal.
-
Side Load: Raw edge top design, extended 3″ for split collar cage compatibility.
-
-
Reinforced Bottom Construction:
-
Standard single-ply felted disc.
-
3″ double-ply wearguard for high-friction durability.
-
5″ wear cuff featuring a 2″ overhang below the disc for maximum abrasion protection.
-
Critical Industrial Applications
Xiechang filter bags are optimized for heavy-duty dust treatment and flue gas purification in the following sectors:
-
Energy & Power: Flue gas filtration for coal-fired boilers, power plants, and waste incineration facilities.
-
Metallurgy: Specialized particle removal and flue gas treatment systems for metallurgy plants.
-
Construction Materials: High-efficiency collection for cement plants, asphalt concrete mixing, and ceramics.
-
Manufacturing: Essential dust treatment and collection for mining, chemical processing, timber, and flour milling.
