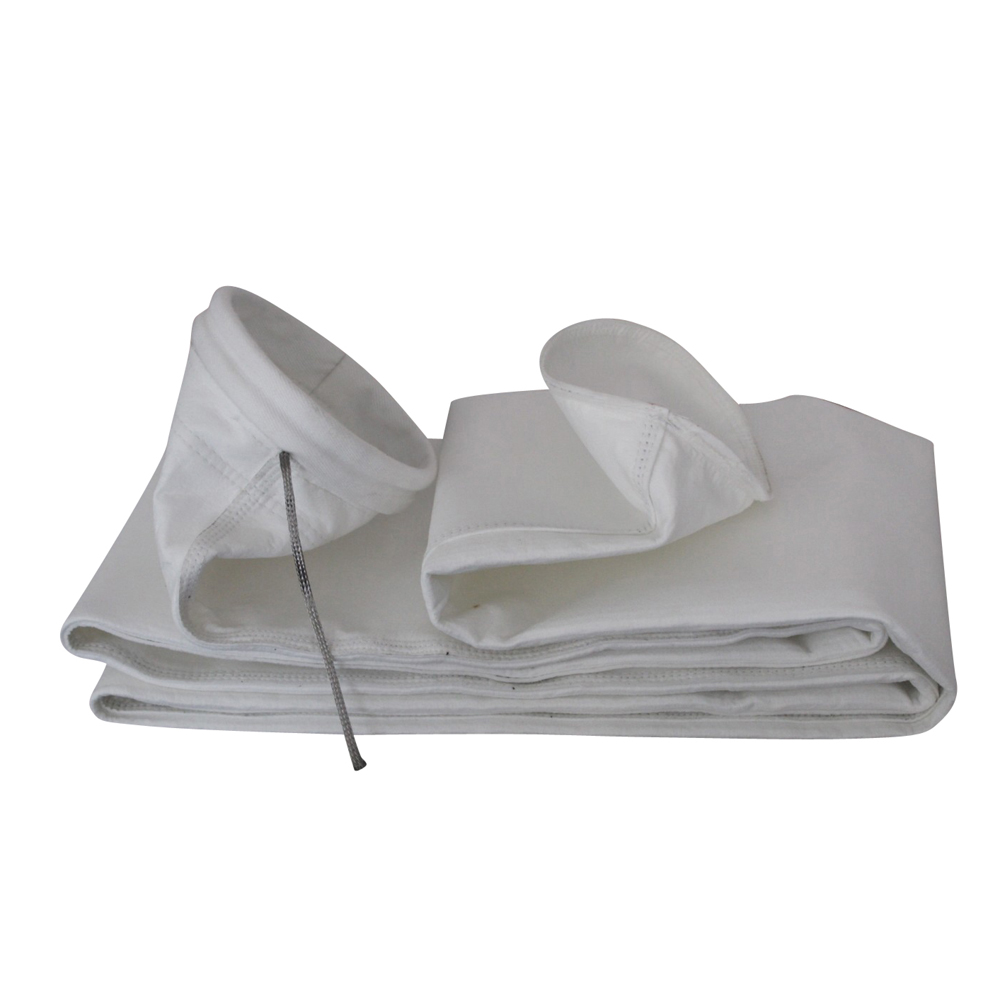

Polyester Dust Filter Bag | Cost-Effective Normal Temperature Filtration | Xiechang®

Premium Polyester Dust Filter Bags for Industrial Filtration | Xiechang®

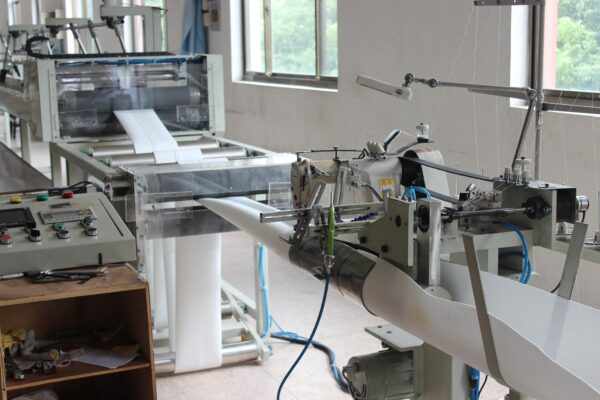

Xiechang utilizes a specialized Japanese-imported three-needle and six-thread sewing unit to ensure maximum structural integrity for every filter bag. Our advanced manufacturing process allows us to produce a wide array of configurations, including round, trapezoidal, flat, and custom-profiled designs tailored to your specific baghouse requirements.

Technical Performance: Polyester (PE) Filter Media

Polyester is the industry-standard choice for cost-effective, high-efficiency filtration in normal temperature environments.

• Thermal Range: Optimized for a continuous running temperature of 130°C, with a maximum peak temperature of 150°C.

• Fabric Integrity: Engineered with a warp stretch strength of 800 and a weft stretch strength of 1200 for reliable performance under pulse-jet cleaning.

• Breathability: Maintains an air permeability of 8-12 M³/M².S @ 200Pa for consistent airflow.

• Chemical Stability: Offers excellent resistance to oxidation and medial resistance to acids, alkalis, and hydrolysis.

Versatile Construction & Custom Sizing

We provide precision-fit solutions for various industrial dust collection systems:

• Standard Diameters: Available in Φ4”, 5”, 5.25”, 6”, and 6.62”.

• Custom Lengths: Manufactured to your specifications, ranging from 18” up to 192”.

• Inlet/Top Designs:

  • Top Load: Features snap band/ring or double-beaded configurations for a secure seal.

  • Side Load: Raw edge top design (extended 3″ for split collar cage compatibility).

• Reinforced Bottoms:

  • Standard single-ply felted disc.

  • 3″ double-ply wearguard for high-friction areas.

  • 5″ wear cuff with a 2″ overhang for maximum abrasion protection.

Critical Industrial Applications

Xiechang Polyester filter bags are widely utilized for dust treatment, purification, and collection in:

1. Industrial Processing: Mining, flour milling, and timber processing facilities.

2. Construction Materials: Cement production, asphalt concrete mixing, and ceramics.

3. Manufacturing: Specialized filtration for electronics and chemical processing.

4. Metallurgy: Flue gas treatment and particle removal systems.

Premium Material Matrix

Beyond Polyester, we offer a full spectrum of high-performance technical fibers:

Dust filter bag material technical specifications:
