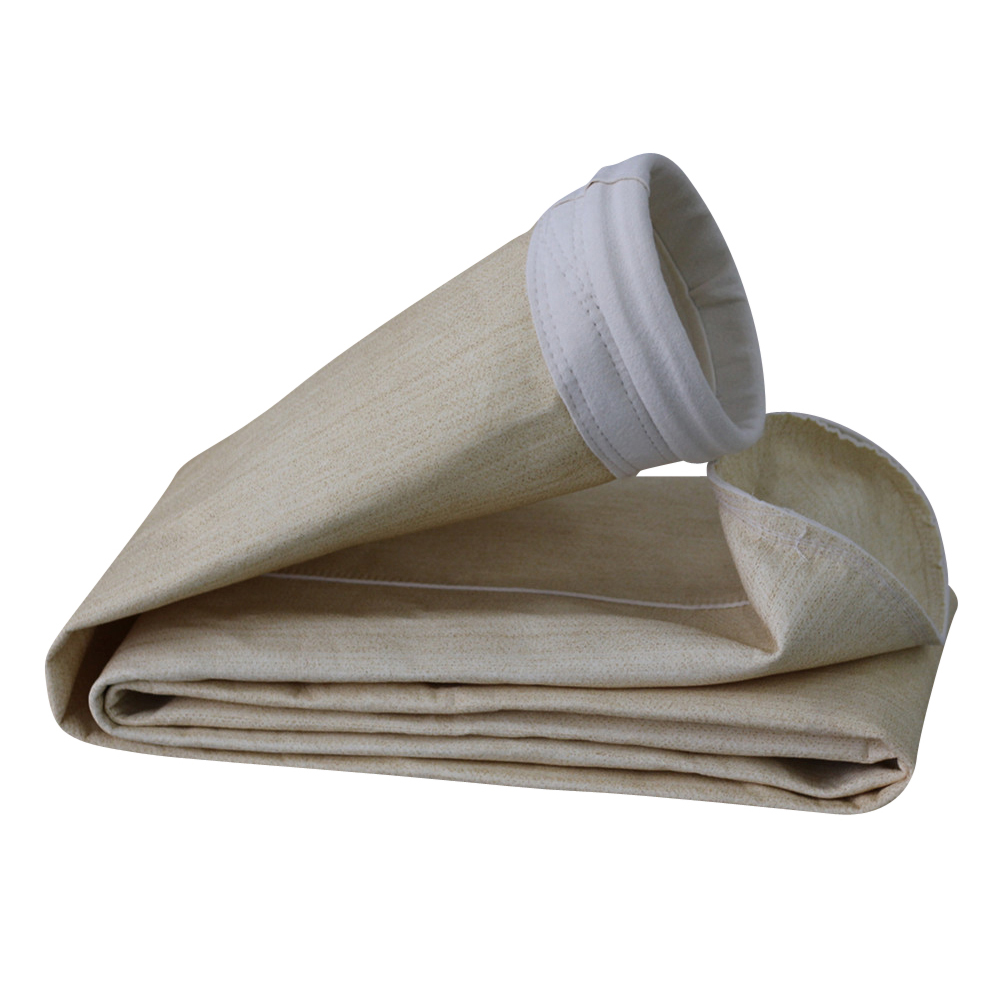

High-Performance PPS Filter Bags for Coal-Fired Boilers | Xiechang®
Xiechang utilizes a specialized Japanese-imported three-needle and six-thread sewing unit to manufacture high-precision filter bags. This advanced equipment ensures superior durability for various geometries, including round, trapezoidal, flat, and custom-profiled designs tailored to specific industrial requirements.
For coal-fired boiler applications, our PPS (Polyphenylene Sulfide) filter media provides the ideal balance of thermal stability and chemical resilience.
Technical Performance: PPS Filter Media
Our PPS dust collection bags are engineered to handle the corrosive flue gas environments typical of power generation.
-
Operating Temperatures: Sustains a continuous running temperature of 160°C, withstanding peak surges up to 190°C.
-
Chemical Resistance: Features excellent resistance to acids, alkalis, and oxidation, ensuring long-term integrity in sulfur-rich environments.
-
Structural Strength: Delivers a warp stretch strength of 900 and weft stretch strength of 1200 for high-pressure pulse cleaning cycles.
-
Air Permeability: Maintains an optimal flow rate of 15 M³/M².S @ 200Pa.
Customizable Bag Construction & Sizes
We offer a range of configurations to ensure a perfect fit for any baghouse system:
-
Standard Diameters: Φ4”, 5”, 5.25”, 6”, and 6.62”.
-
Length Range: Fully customizable from 18” up to 192”.
-
Top Interface Designs: Available in Top Load (snap band/ring or double beaded) and Side Load (raw edge top) configurations.
-
Reinforced Bottoms: Options include single-ply felted discs, 3″ double-ply wearguards, or 5″ wear cuffs with a 2″ overhang for maximum abrasion protection.
Critical Industrial Applications
Xiechang filter bags are optimized for heavy-duty dust purification and flue gas treatment:
-
Energy & Power: Specialized flue gas filtration for coal-fired boilers, power plants, and waste incineration facilities.
-
Metallurgy: Particle removal systems for metallurgy plants.
-
Construction: High-efficiency collection for asphalt concrete mixture, cement, and chemical processing.
-
Processing: Dust treatment for mining, timber processing, and electronics manufacturing.
Premium Material Selection
Beyond PPS, we provide a full spectrum of high-performance fibers to meet diverse technical specifications:
| Fiber Composition | Max Running Temp | Acid Resistance | Hydrolysis Resistance |
| PTFE | 240°C | Excellent | Excellent |
| P84 | 180°C | Excellent | Excellent |
| Nomex | 200°C | Fair | Fair |
| Fiberglass | 250°C | Fair | Poor |
| FMS | 200°C | Excellent | Fair |
| Polyester | 130°C | Medial | Medial |
