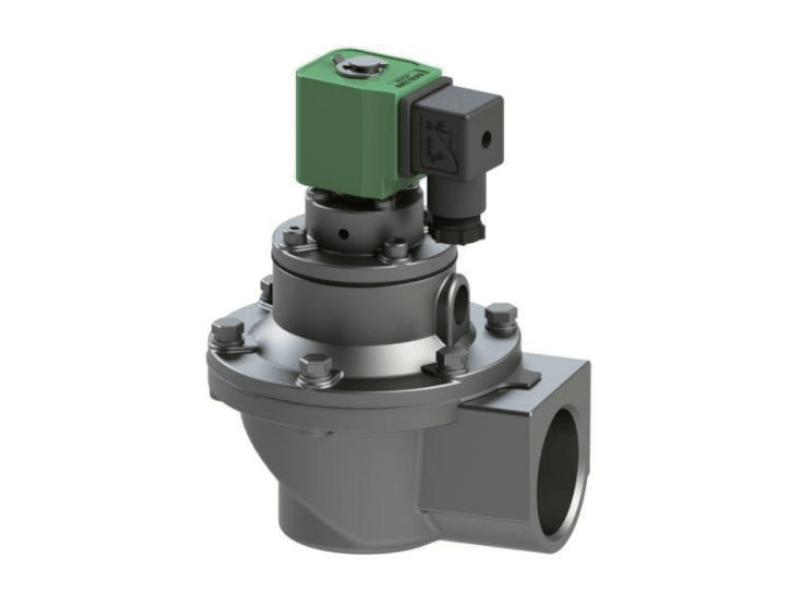

Xiechang® Stainless Steel Right-Angle Pulse Valve: Engineered for Corrosive Duty.Standard aluminum valves fail rapidly in aggressive environments. Our SS304/SS316 baghouse pulse valve series offers high chemical resistance and a 1M+ cycle lifespan, crucial for reliability in chemical and offshore industries.
Technical Specifications
Operating parameters for the high-durability baghouse pulse valve:
| Parameter | Specification |
|---|---|
| Operating Pressure | 0.2MPa ~ 0.6MPa |
| Control Voltage | DC24V / AC220V |
| Standard Temp Range | -40℃ to 100℃ |
| Extreme Temp Diaphragm | Up to 200℃ |
| Ingress Protection | IP65 Waterproof |
| Valve Body Material | SS304 / SS316 Stainless Steel |
Full Selection Matrix
Complete model range for the baghouse pulse valve (DN20 to DN80):
| MODEL | MATERIAL | SIZE (G THREAD) | DIAPHRAGM |
|---|---|---|---|
| DCF-Z-20-C | SS304 | DN20 (3/4″) | Single |
| DCF-Z-25-C | SS304 | DN25 (1″) | Single |
| DCF-Z-40S-C | SS304 | DN40 (1.5″) | Double |
| DCF-Z-50S-C | SS304 | DN50 (2″) | Double |
| DCF-Z-76S-C | SS304 | DN80 (3″) | Double |
| DCF-Z-20-D | SS316 | DN20 (3/4″) | Single |
| DCF-Z-25-D | SS316 | DN25 (1″) | Single |
| DCF-Z-40S-D | SS316 | DN40 (1.5″) | Double |
| DCF-Z-50S-D | SS316 | DN50 (2″) | Double |
| DCF-Z-76S-D | SS316 | DN80 (3″) | Double |
Technical Encyclopedia
Essential data for your baghouse pulse valve maintenance:
▶ 1. Why are Stainless Steel Right-Angle Pulse Valves critical for heavy industry?
They provide unmatched resistance to oxidation and chemical attack, ensuring long-term hermetic sealing in high-humidity or acid-rich environments.
▶ 2. Key durability factors of Stainless Steel Right-Angle Pulse Valves?
Superior fatigue strength allows our valves to handle millions of rapid air bursts without housing deformation or seat wear.
▶ 3. Performance benefits of the Stainless Steel Right-Angle Pulse Valve series?
A smooth internal cast ensures laminar airflow and higher peak pressure, leading to more efficient bag cleaning and reduced compressed air waste.
▶ 4. Best practices for installing Stainless Steel Right-Angle Pulse Valves?
Due to the higher density of the material, ensure that piping supports are calibrated for the weight of the valve to prevent vibration-induced leaks.
▶ 5. Comparing SS304 vs SS316 Stainless Steel Right-Angle Pulse Valves?
SS304 is ideal for standard outdoor corrosion; SS316 is mandated for high-salinity or heavy sulfuric acid concentration in industrial flue gas.
▶ 6. Evaluating the ROI for Stainless Steel Right-Angle Pulse Valves?
The total cost of ownership is lower due to the dramatic reduction in replacement cycles and associated plant downtime labor costs.
