Product introduction：

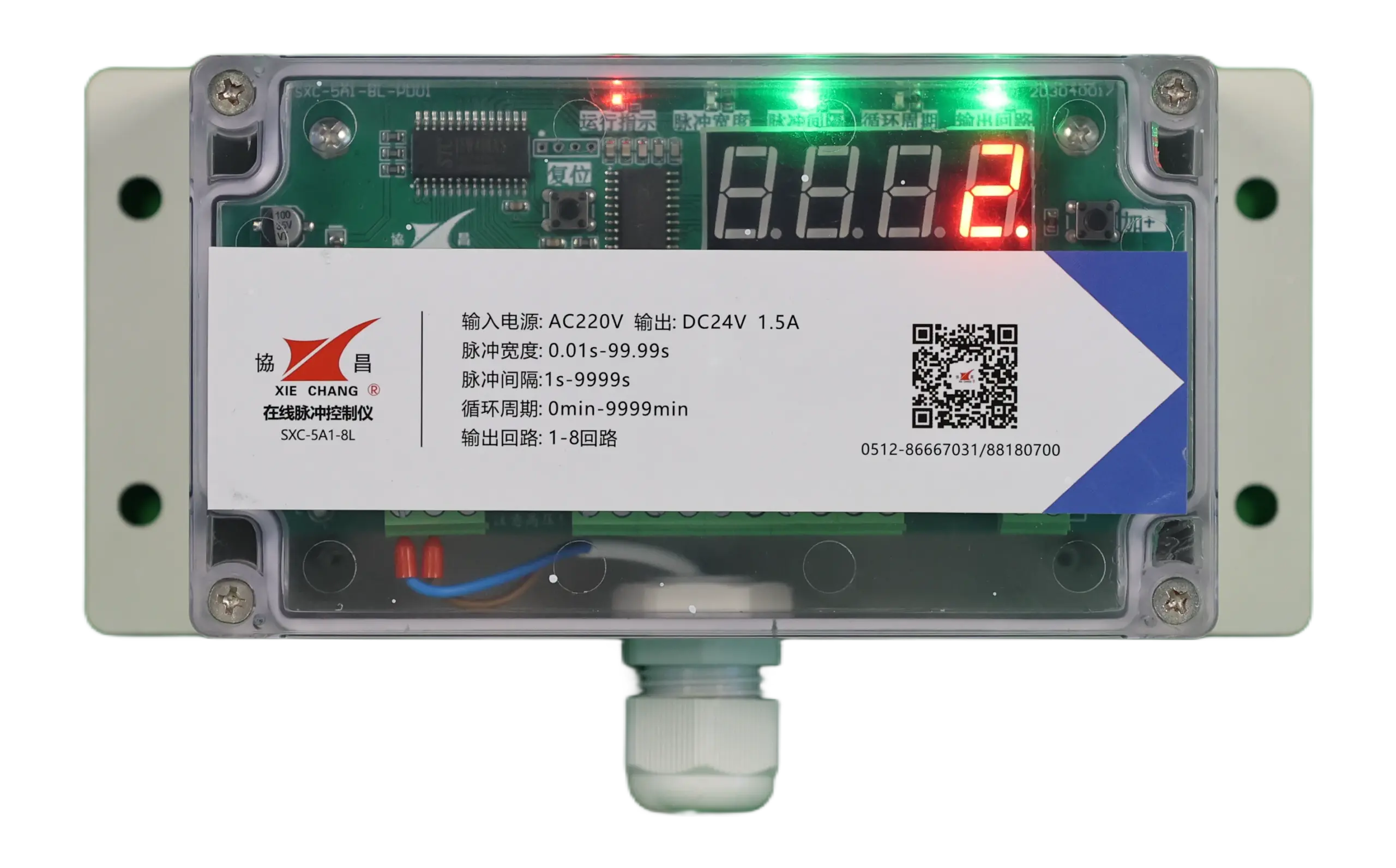

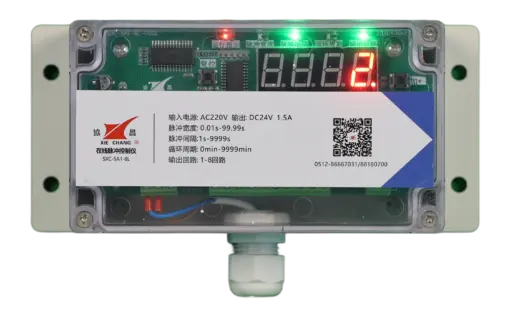

The SXC-5A1 pulse controller panel is equipped with a digital display that can sequentially display the working sequence of the pulse valve. The pulse width, pulse interval, and cycle interval can be adjusted according to the dust cleaning needs, controlling the opening and closing of the solenoid valve, and implementing timed cleaning of the dust collector. At the same time, there is an input node for a differential pressure controller. After connecting the differential pressure controller and differential pressure transmitter, the differential pressure can be set to clean the dust.
Model No. meaning：
Product parameters:
| Model | L.（mm） | W.（mm） | H.（mm） | Hole spacing（mm） | Hole spacing（mm） |
| SXC-5A1-8 | 195 | 90 | 65 | 178 | 49 |
| SXC-5A1-24 | 229 | 149 | 85 | 218 | 119 |
| Rated input voltage | AC220V(±10%）50HZ/60HZ |
| Rated output voltage | DC24V |
| Rated output current | 1.2A |
| Rated power | 30W |
| Pulse width adjustment range | 0.01s-99.99s，accuracy 10ms；（factory set 0.08S） |
| Pulse interval adjustment range | 1s-9999s，accuracy 1s；(factory set 10S) |
| Cycle adjustment range | 0min-9999min，accuracy 1min；（factory set 0min） |
| Output digit adjustment range | 1-N |
| Usage environment | Working temperature -20 ℃ to+60 ℃; The relative humidity of the air shall not exceed 85%;
(No ice or condensation) No severe corrosive gases or conductive dust; No severe vibration or impact. |
