Product introduction：

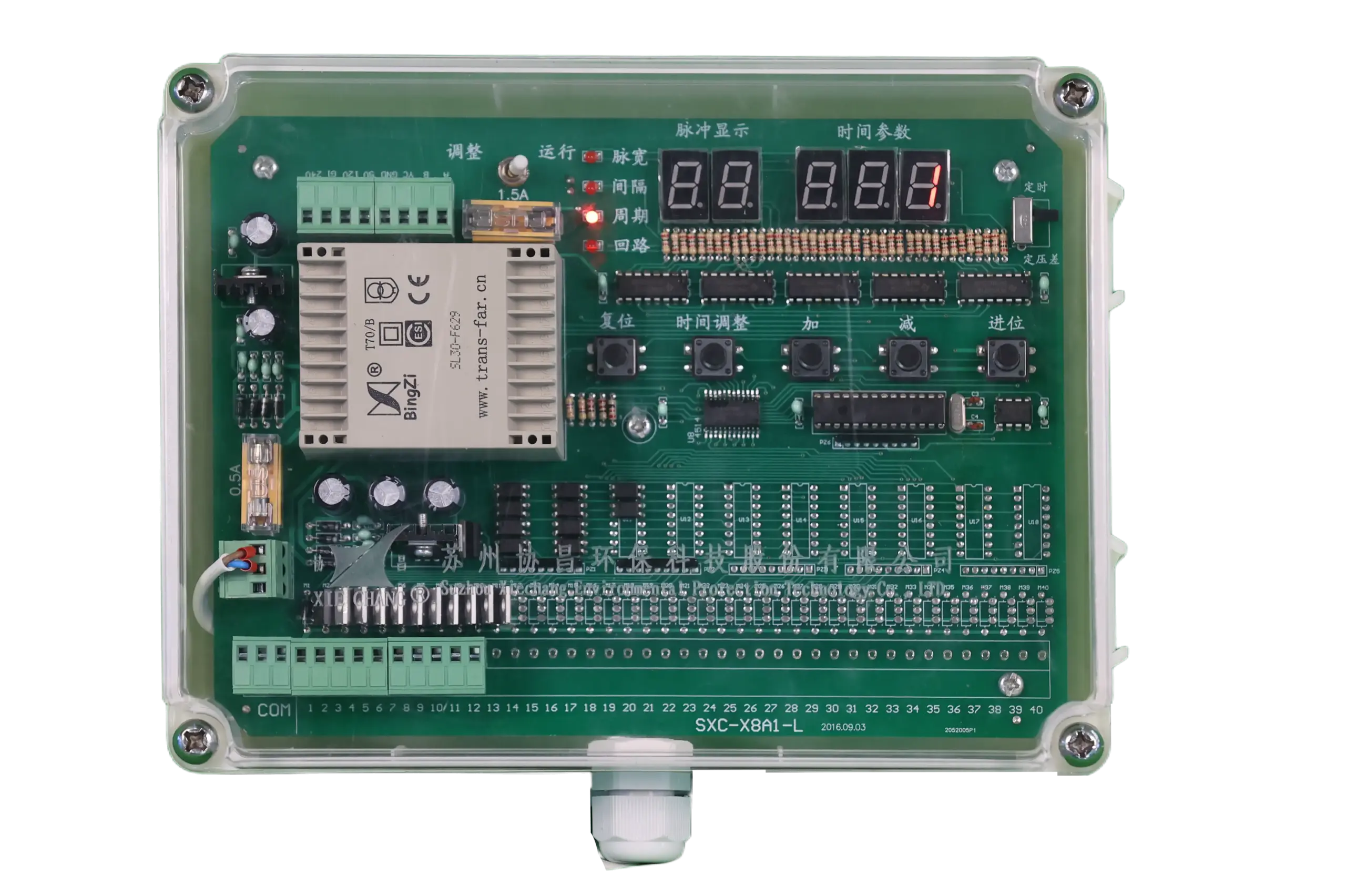

The SXC-X8A1 Improved Online Pulse Controller is a high-performance electronic control unit designed specifically for pulse-jet fabric dust collectors. As the “brain” of the baghouse filter, the quality of the pulse controller directly determines the cleaning efficiency and stability of the entire system.
Our R&D team has continuously optimized the X8A1 series to provide precise control over Pulse Width, Interval, and Cycle Time, ensuring optimal solenoid valve performance and extending filter bag life.
Advanced Features
-
Modular Scalability: Features an innovative extended output module design, allowing users to scale from 1 to 120 channels based on specific project requirements.
-
Intelligent Cleaning Modes: Supports both Timed Cleaning and Differential Pressure (Delta P) Cleaning (when connected to a DP transmitter), reducing compressed air consumption.
-
Industrial Durability: Housed in a transparent, hanging PC shell that is dust-proof, moisture-resistant, and aesthetically professional.
-
User-Friendly Interface: An intuitive digital display shows the real-time working sequence of pulse valves, making monitoring and troubleshooting effortless.
Technical Specifications
| Parameter | Specification |
| Input Voltage | AC 220V (±10%) 50Hz/60Hz |
| Output Voltage | DC 24V / AC 220V (Customization Available) |
| Output Current | 1.2A |
| Power Consumption | ≤ 30W |
| Pulse Width Range | 0.02s – 2.55s (Highly Adjustable) |
| Pulse Interval Range | 1s – 255s |
| Cycle Time Range | 0 – 255 Minutes |
| Control Logic | Timing / Differential Pressure (Delta P) |
| Operating Environment | Temp: -20°C to +50°C; Humidity: ≤ 85% |
Product Selection & Dimensions (Deduplicated)
| Control Channels | Configuration | Expansion Modules | Main Unit Size (mm) | Module Size (mm) | Weight (kg) |
| 1 – 40 Valves | Single Unit | 0 | 100 × 250 × 220 | — | 1.7 |
| 41 – 80 Valves | Combined System | 1 | 100 × 250 × 220 | 55 × 130 × 190 | 2.3 |
| 81 – 120 Valves | Combined System | 2 | 100 × 250 × 220 | 55 × 130 × 190 (×2) | 2.9 |
