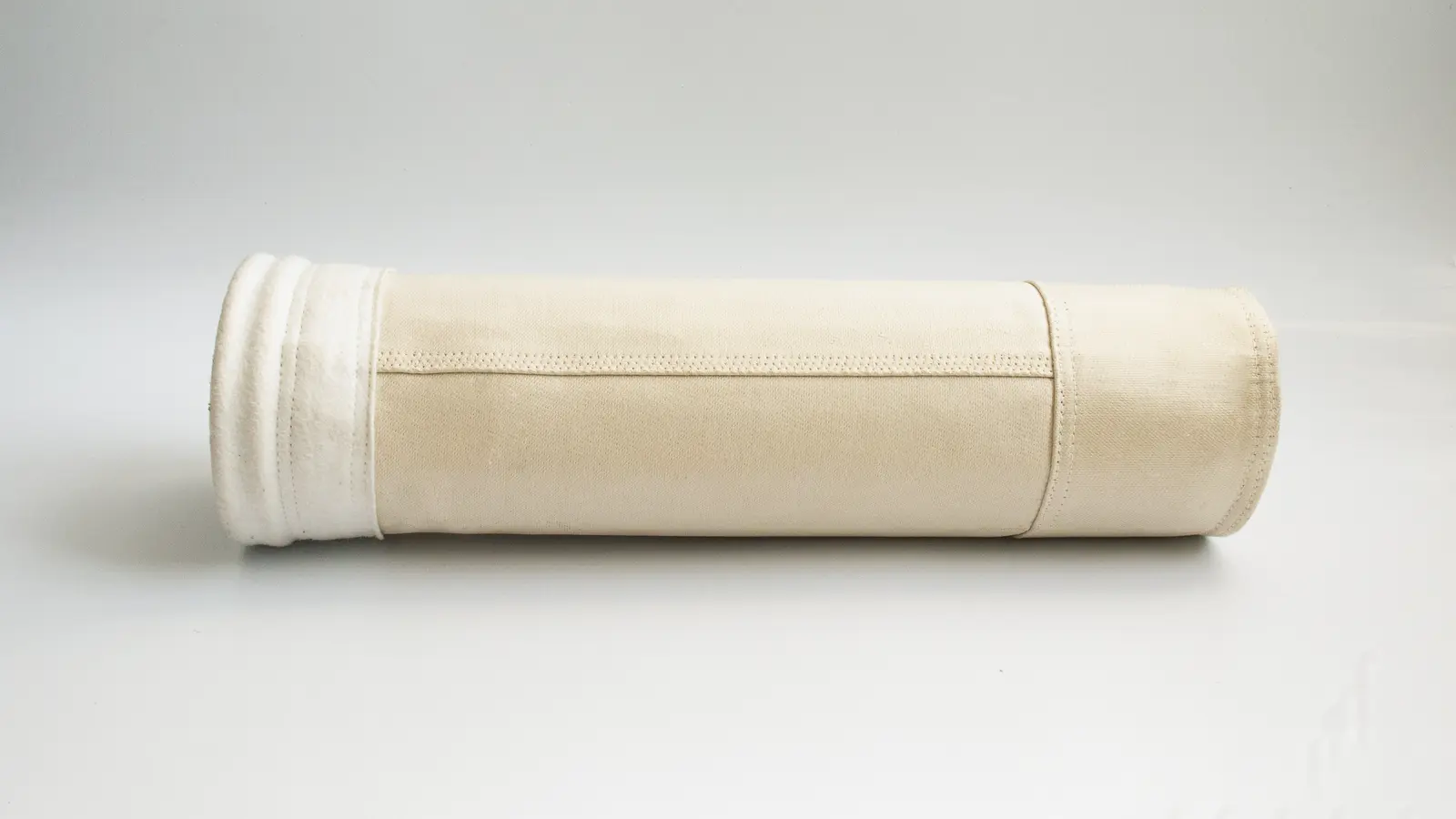

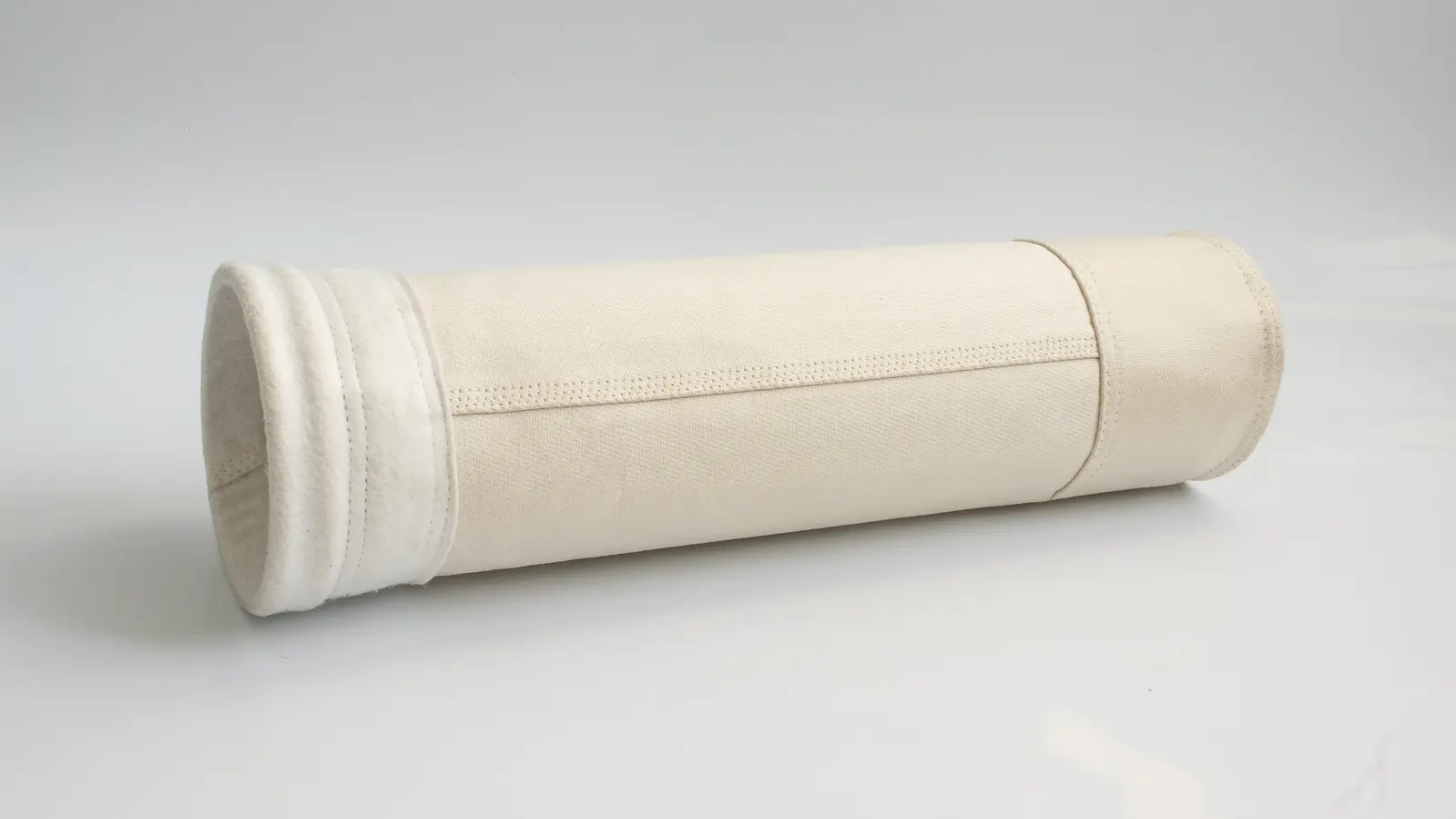

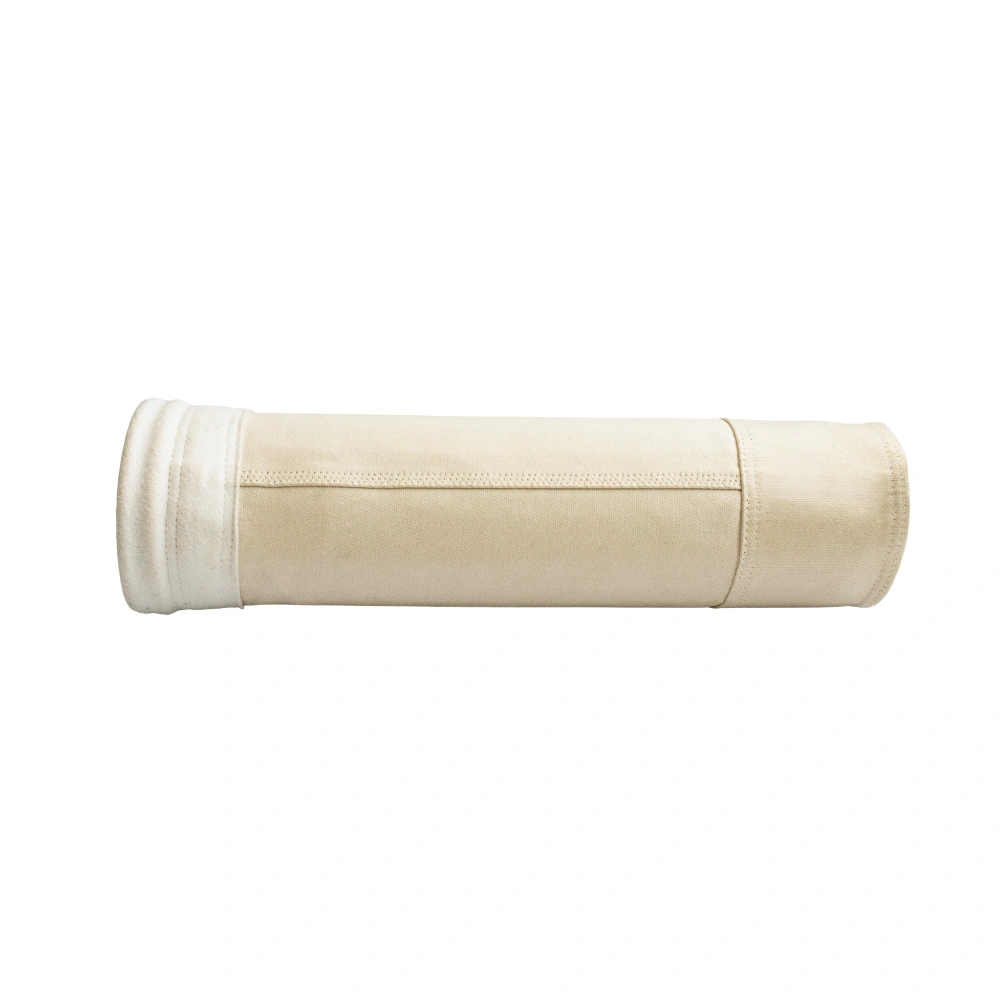

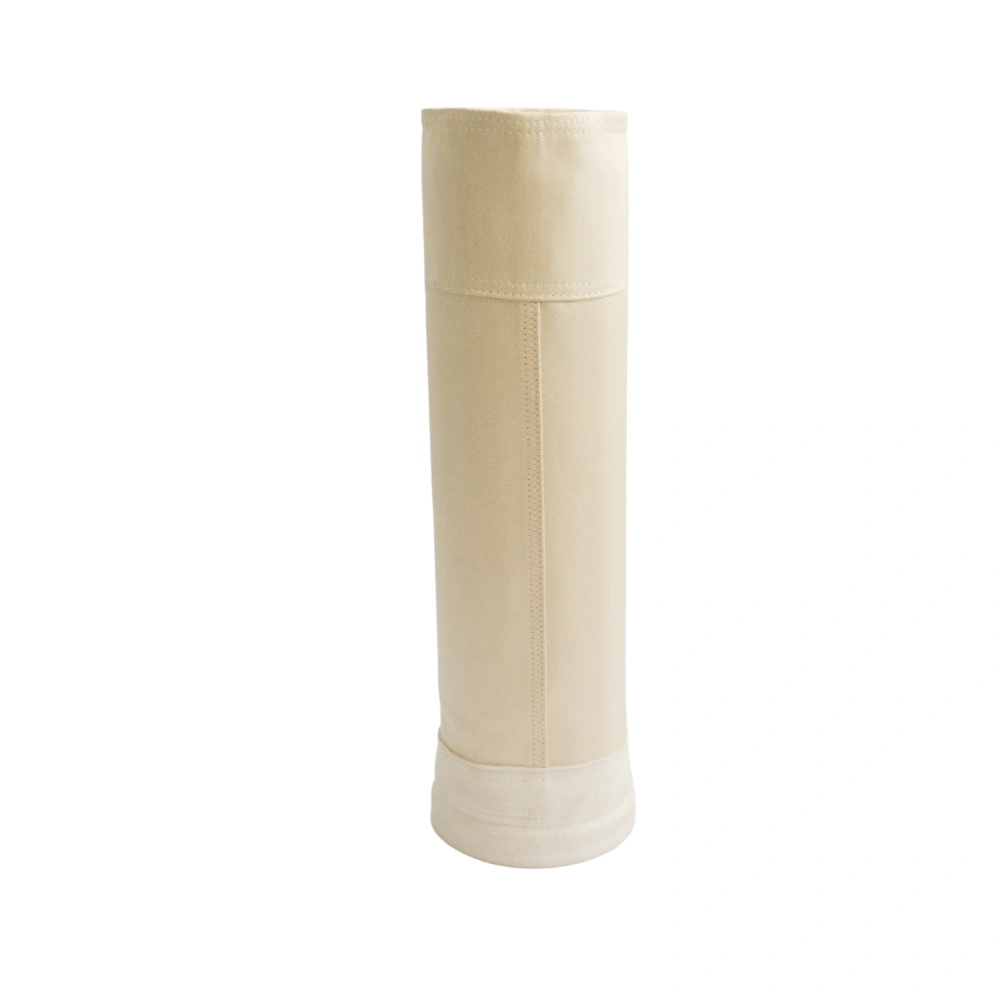

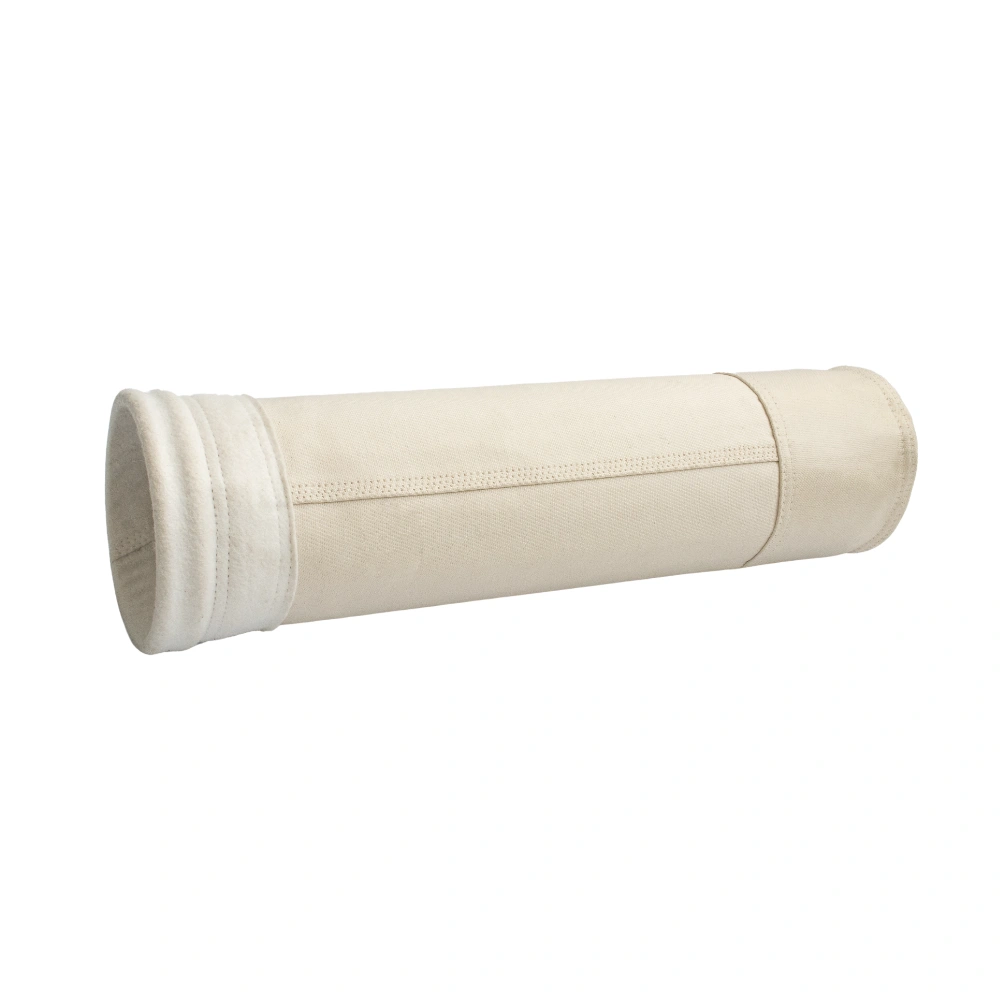

Xiechang® Fiberglass Filter Bag
| Core Performance Metric | Technical Advantage |
|---|---|
| Pressure Drop Control | >300 Pa Lower than standard filter bags. |
| Emission Standards | Achieves Near-Zero Emissions for high compliance. |
| Airflow Throughput | Increases system capacity by +20–30%. |
| Air Permeability | 30–50 L/dm²·min (50% higher than traditional media). |
▶ 01. Technical Performance & Efficiency
Filtration Efficiency: Excellent particle capture across a wide range of dust concentrations and particle sizes in demanding industrial environments.
Dust Cake Release: Superior detachment reduces cleaning frequency and extends bag service life under high-dust-load conditions.
▶ 02. Applicable Industries & Sectors
Steel, Metallurgy, Chemicals, Cement, Ceramics, Coal-fired Boilers, and Building Materials.
▶ 03. Detailed Technical Highlights
01. Low Pressure Drop: Over 300 Pa lower than standard filter bags, reducing energy consumption and operational costs in continuous high-load applications.
02. Superior Dust Cake Release: Exceptional detachment reduces cleaning cycle frequency and extends bag service life, especially in high-dust-load conditions.
03. High Throughput Capacity: Increases airflow volume by 20–30% compared to standard filter bags, enabling greater system capacity without infrastructure changes.
▶ 04. Compatibility with ASCO & Goyen Pulse Valves
Why Choose Xiechang® Fiberglass Bags for ASCO/Goyen Systems?
- High-Pressure Durability: Specially reinforced bag tops withstand the high-peak pressure (up to 0.6MPa) typical of ASCO and Goyen valves without deformation.
- Optimized Cleaning Pulse: The precise permeability of our fiberglass media ensures that the powerful air surge from these valves reaches the bottom of the bag, maximizing dust cake release.
- Airtight Seal: Engineered collar designs (snap band or flange) ensure a zero-leakage fit with standard blowpipe configurations used alongside these premium valves.
| Brand | Valve Type | Size | Compatible Model |
|---|---|---|---|
| ASCO | Right Angle | 1″ | SCG353A043 |
| 1.5″ | SCG353A044 | ||
| 2″ | SCG353A047 | ||
| 3″ | SCG353A051 | ||
| Immersion | 3″ | SCG353A060 | |
| Remote Pilot | 1.5″ | G353A042 | |
| 1.5″ | G353A045 | ||
| Goyen | Threaded | 1″ | CA25T |
| 1.5″ | CA45T | ||
| 2″ | CA50T | ||
| 2.5″ | CA62T | ||
| 3″ | CA76T | ||
| Dress Nut | 1″ | CA25DD | |
| 1.5″ | CA45DD | ||
| Full Immersion | 2.5″ | CA62FS | |
| 3″ | CA76FS | ||
| 3.5″ | CA89FS |
