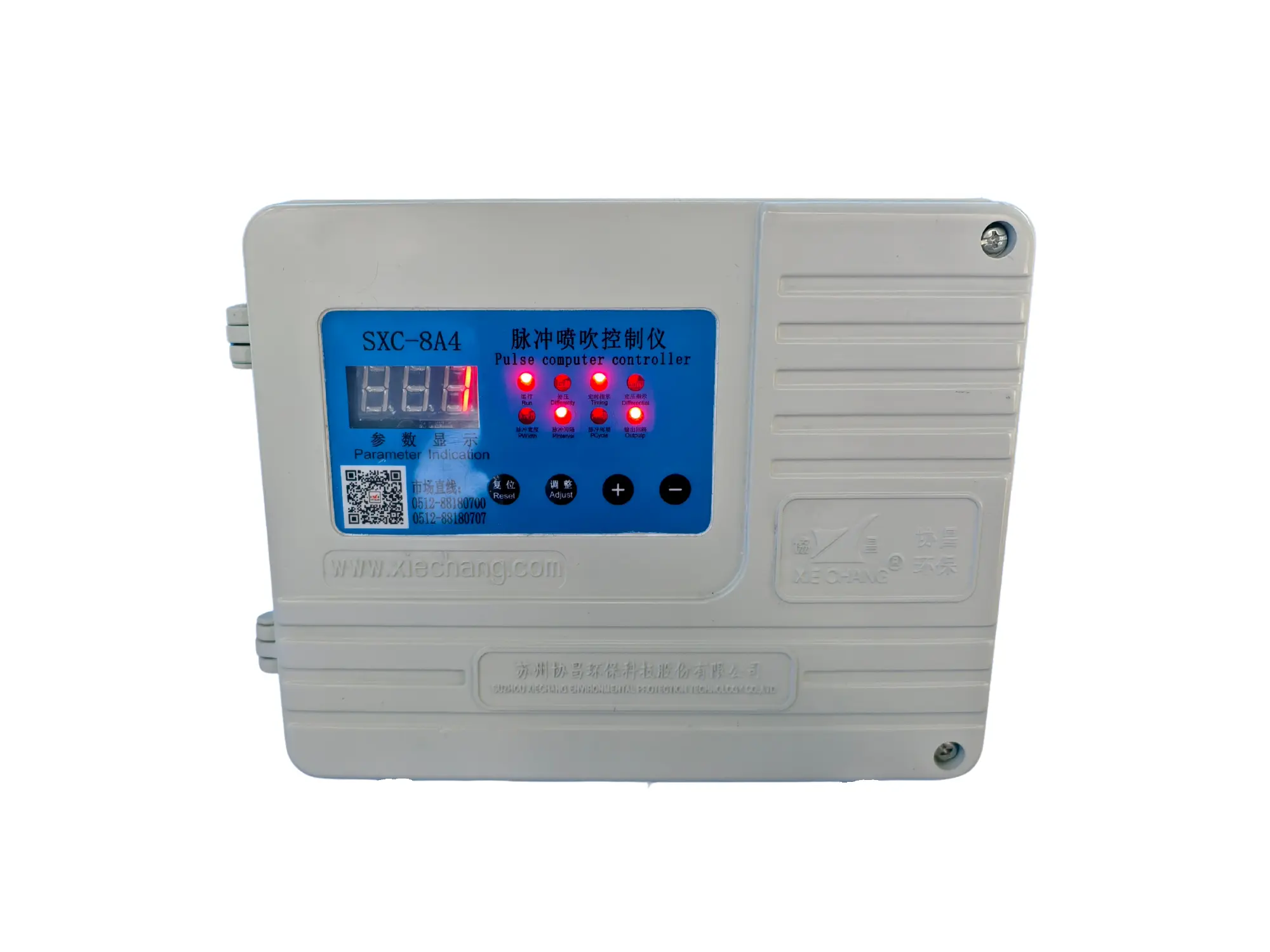

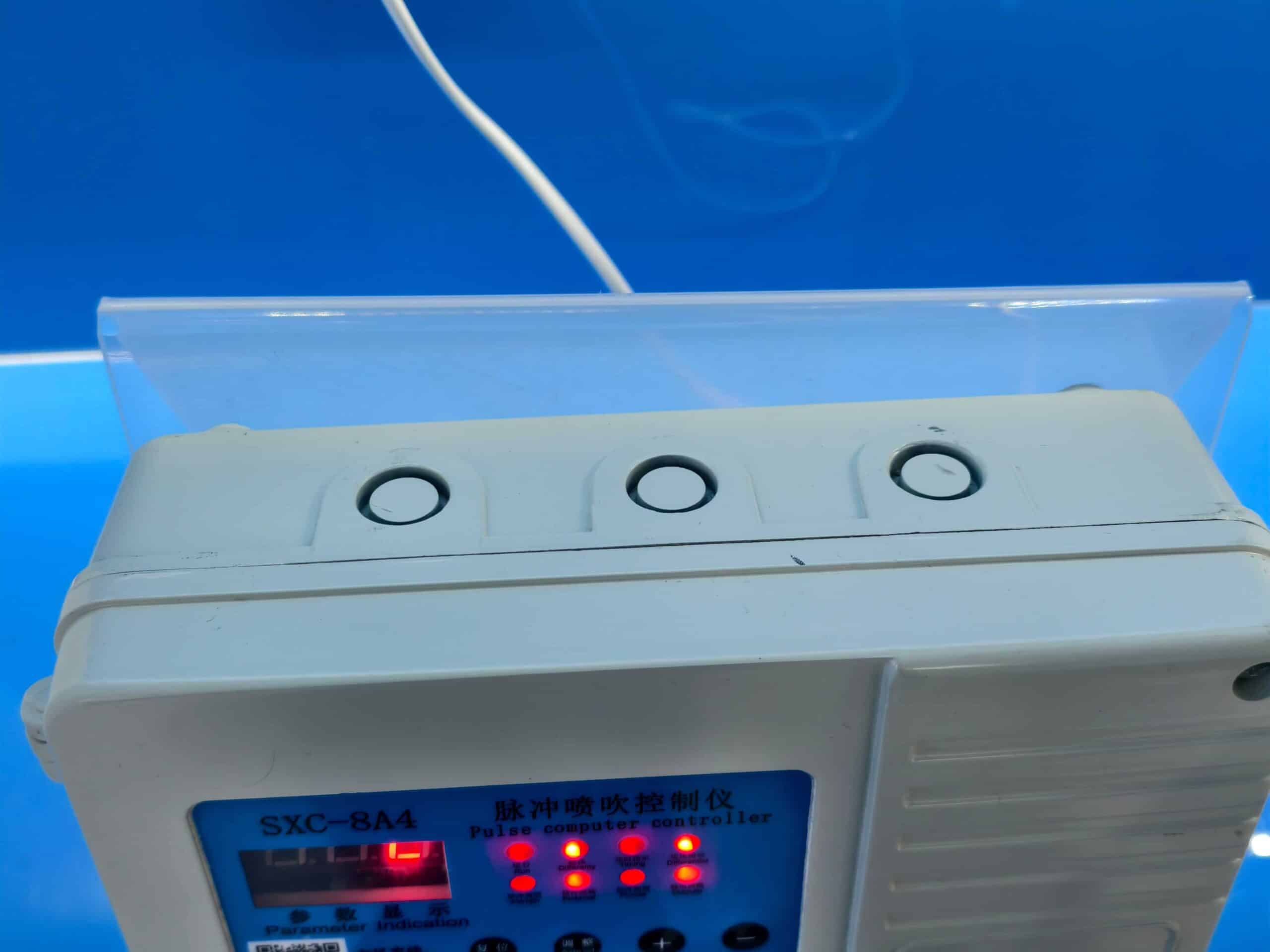

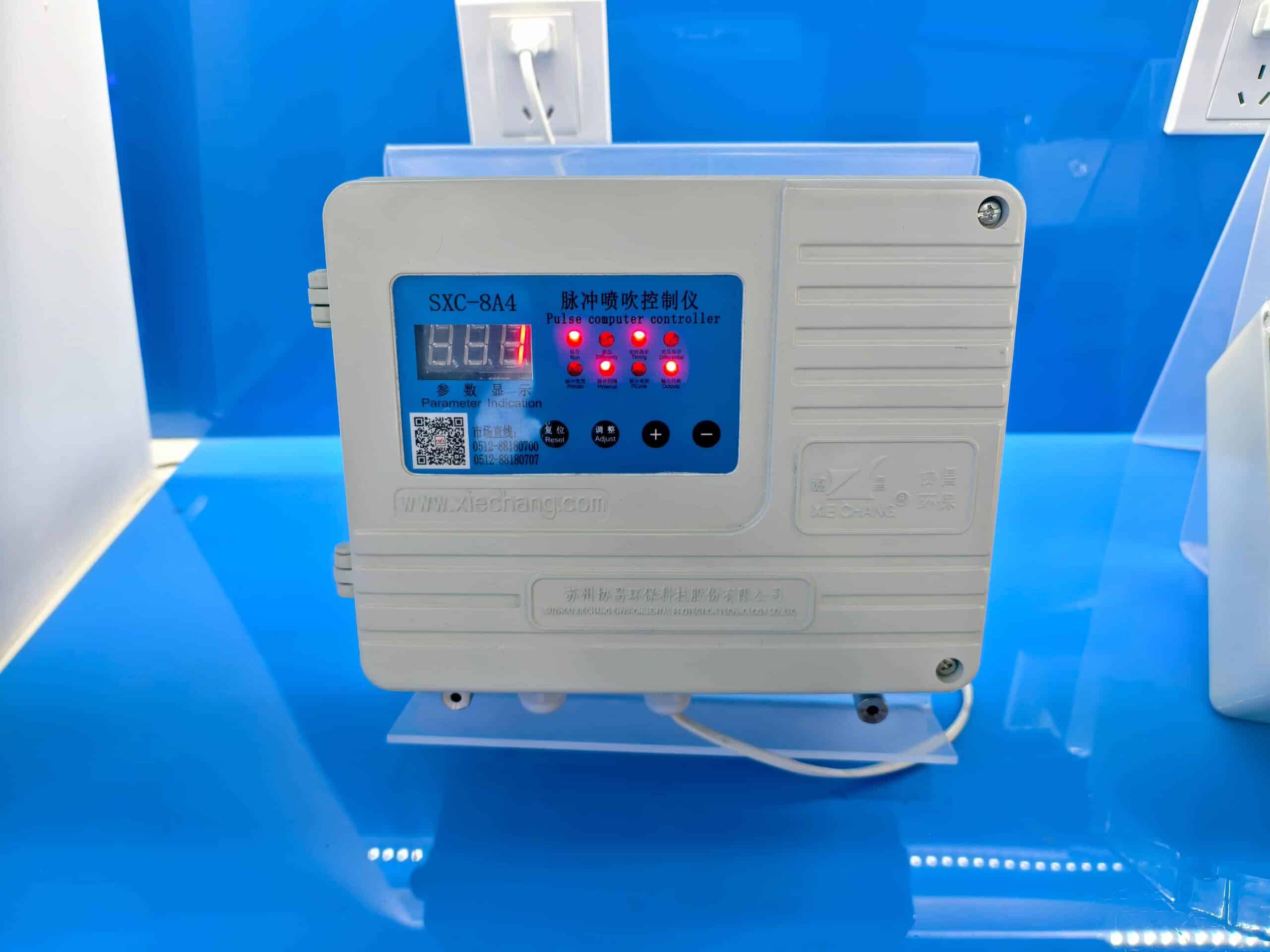

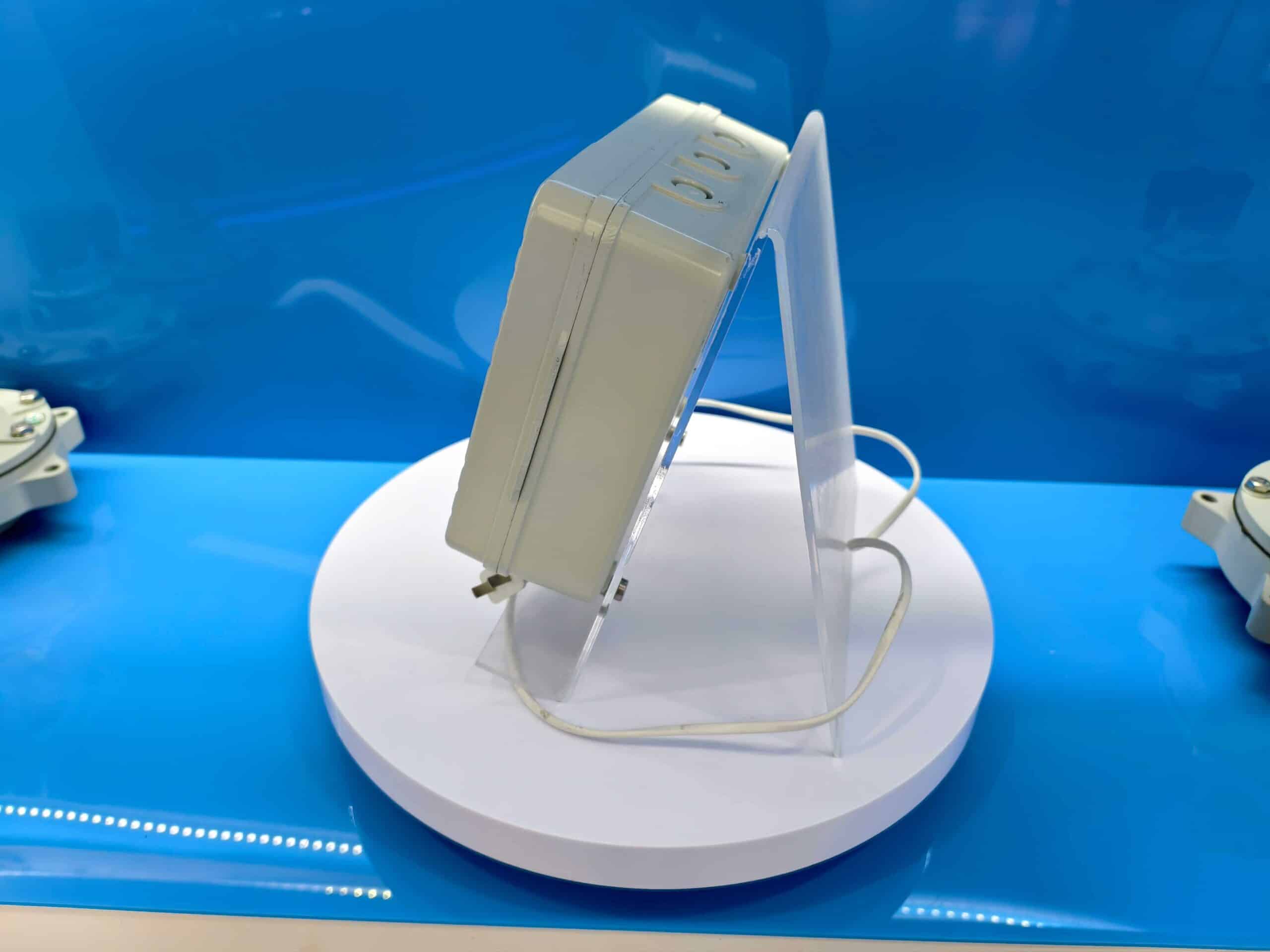

⚡ Xiechang® SXC-8A4: The Heavy-Duty Command Center for Pulse Jet Systems
Overview

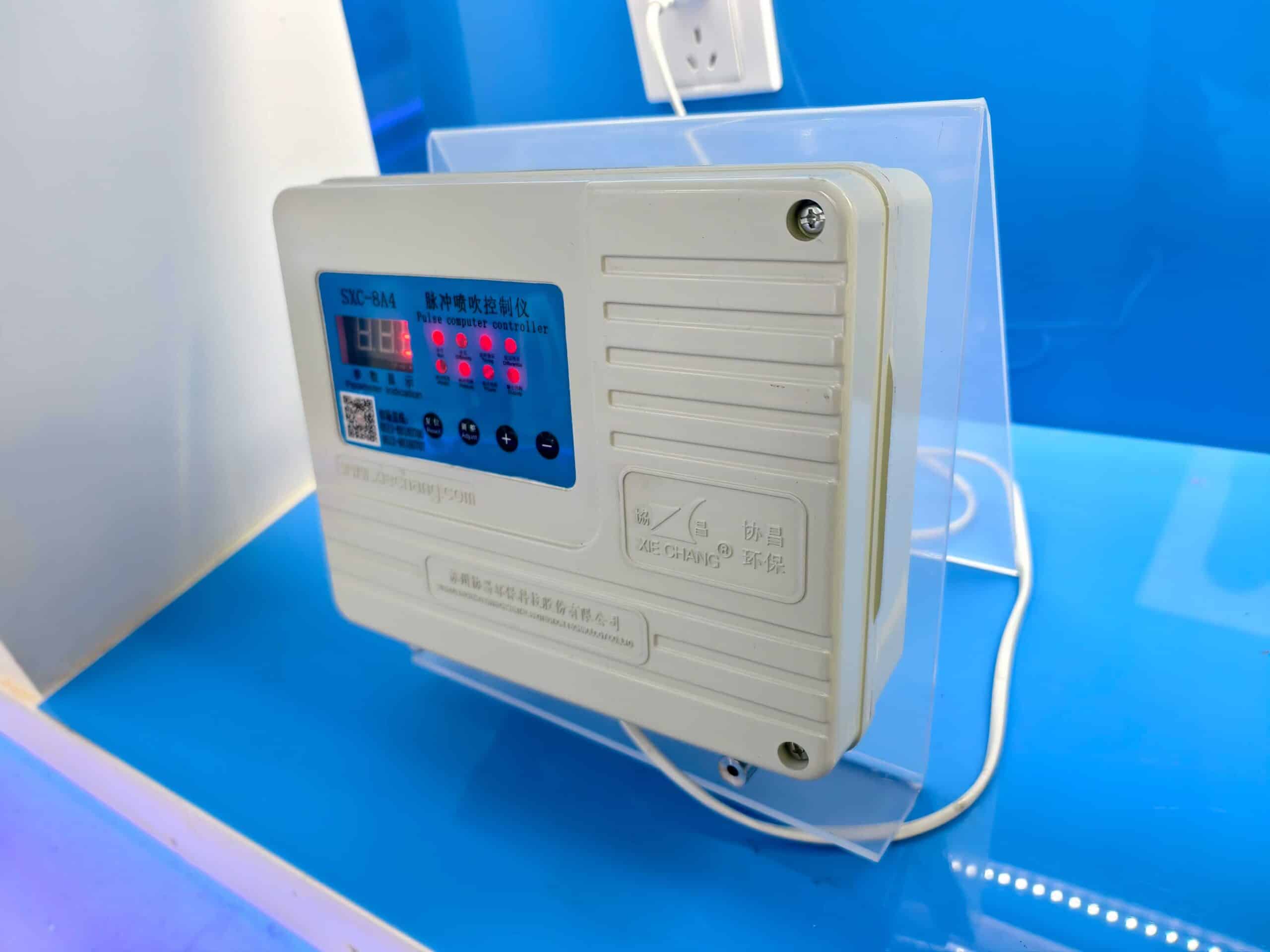

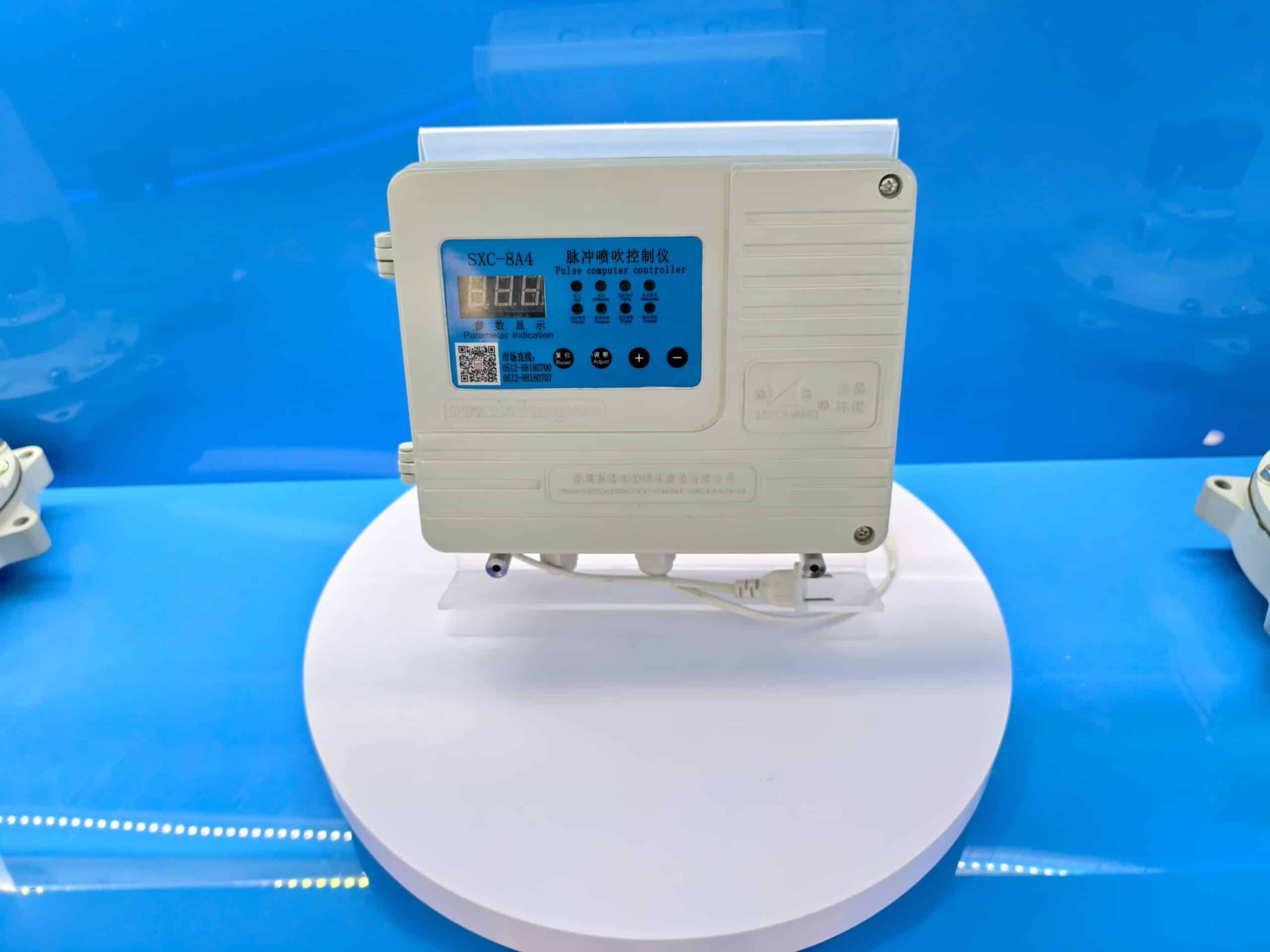

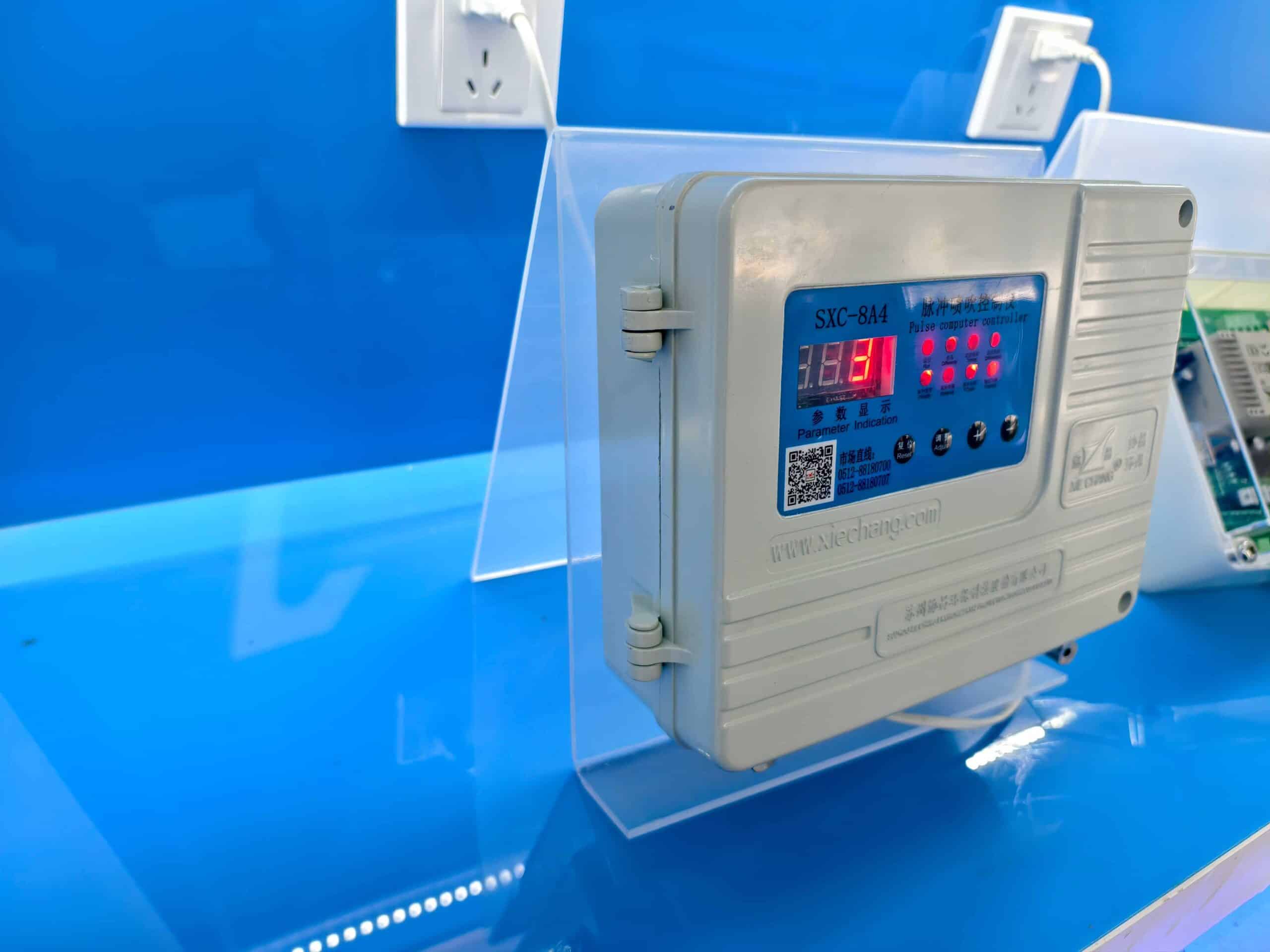

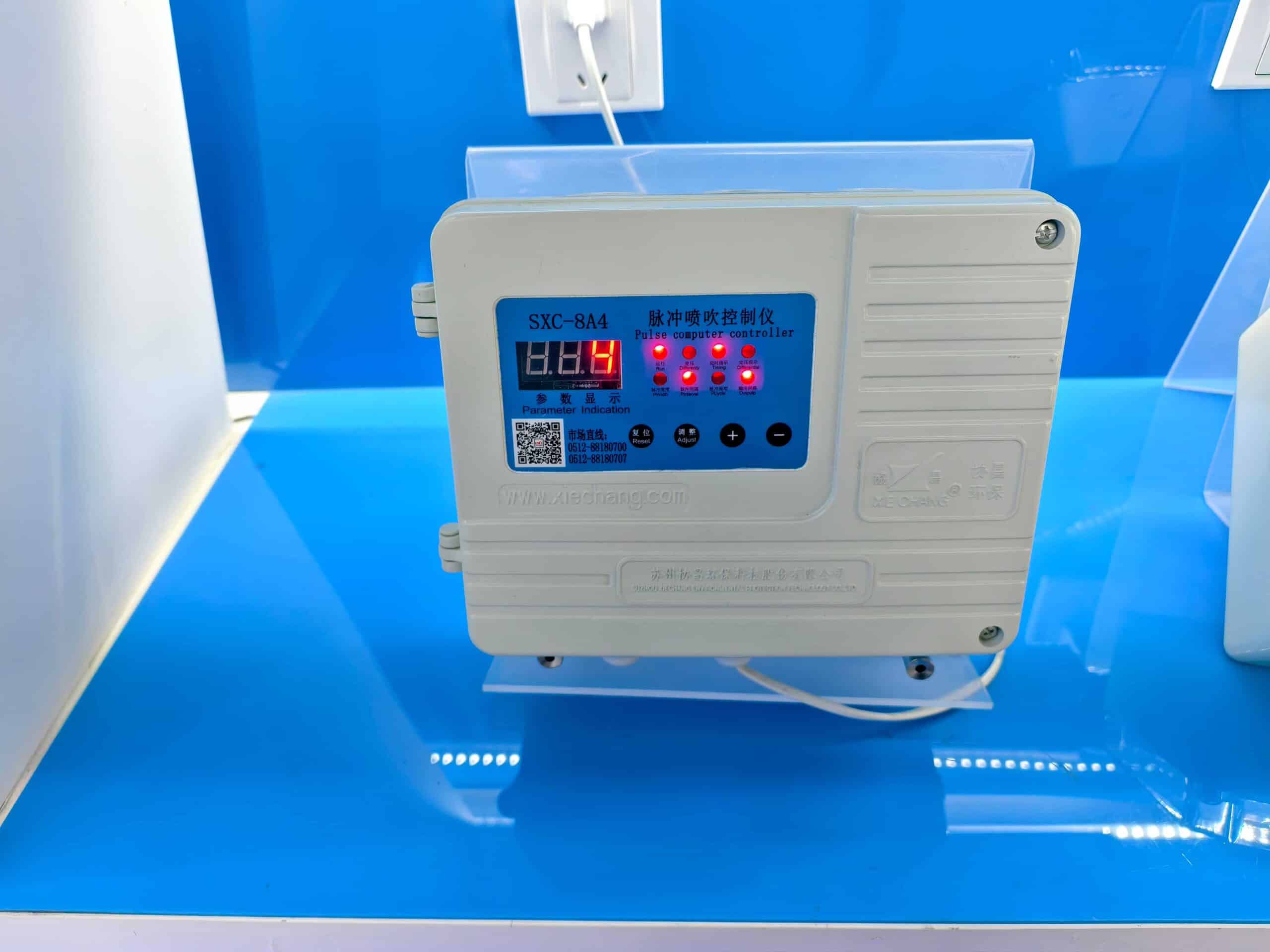

The Xiechang® SXC-8A4 isn’t just a timer; it’s a ruggedized controller engineered for online pulse cleaning in demanding industrial environments. Designed with a modular architecture, this series scales from 8 up to 48 output channels, providing a reliable drive current of DC24V/1.5A per valve. Whether you are managing a single-cell unit or a massive multi-compartment baghouse, the SXC-8A4 delivers the switching precision required to keep air-to-cloth ratios optimized.
⚙️ Technical Specifications (Field-Ready Data)
-
Scalable Architecture: Models available in 8, 16, 24, 32, 40, and 48-port configurations.
-
Active Gate Control: The number of active channels is field-adjustable to match your specific header pipe layout.
-
Timing Control Range:
-
Pulse Width (On-Time): 0.02s – 2.55s (Precision-tuned; Factory set at 0.08s).
-
Pulse Interval (Off-Time): 1s – 255s (Factory set at 10s).
-
Cycle Interval: 0 – 255 minutes (Configurable for continuous or intermittent cleaning).
-
-
Power Specs:
-
Input: AC 220V ($\pm 10\%$), 50–60Hz.
-
Output: DC 24V / 1.5A (High-torque drive for solenoid plungers).
-
-
Environmental Survivability:
-

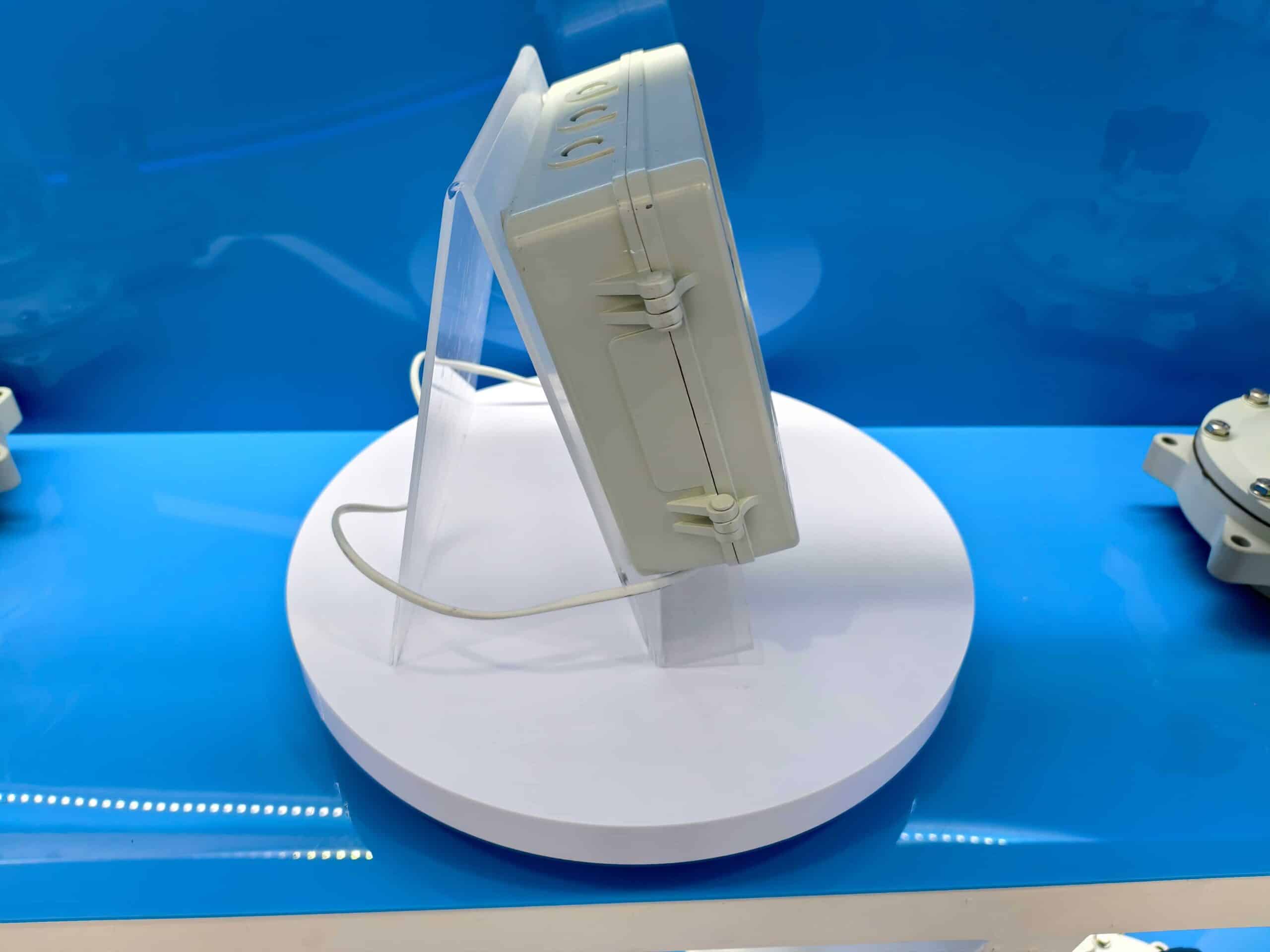

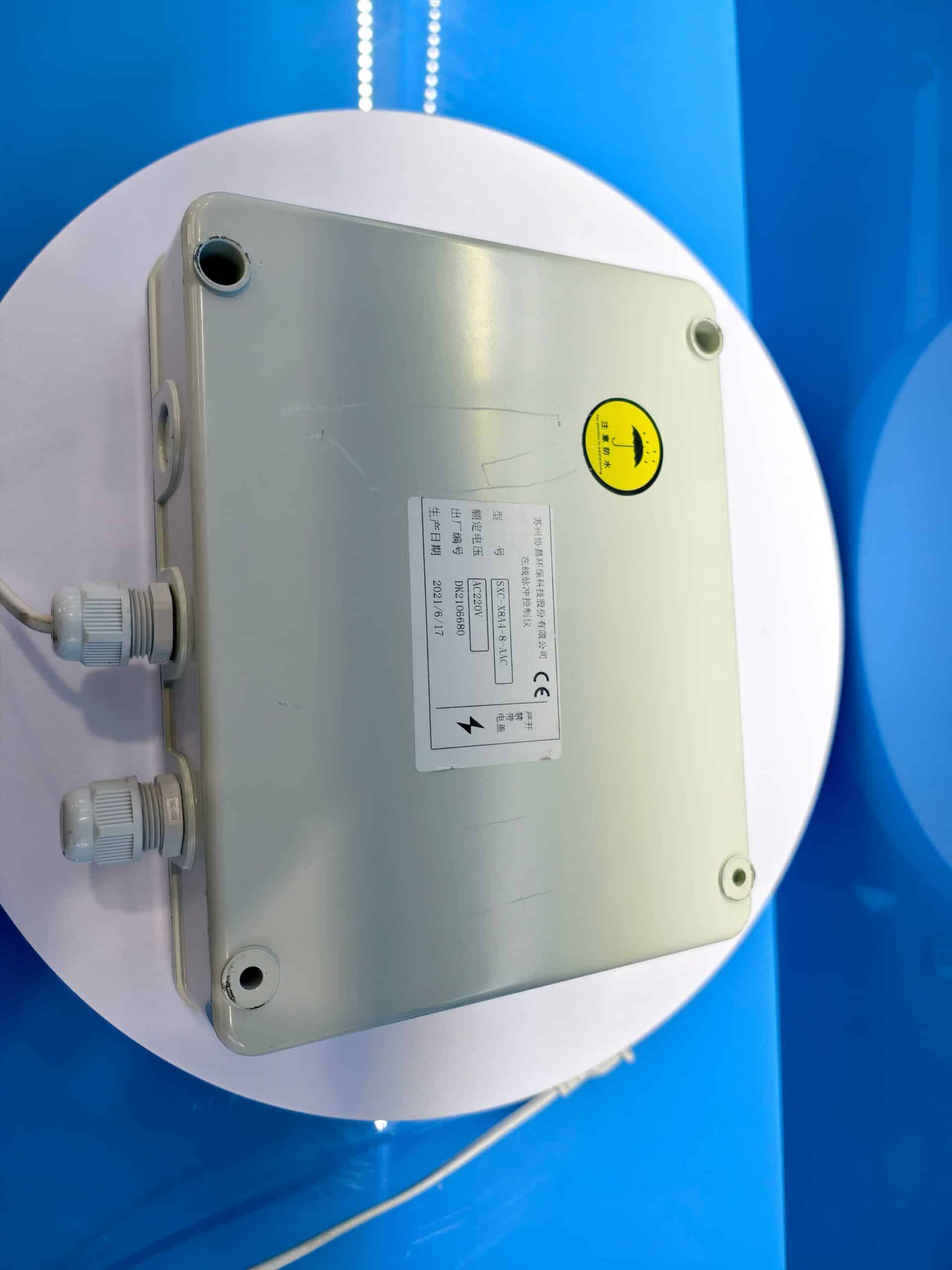

Enclosure: IP65 Rated (Dust-tight & Weatherproof).
-
Operating Limits: $-20^\circ\text{C}$ to $+50^\circ\text{C}$; Relative Humidity $\le 85\%$.
-
Vibration Resistance: Optimized for static mounting in non-violent vibration zones.
-
🏗️ Proven Application Scenarios
-
🏭 Steel & Metallurgy: Pulse jet control for EAF (Electric Arc Furnace) and sintering dust extraction.
-
🏗️ Cement & Mining: Reliable valve sequencing for high-volume crushers and clinker cooler filtration.
-
🔥 Energy & Biomass: Ash handling and fly ash recovery in coal-fired or biomass boilers.
-
🪵 Woodworking: Centralized dust collection for high-speed CNC nesting and sanding lines.
-
⚗️ Chemical Processing: Precision recovery of fine powders and pneumatic conveying filtration.
🌟 Field Advantages: The Engineer’s Choice
-
Interference Suppression: Built-in anti-noise circuitry prevents false triggering caused by nearby VFDs or heavy motors.
-
Two-Way Triggering: Supports both Standard Timing and Differential Pressure (DP) demand-cleaning (optional) to slash compressed air costs and extend bag life.
-

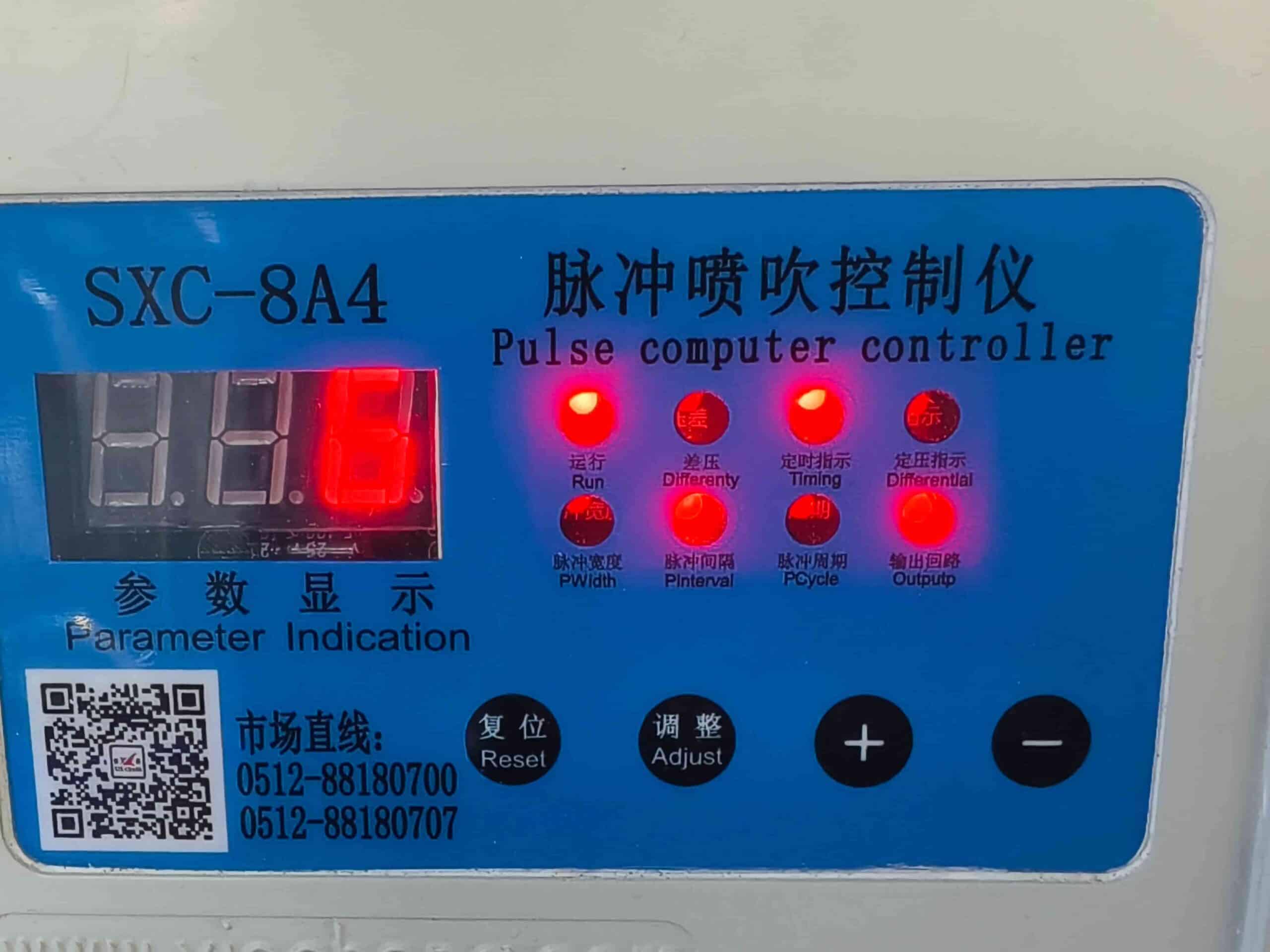

Maintenance-Friendly: The high-brightness digital display remains legible in poorly lit mechanical rooms, allowing for “blind” troubleshooting and quick parameter overrides.
