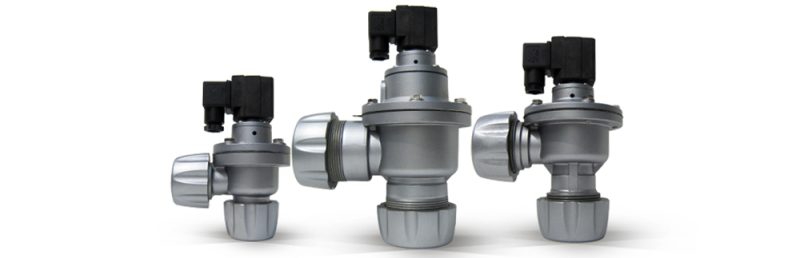

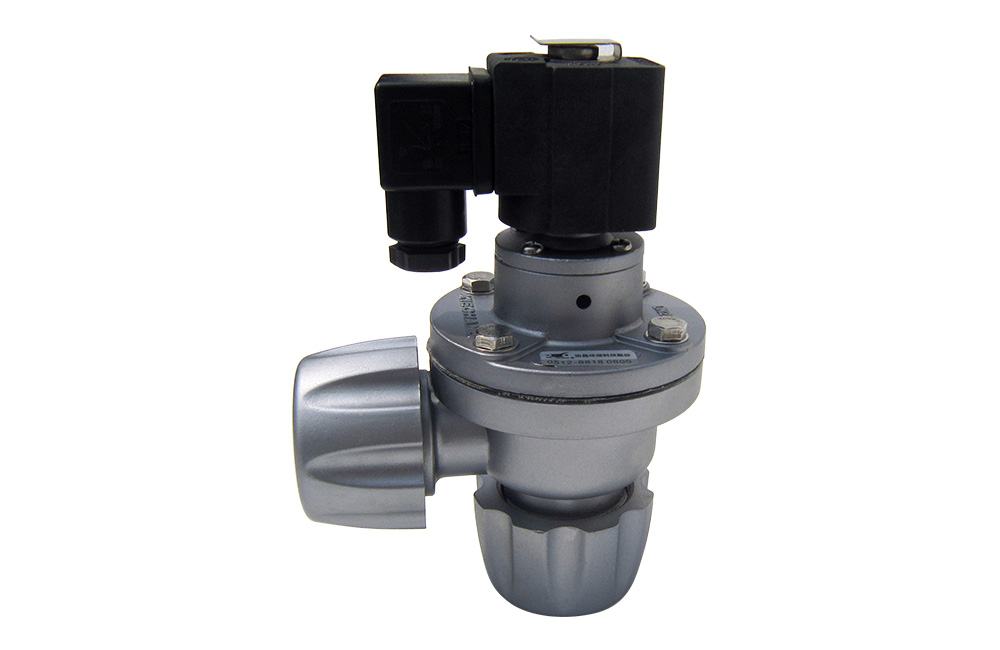

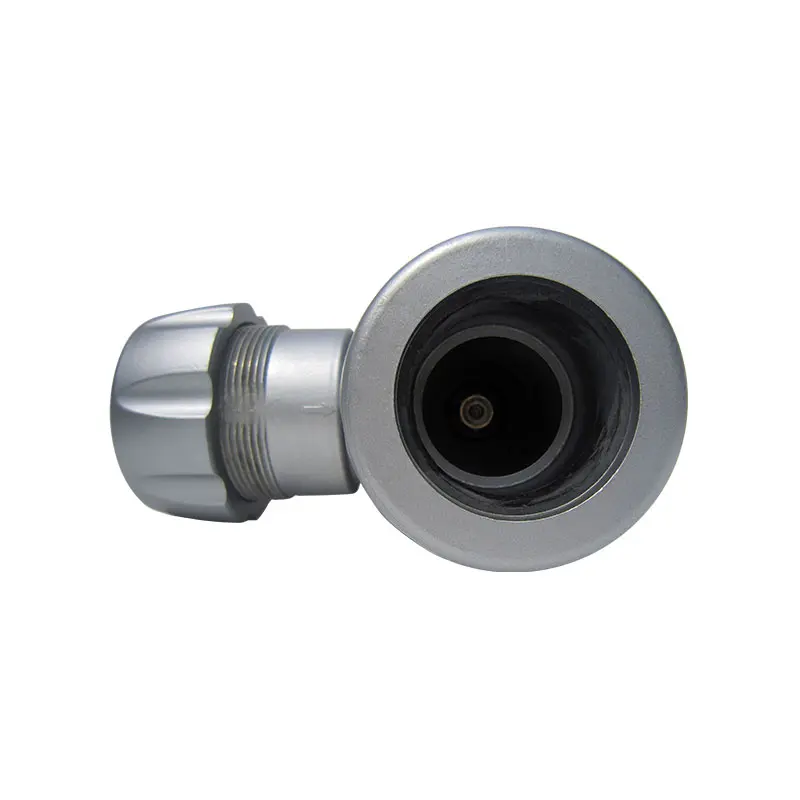

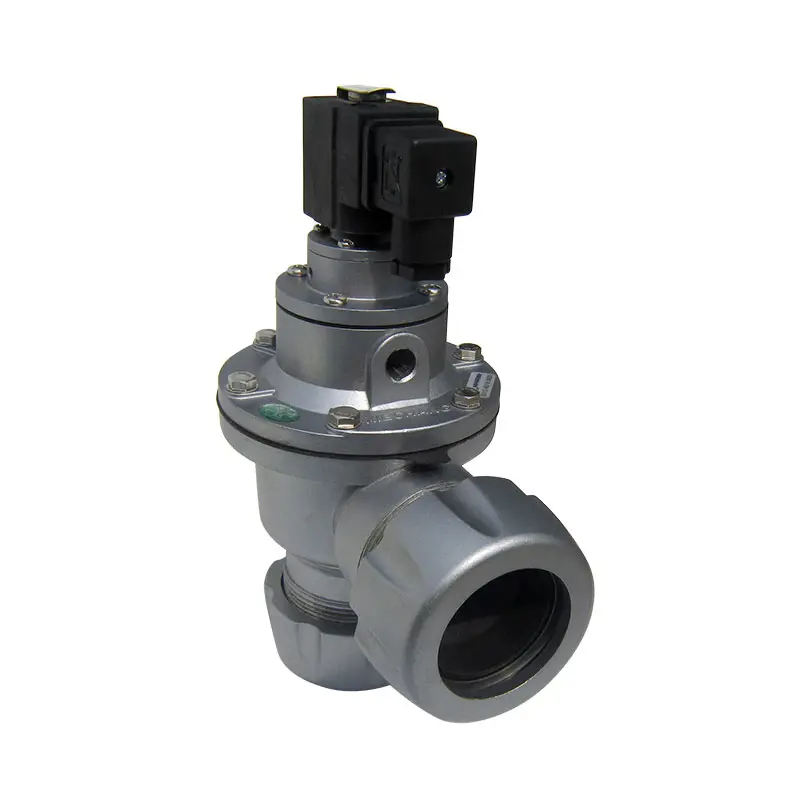

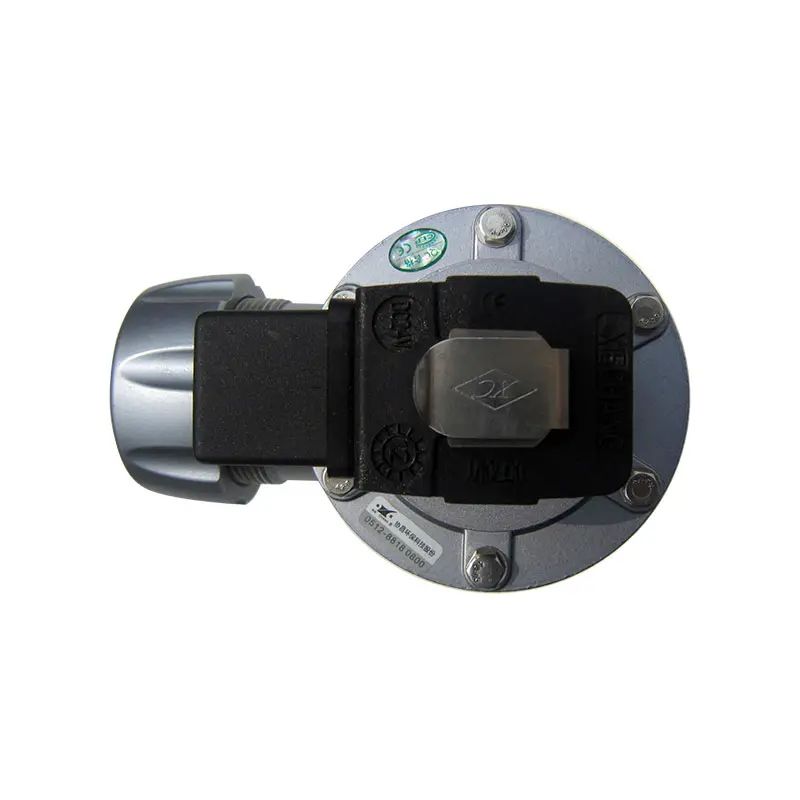

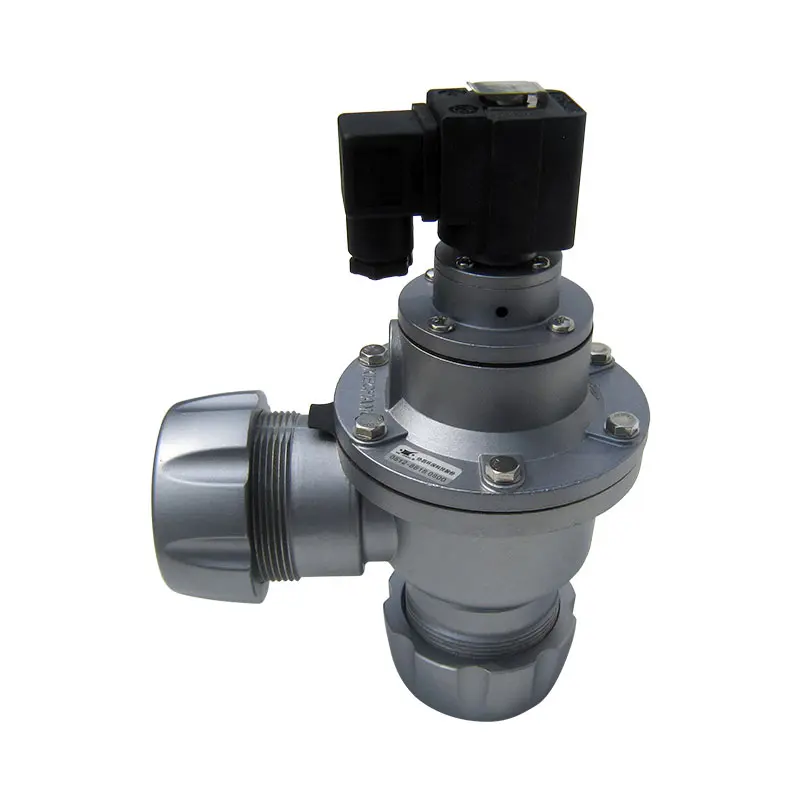

The Male Threaded Pulse Jet Valve (commonly known as the ZM Type) is a specialized variation of the traditional right-angle pulse valve. Its defining feature is the integration of external (male) threads on both the inlet and outlet ports.

This design is engineered specifically for use with bulkhead connectors (e.g., XC-XBD type) or dedicated unions. It combines the high-velocity discharge of a right-angle valve with a thread-mount system that eliminates the need for complex on-site welding.

The valve operates based on electromagnetic pilot control and air pressure differentials:

• Standby State: Compressed air enters the rear chamber. The pressure holds the diaphragm tightly against the outlet, keeping the valve closed.
• Triggering: The solenoid armature lifts, opening the bleed hole. Pressure in the rear chamber drops instantly.
• Cleaning Action: Higher pressure in the front chamber pushes the diaphragm open, releasing a high-pressure air blast into the filter bags.
• Resetting: The armature closes the bleed hole, the rear chamber re-pressurizes, and the diaphragm reseals the outlet.

• Extreme Ease of Maintenance: The ZM valve can be unscrewed and replaced in minutes via unions, significantly reducing system downtime compared to welded versions.
• High Sealing Reliability: Ensures a leak-free connection under 0.2~0.6MPa working pressures when paired with XC specialized connectors.
• Optimized Response: Maintains high sensitivity for efficient dust cake removal.
• Long Life: Equipped with heavy-duty diaphragms rated for over 1 million cycles.

• Component Dependency: Must be used with specific male-threaded fittings. Incorrect thread matching (G vs NPT) can lead to sealing failures.
• Initial Hardware Cost: The initial purchase price of the valve plus specialized unions is slightly higher than standard slip-on valves.

• Cement & Building Materials: Ideal for silo tops and cement mill baghouses.
• Power Generation: Used in biomass boilers or coal-fired power plant filtration.
• Metallurgy: Handles abrasive metal dust in high-temperature environments.
• Tight Spaces: Perfect for installations where welding tool access is limited.
