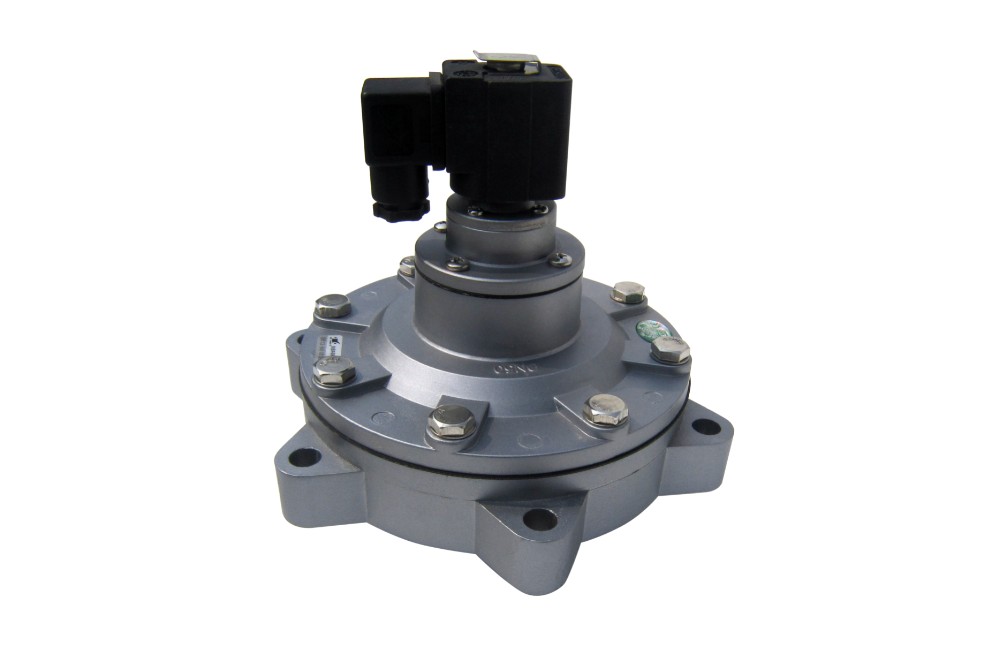

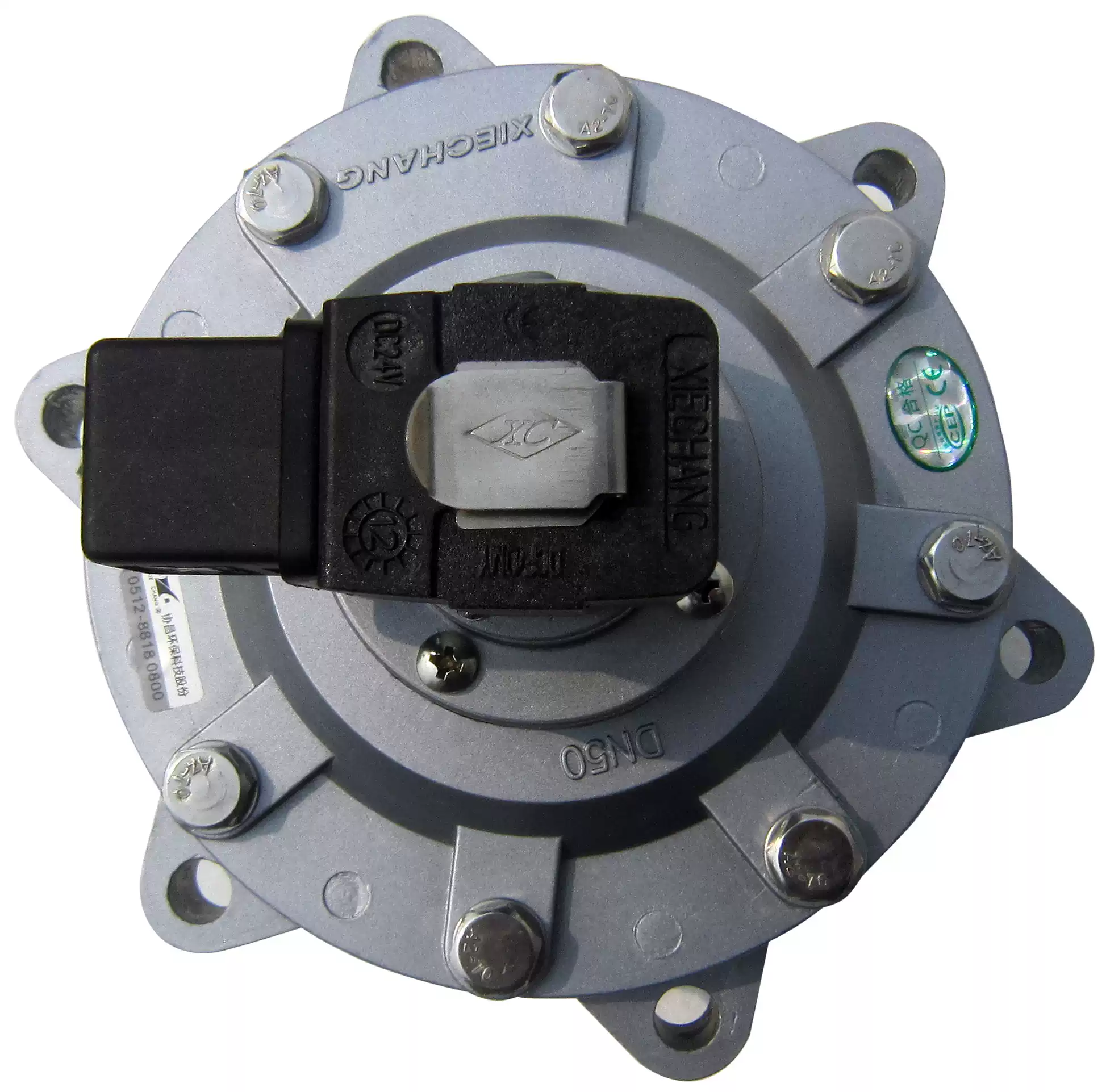

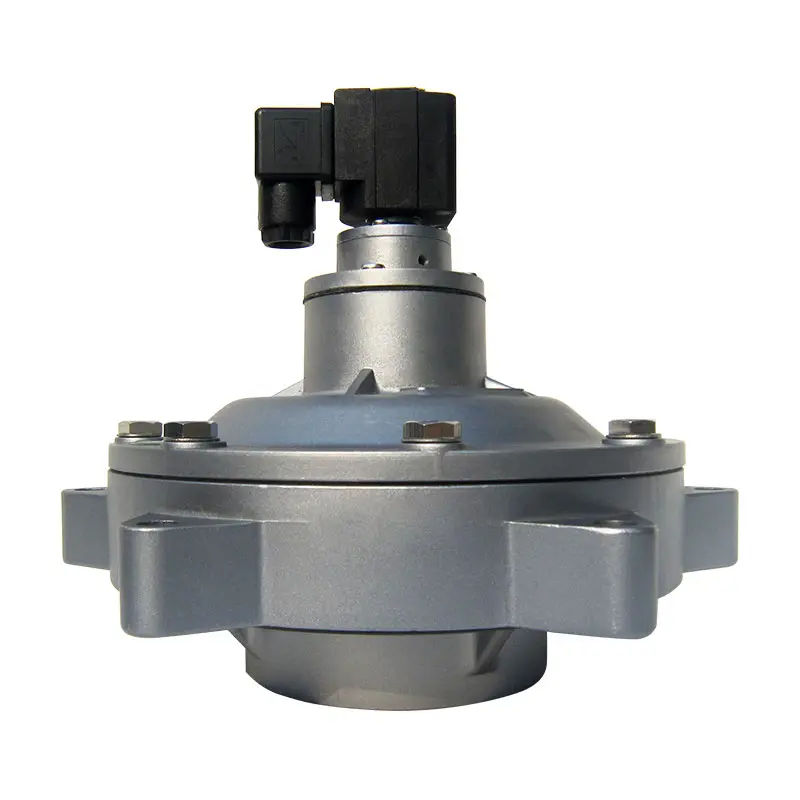

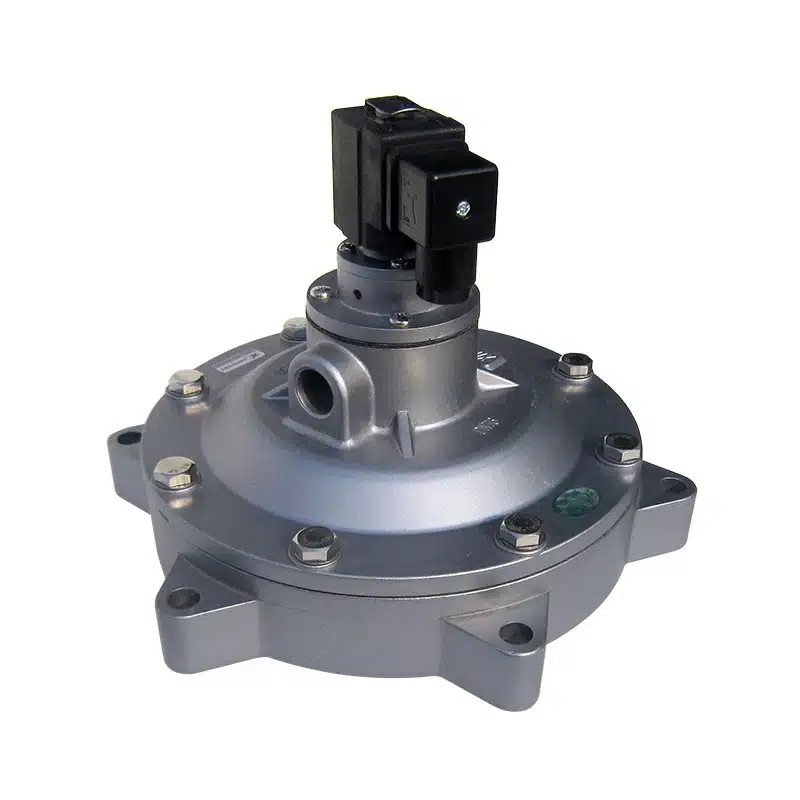

Xiechang® DCF-Y Submerged Pulse Valve: Specifications & Technical Data
The Xiechang® DCF-Y Series submerged electromagnetic pulse valve is designed for direct installation on the air manifold. Featuring an embedded structure, it provides high-volume airflow and exceptional cleaning efficiency for industrial dust collection systems.

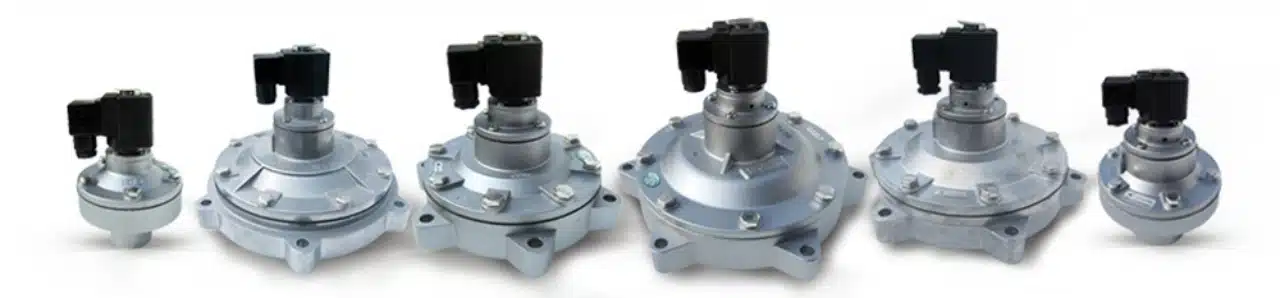

Xiechang® DCF-Y Series Submerged Pulse Valve Specifications

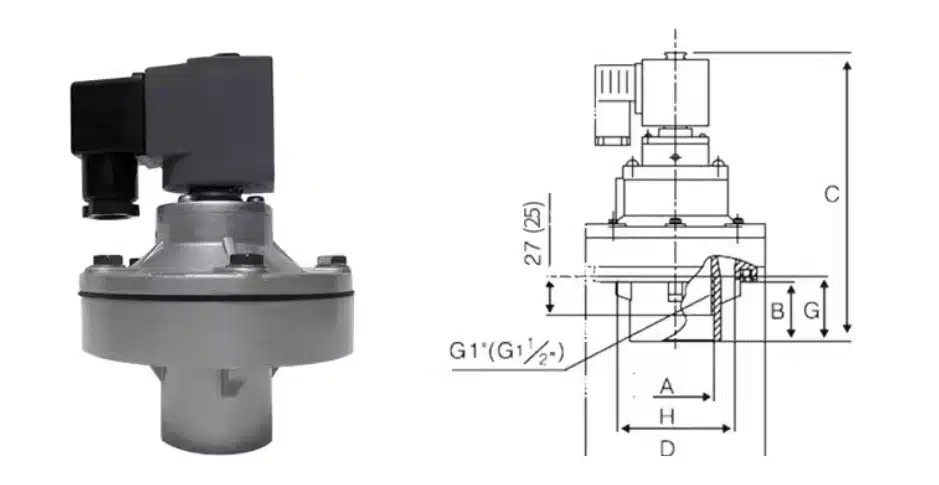

| Model No. | Valve Size (Inch) | Valve Size (Metric) | Blowpipe O.D. (mm) | Diaphragm Type |
|---|---|---|---|---|
| DCF-Y-25 | 1″ | DN25 | 25 | Single Diaphragm |
| DCF-Y-40S | 1.5″ | DN40 | 40 | Double Diaphragm |
| DCF-Y-50S | 2″ | DN50 | 50 | Double Diaphragm |
| DCF-Y-62S | 2.5″ | DN65 | 62 | Double Diaphragm |
| DCF-Y-76S | 3″ | DN80 | 76 | Double Diaphragm |
| DCF-Y-102S.B | 3.5″ | DN90 | 102 | Double Diaphragm |
| DCF-Y-102S | 4″ | DN100 | 102 | Double Diaphragm |
*Note: “Blowpipe O.D.” refers to the Outside Diameter of the connecting pipe.
Core Technical Standards
- Operating Pressure: 0.2 MPa ~ 0.6 MPa
- Operating Medium: Clean, Filtered Air
- Voltage Options: DC24V / AC220V
- Protection Class: IP65
- Diaphragm Life: Over 1 Million Cycles
Xiechang® Submerged Pulse Valve Technical Guide
1. What is a Submerged Pulse Valve?
A submerged pulse valve is installed directly inside the air manifold (gas box). This “embedded” design minimizes airflow resistance, allowing the compressed air to enter the valve instantly for maximum cleaning power.
2. Working Principle of Xiechang® Submerged Valves

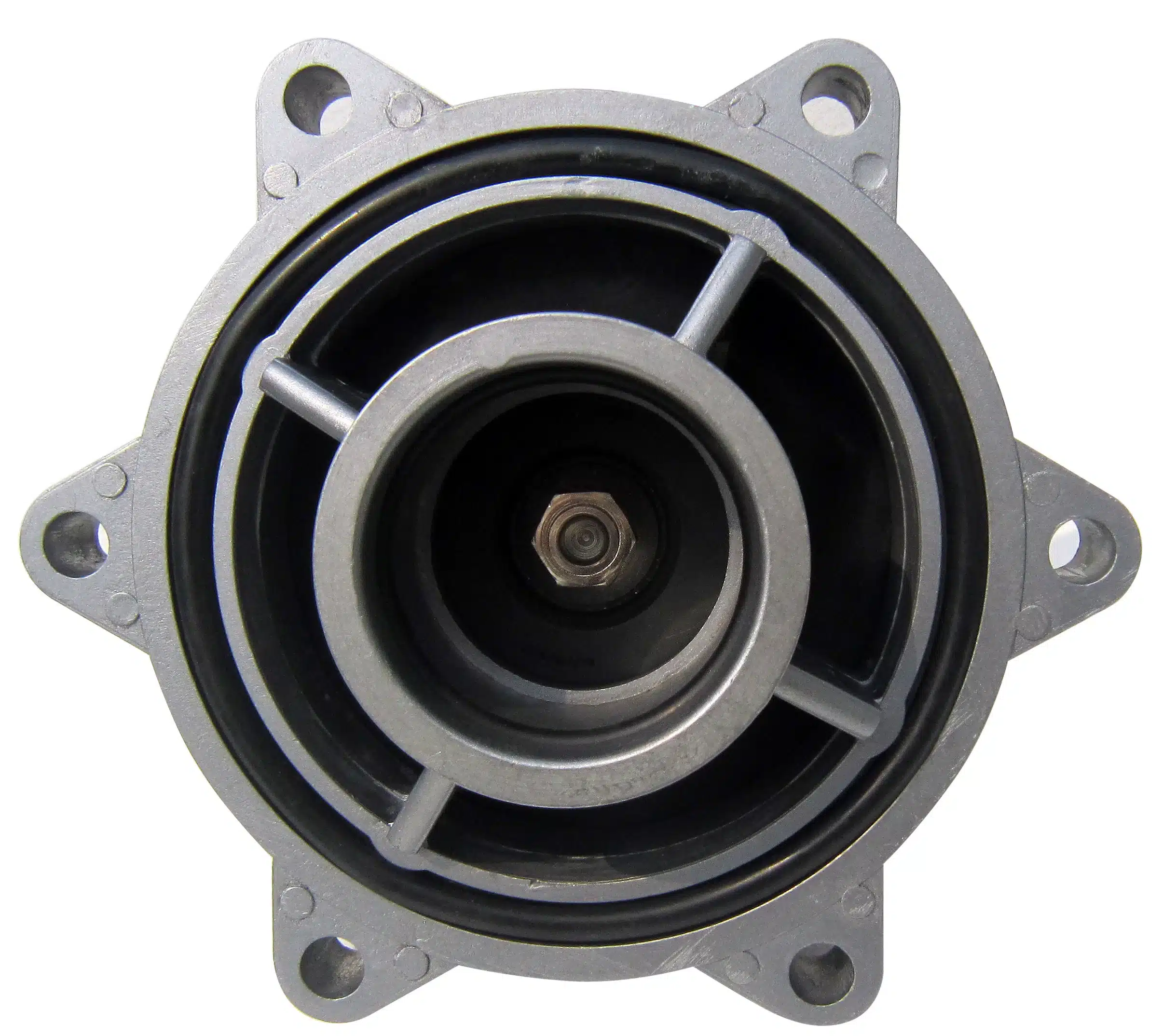

Managed by a solenoid pilot, the valve operates via pressure differentials. When signaled, air in the rear chamber exhausts, causing the diaphragm (Single for 1″, Double for others) to lift and release a high-velocity air blast into the blowpipe.
3. Drawbacks of Submerged Pulse Valves
Requires precise welding and sealing on the air manifold. In the event of a valve seat failure, maintenance often necessitates depressurizing the entire manifold system.
4. Benefits of Submerged Pulse Valves
Ideal for low-pressure jetting (0.2-0.3MPa), providing a massive airflow volume. Double diaphragm designs in larger models provide enhanced durability and faster response times for heavy-duty cleaning.
5. Typical Application Scenarios
Standard choice for large-scale baghouses in Cement Plants, Steel Mills, and Power Stations, specifically where filter bags are long or dust loads are exceptionally high.
