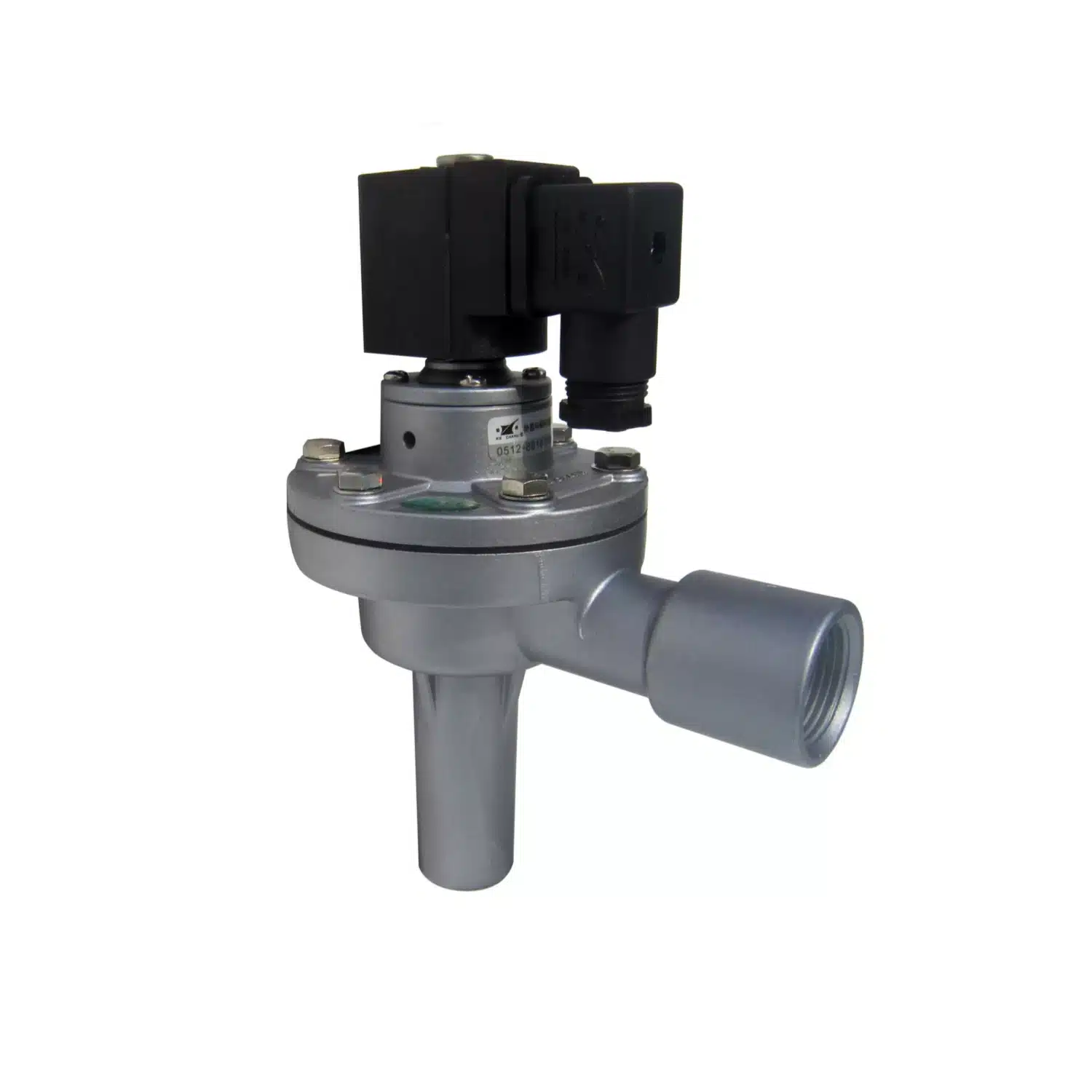

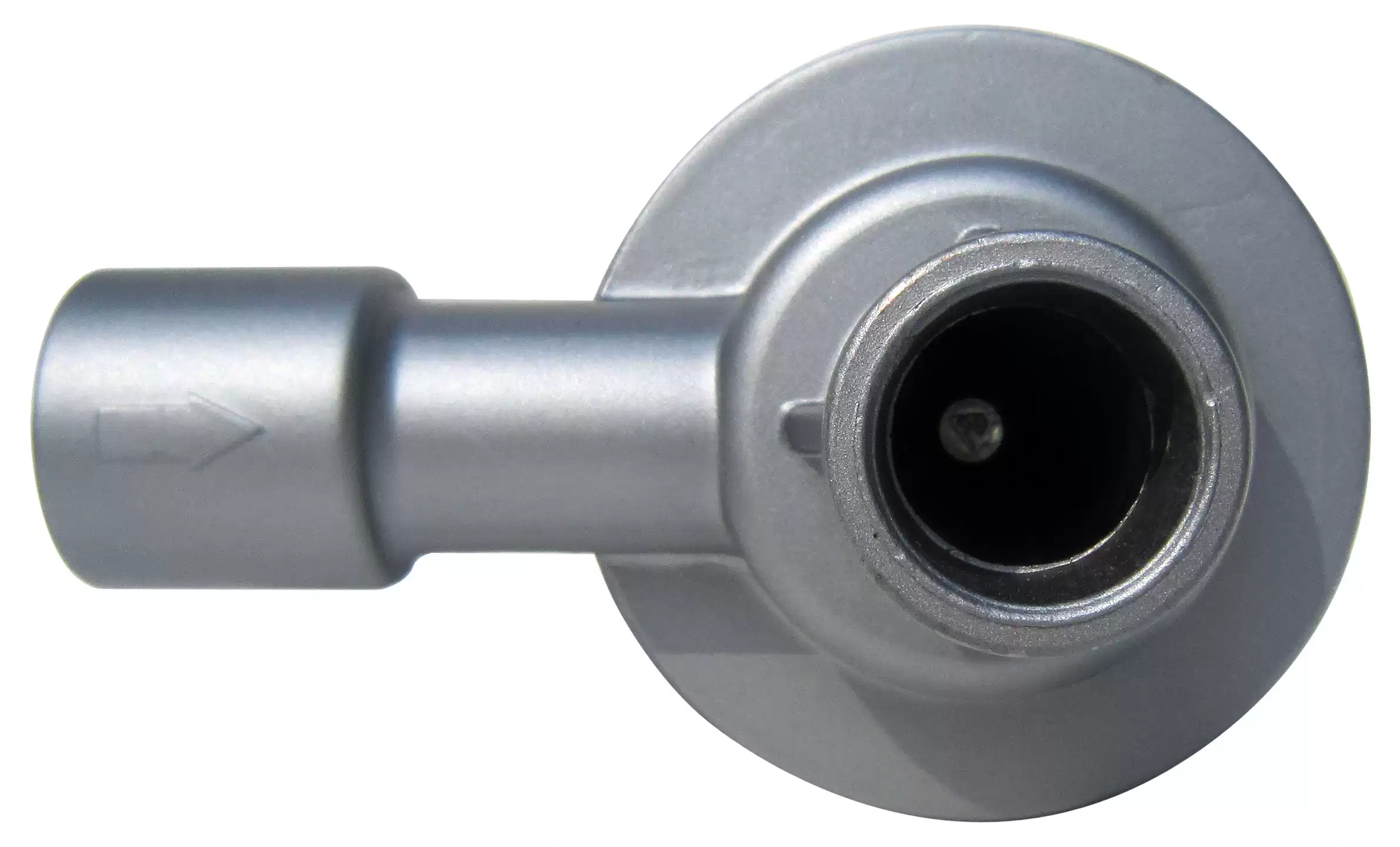

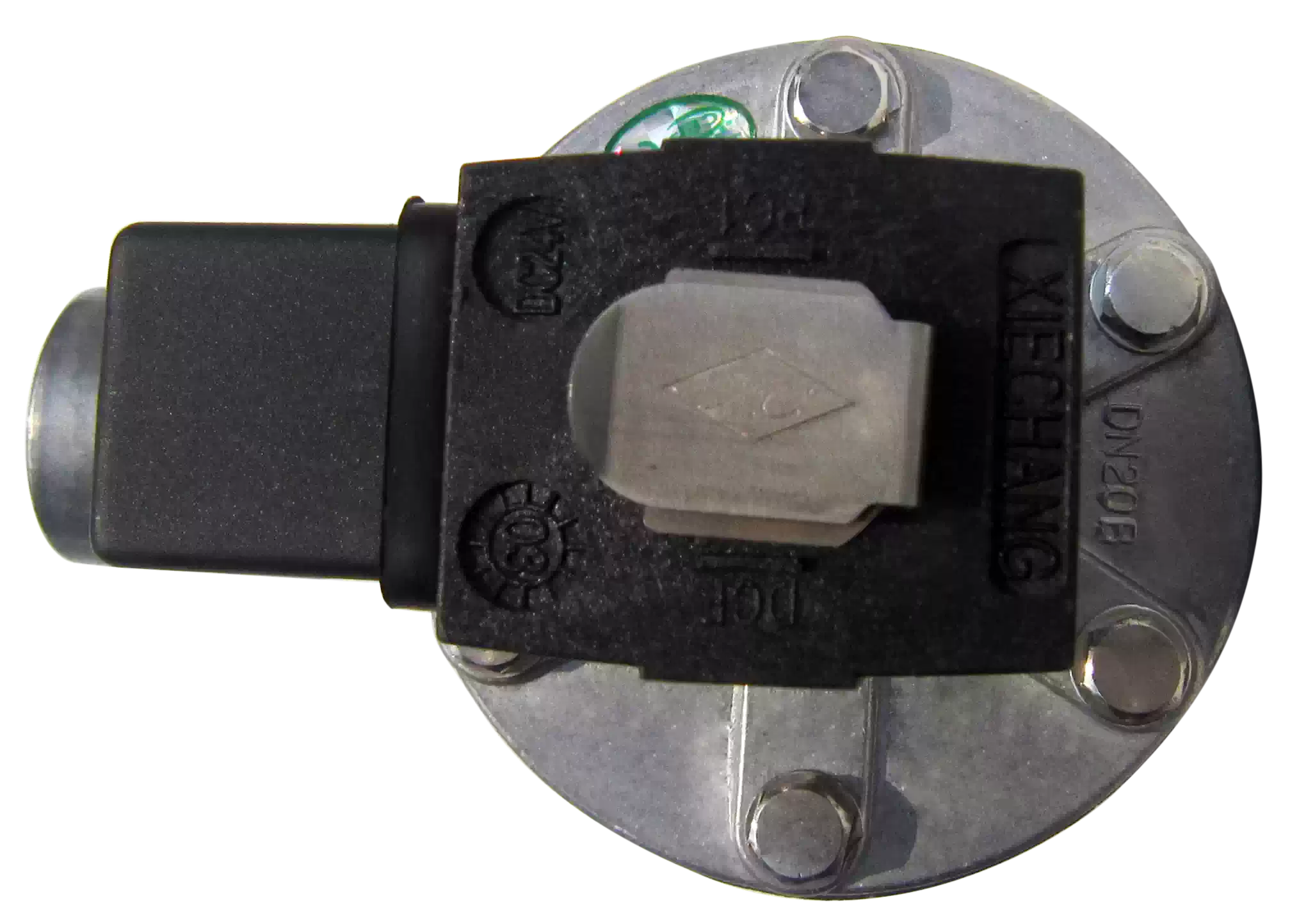

DCF-2L-B Right Angle Pulse Valve
The DCF-2L-B right-angle pulse valve is a high-performance diaphragm valve designed specifically for industrial dust collection. It ensures efficient cleaning of filter bags through rapid, high-pressure air injection.
Technical Specifications

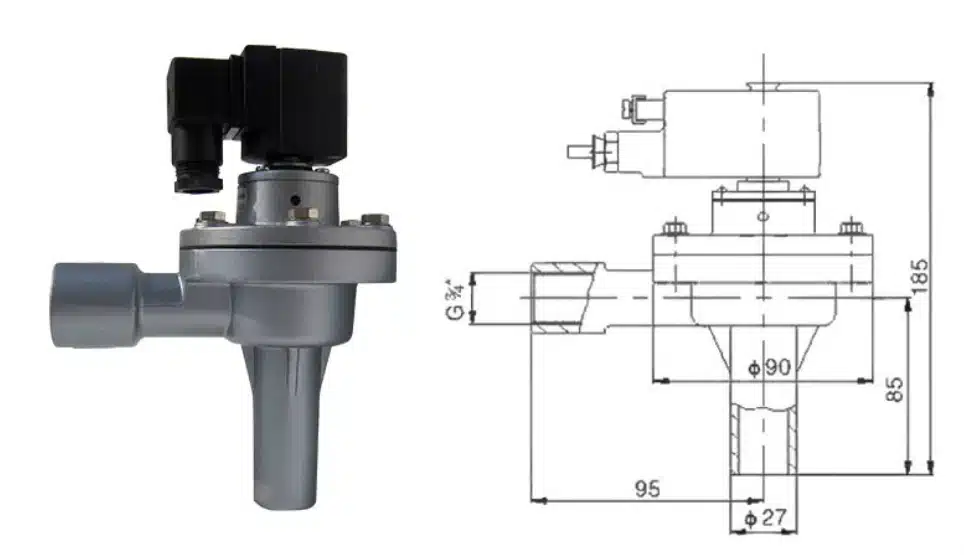

| Product Name | Right Angle Pulse Valve |
| Model Number | DCF-2L-B |
| Valve Structure | Right Angle (90°) |
| Operating Pressure | 0.4 ~ 0.6MPa |
| Voltage Options | DC24V / AC220V |
| Protection Class | IP65 |
| Diaphragm Life | Over 1 Million Cycles |
Right Angle Pulse Valve Technical Guide
1. What is a Right Angle Pulse Valve?
A right-angle pulse valve is a diaphragm-type valve where the air inlet and outlet are positioned at a 90-degree angle. It is specifically designed for pulse-jet cleaning systems in baghouse dust collectors.
2. Working Principle
The valve operates through a pressure differential. When the solenoid pilot is energized, air in the rear chamber is exhausted, causing the diaphragm to lift instantaneously for dust removal.
3. Drawbacks
Higher internal air resistance compared to submerged valves and requires precise alignment with the air manifold.
4. Benefits
High peak pressure for long filter bags and easy external maintenance without emptying the air manifold.
5. Application Scenarios
Widely used in Cement Manufacturing, Steel Production, and Thermal Power Plants for large-scale baghouse filtration.
