Watson® Submerged Baghouse Pulse Valve Technical Encyclopedia
▶1. Watson® Heritage & Xiechang® Exclusive Global Partnership
Watson Process Systems was incorporated in 1983 as a joint venture with Germany’s GVD. In 1986, Watson® took over GVD’s interests and significantly expanded its pulse jet technology. Xiechang Environmental Protection has collaborated with Watson® for many years and is now the Asia-Pacific General Agent, responsible for distributing original Watson® high-end pulse jet technology throughout the region.
▶2. Watson® Submerged Series Operating Specifications
| Working Pressure | 0.2 ~ 0.6 MPa (2 ~ 6 bar) |
|---|---|
| Medium | Clean, Dry Compressed Air |
| Working Voltage | DC24V, AC220V/50Hz ~ AC240V/60Hz |
| Protection Class | IP65 Waterproof & Dustproof |
| Environment | Temp: -40°C ~ 120°C; Humidity: ≤ 85% |

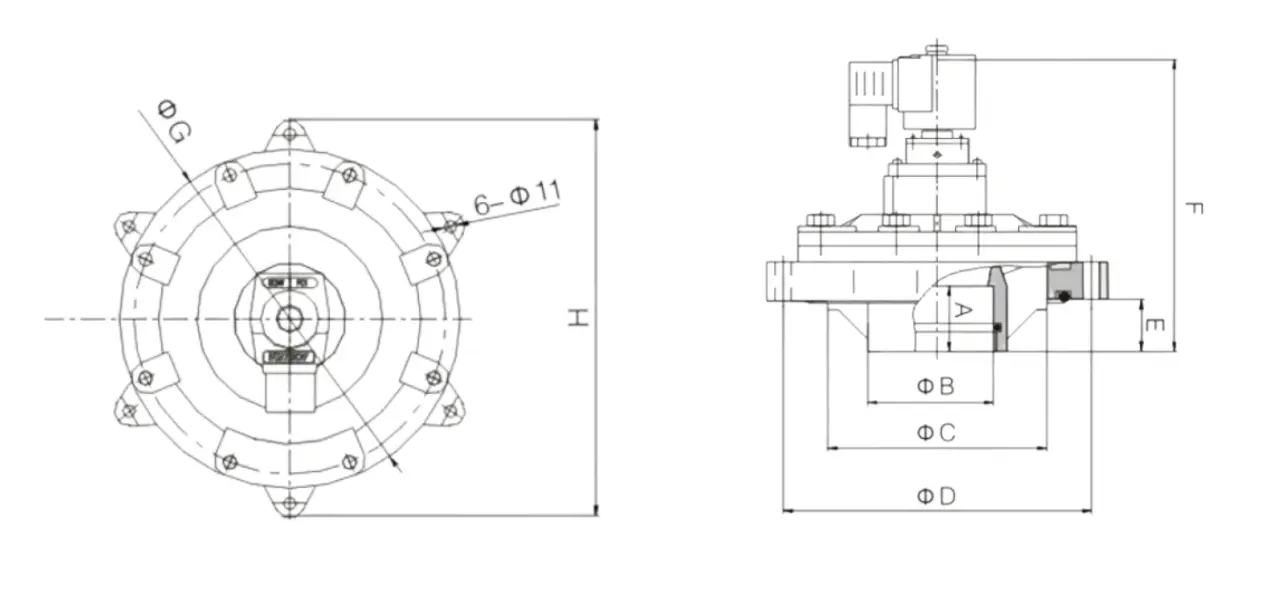

▶3. Watson® Submerged Series Selection Matrix (8 Models)
| Model No. | Size (DN) | Size (Inch) | Diaphragm |
|---|---|---|---|
| WPS-CA/EG25 | DN25 | 1″ | Single |
| WPS-CA/EG40 | DN40 | 1 1/2″ | Single |
| WPS-CA/EP50 | DN50 | 2″ | Double |
| WPS-CA/EP62 | DN65 | 2 1/2″ | Double |
| WPS-CA/EP76 | DN80 | 3″ | Double |
| WPS-CA/EP102.B | DN90 | 3.5″ | Double |
| WPS-CA/EP102 | DN100 | 4″ | Double |
| WPS-CA/EP115 | DN115 | 4 1/2″ | Double |

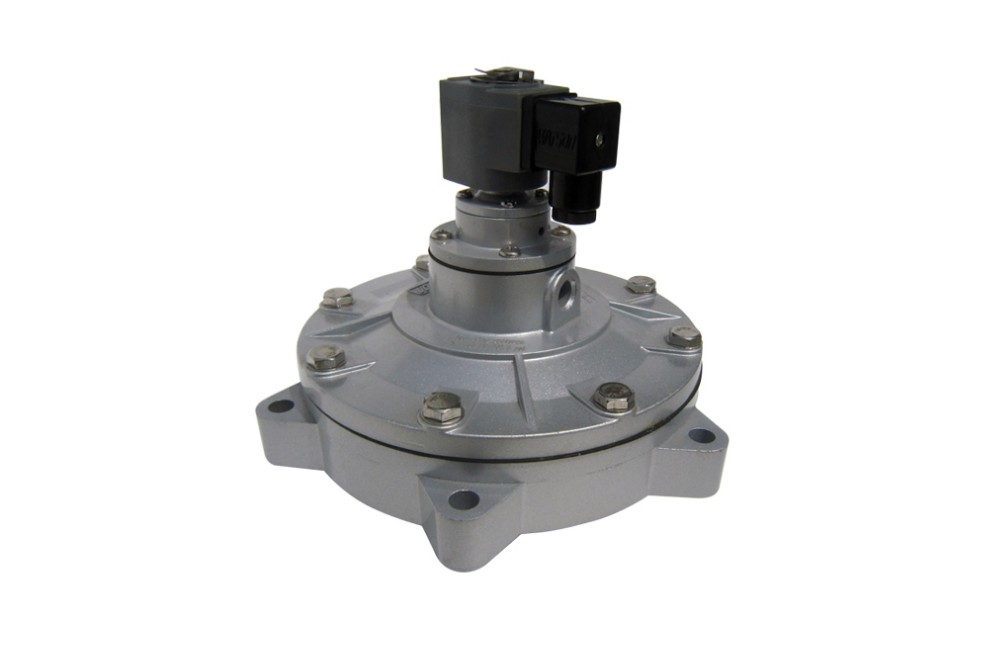

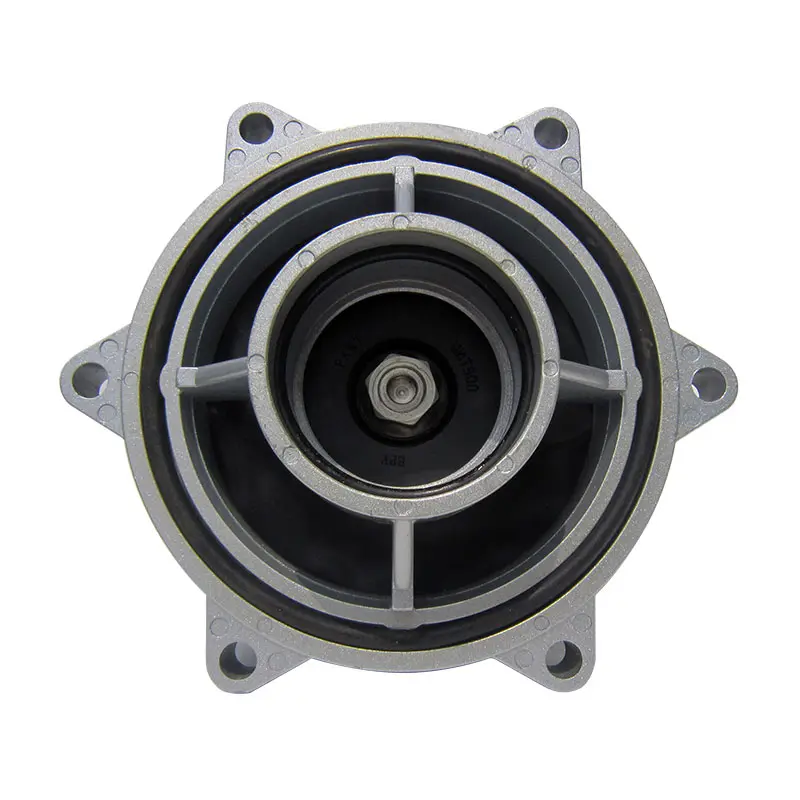

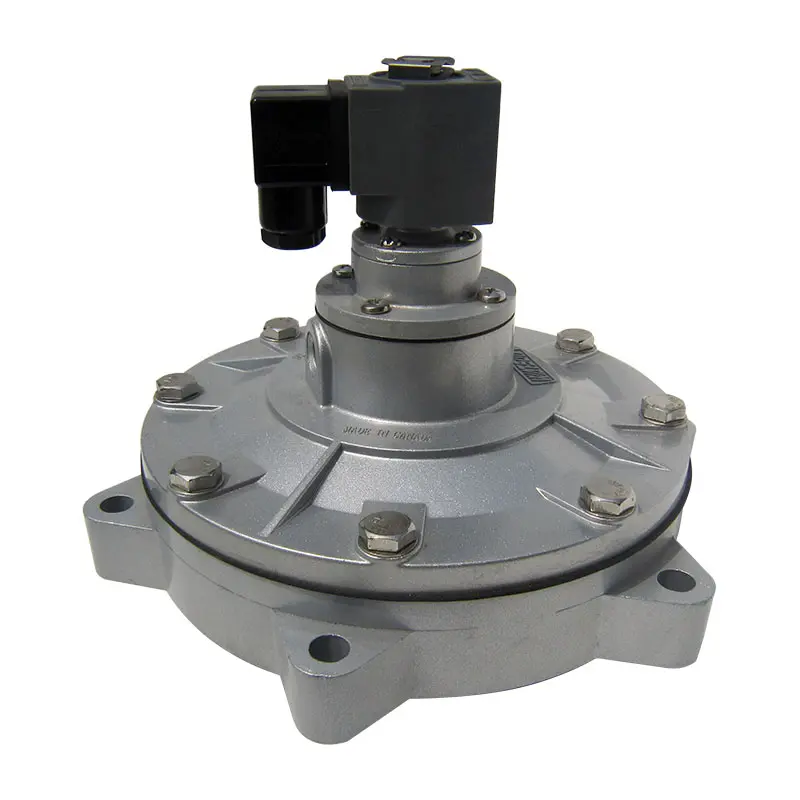

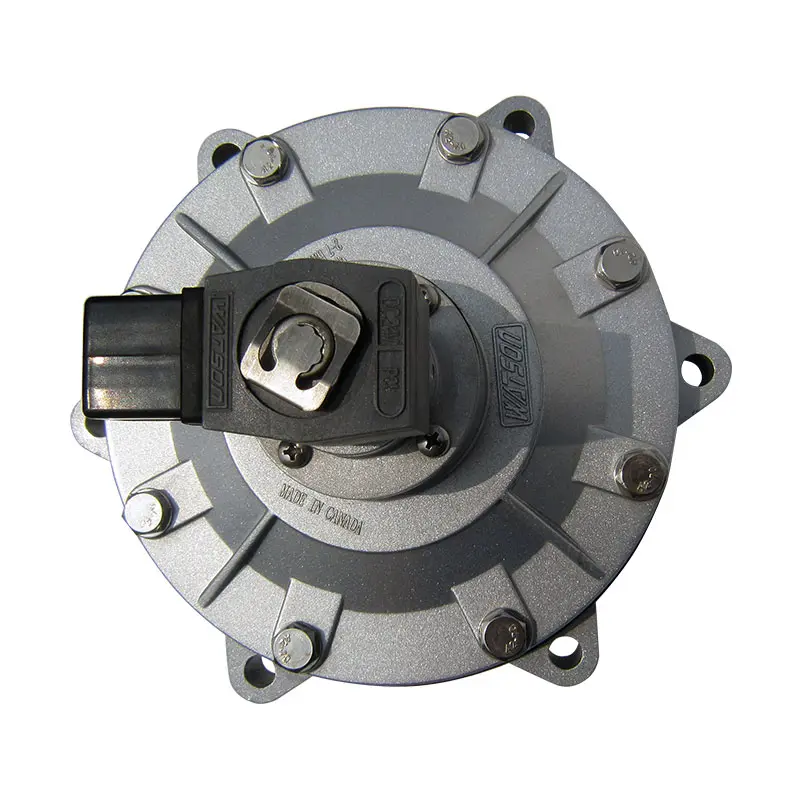

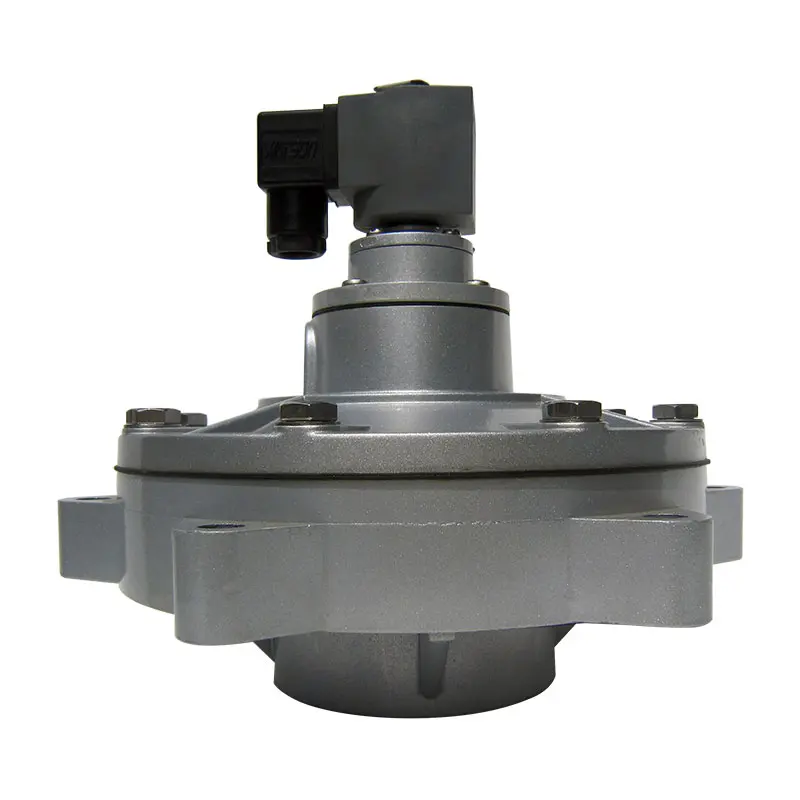

▶4. What is the Watson® Submerged Baghouse Pulse Valve?
The Watson® Submerged Baghouse Pulse Valve is a specialized cleaning component designed for embedded installation within the air header. Its design allows the valve body to be completely “submerged” in compressed air, which eliminates traditional pressure drop and delivers a high-intensity air burst directly into the filter bags.
▶5. Watson® vs. Xiechang®: The Submerged Series Difference
The primary distinction between the Watson® Submerged series and the standard Xiechang® Submerged series lies in the diaphragm quality and manufacturing cost. Watson® utilizes premium-grade diaphragms with superior fatigue resistance. While the manufacturing cost is significantly higher, Watson® valves offer a longer service life and higher reliability in high-load industrial environments.
▶6. Advantages of the Watson® Submerged Series
- Premium Reliability: The high-cost diaphragm handles millions of pulses without tearing.
- Superior Injection Force: Submerged structure maximizes air shockwaves for stubborn dust removal.
- Operational Efficiency: Lower pressure drop within the valve body saves compressed air energy.
▶7. Engineering Considerations (Limitations)
The main engineering trade-offs include a higher initial investment due to premium component costs and complex maintenance accessibility. Since the valve is inside the air header, replacement requires depressurizing the tank, making the use of high-durability Watson® diaphragms a critical necessity to avoid frequent downtime.
▶8. Core Applications for Watson® Submerged Series
Watson® Submerged Pulse Valves are the preferred choice for Steel Mills, Cement Plants, and Power Generation. They are specifically recommended for high-frequency cleaning systems where maintenance-free long-term operation is the highest priority.
