Watson® Threaded Baghouse Pulse Valve Technical Encyclopedia
▶1. Watson® Heritage & Xiechang® Asia-Pacific General Partnership
Watson Process Systems was incorporated in 1983 as a joint venture with Germany’s GVD. In 1986, Watson® took over GVD’s interests and significantly expanded its baghouse pulse valve jet technology. Xiechang Environmental Protection has collaborated with Watson® for many years and is now the Asia-Pacific General Agent, responsible for distributing original Watson® high-end threaded pulse jet technology throughout the region.
▶2. Watson® Threaded Series Operating Specifications
| Working Pressure | 0.4 ~ 0.6 MPa (4 ~ 6 bar) |
|---|---|
| Working Medium | Clean Air |
| Power Supply | DC24V, AC220V/50Hz ~ AC240V/60Hz |
| Protection Class | IP65 |
| Working Environment | Normal: -20°C~80°C / High-Temp: 55°C~180°C |
| Relative Humidity | ≤ 85% |

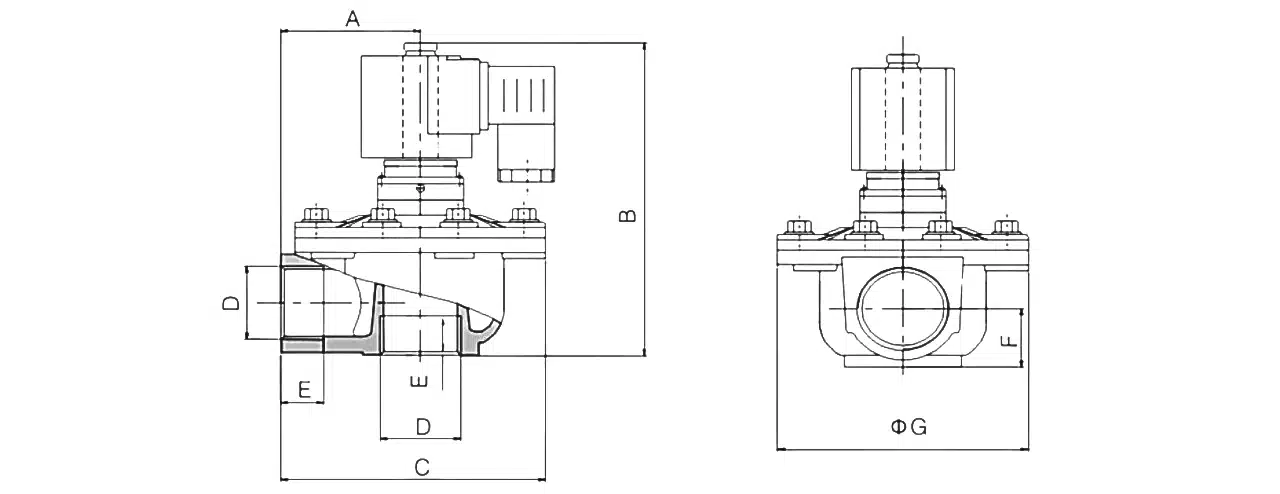

▶3. Watson® Threaded Series Selection Matrix
| Model No. | Size (Inch) | Size (DN) | Thread Spec |
|---|---|---|---|
| WPS-CA/TG20 | 3/4″ | 20 | G3/4″ |
| WPS-CA/TG25 | 1″ | 25 | G1″ |
| WPS-CA/TG40 | 1 1/2″ | 40 | G1 1/2″ |
| WPS-CA/TG50 | 2″ | 50 | G2″ |
| WPS-CA/TG62 | 2 1/2″ | 62 | G2 1/2″ |
| WPS-CA/TG76 | 3″ | 76 | G3″ |
Certificates: CE, CCC, ROHS, IP65

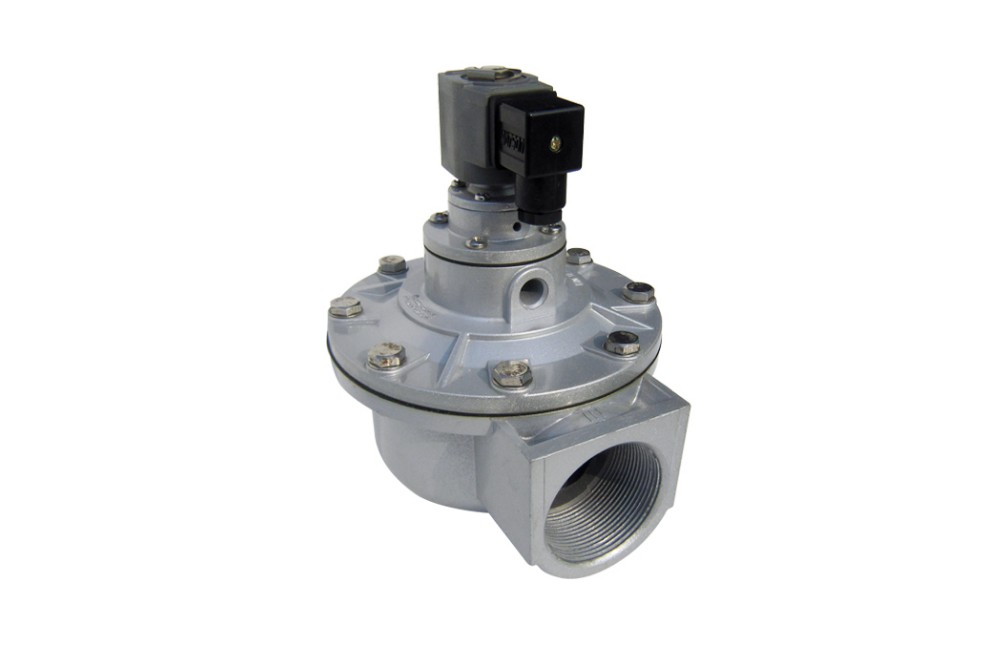

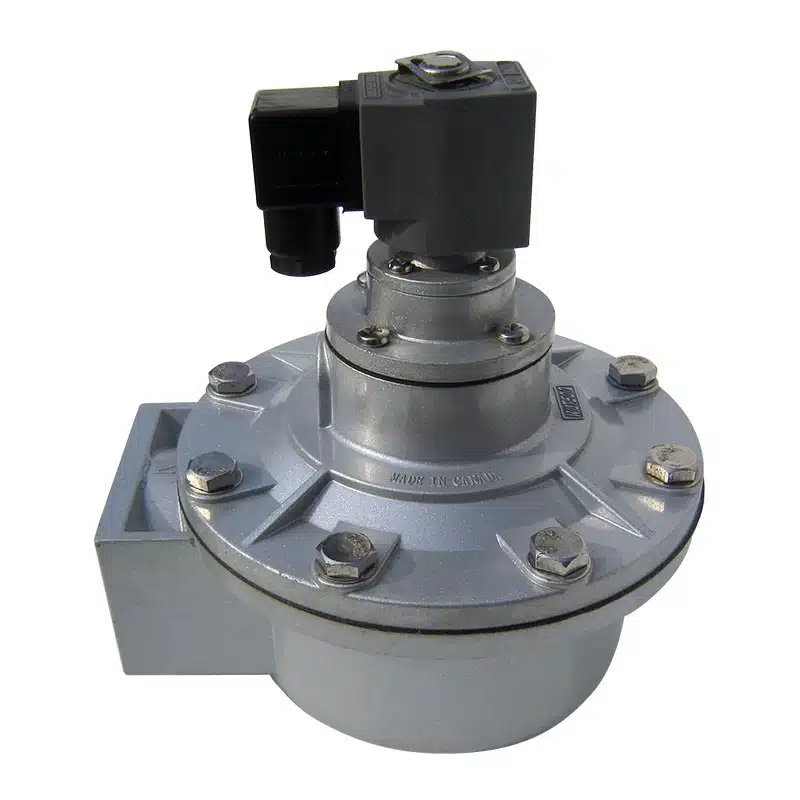

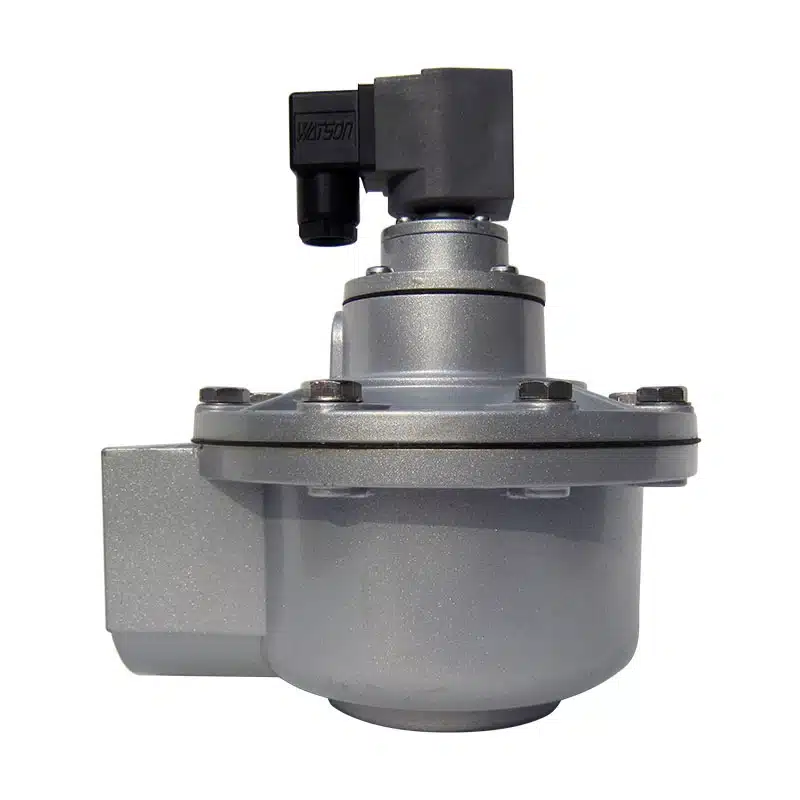

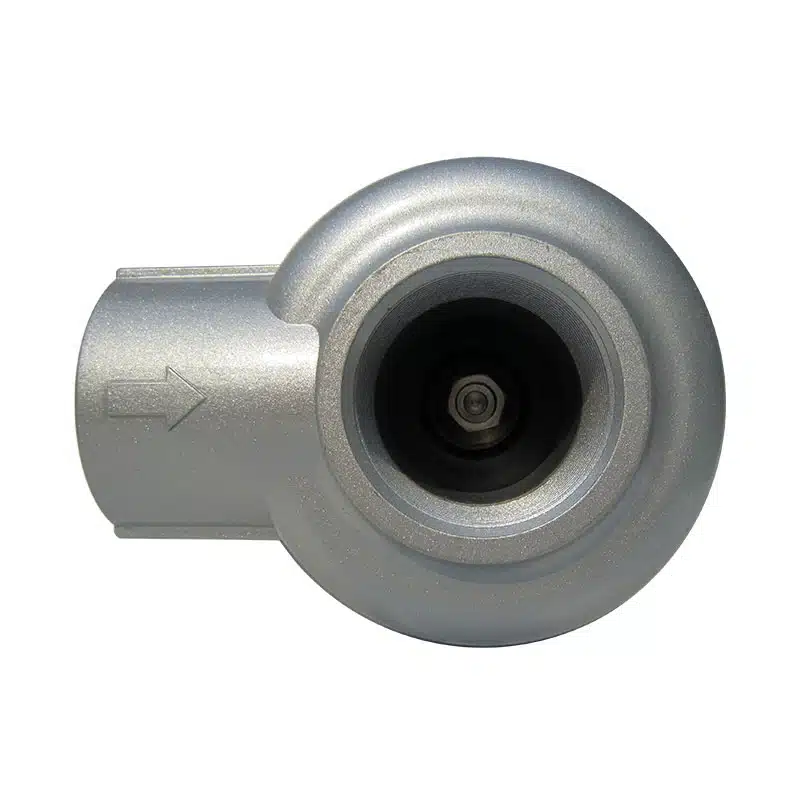

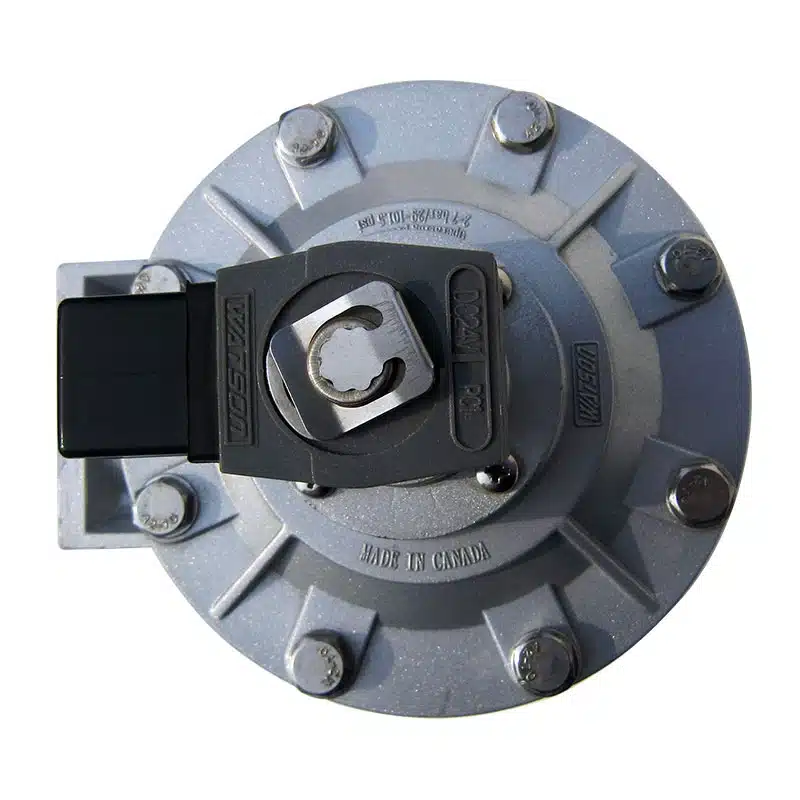

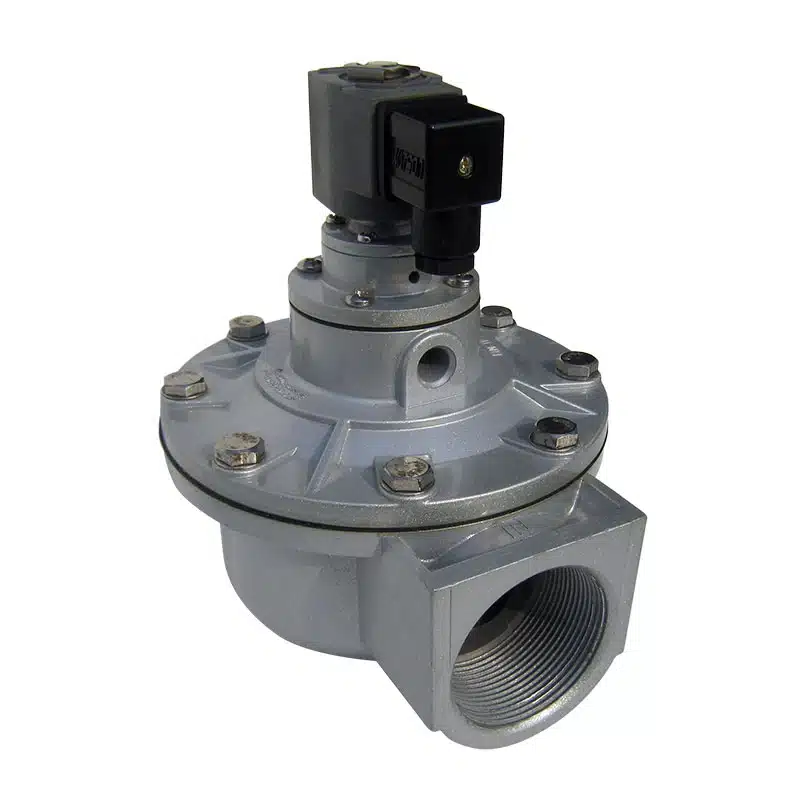

▶4. What is the Watson® Threaded Pulse Valve?
The Watson® Threaded Pulse Valve is a robust, right-angle jet valve specifically engineered for baghouse pulse valve systems. Featuring standard female threads (G or NPT), it ensures a highly stable and rigid connection to the blowpipe, designed to withstand intense pressure surges in demanding industrial filtration environments.
▶5. Watson® vs. Xiechang®: Threaded Series Difference
While the Xiechang® threaded pulse valve offers a versatile solution for standard dust collection, the Watson® version is optimized for high-cycle performance. Watson® utilizes premium high-temperature diaphragms (up to 180°C) and reinforced valve bodies that exceed the durability limits of conventional baghouse pulse valve components.
▶6. Advantages of the Watson® Threaded Series
- Standardized Fitting: Compatible with all G/NPT threaded blowpipes worldwide, ensuring seamless baghouse pulse valve replacement.
- Structural Integrity: The direct threaded connection provides maximum mechanical strength for high-pressure applications.
- Thermal Versatility: Available with specialized diaphragms capable of continuous operation in environments up to 180°C.
▶7. Engineering Considerations (Limitations)
Installation of threaded pulse valves requires pre-threaded piping, which may increase labor time during initial setup compared to coupling nut versions. Proper application of sealant (such as PTFE tape) is essential to maintain a leak-proof baghouse pulse valve seal over long-term operation.
▶8. Core Applications for Watson® Threaded Series
Watson® Threaded Pulse Valves are the industry standard for Baghouse Pulse Valve systems in high-temperature Power Plants, Smelters, and Incineration Facilities. They are the preferred choice for engineers seeking the most reliable and universally compatible connection for industrial air filtration.
